Page 10 Basic Operations
Basic MIDI Settings for the Nord Rack
If you are using the Nord Rack and controlling it from a MIDI keyboard, the Nord Rack must be set to
receive on the same MIDI channel that the keyboard transmits on. To get started, proceed as follows:
1. Set the keyboard to transmit on MIDI Channel 1.
2. Press the Program Slot A button, so that the LED above the button is lit.
3. Hold down the Shift button and press the MIDI Ch (Unison) button.
The display will now show the MIDI Channel setting for Slot A (1 – 16 or off).
4. Use the Program Up/Down buttons to select MIDI Channel 1.
5. Press Shift again to return to the normal play mode.
If you use Slot A when you play the Nord Rack (if you like, together with other Slots), this simple setting
should be sufficient in most situations - even when playing Layers and Performances, as described later
in this manual. For more information, see page 69.
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program
T
RL. SYSTEM
MIDI CH
SPECIAL
SHIFT
AUTO
D
MONO
LEGATO
UNISON
Pitch bend
FILTER
FM AMT
OSC 2
LFO 1
MORPH

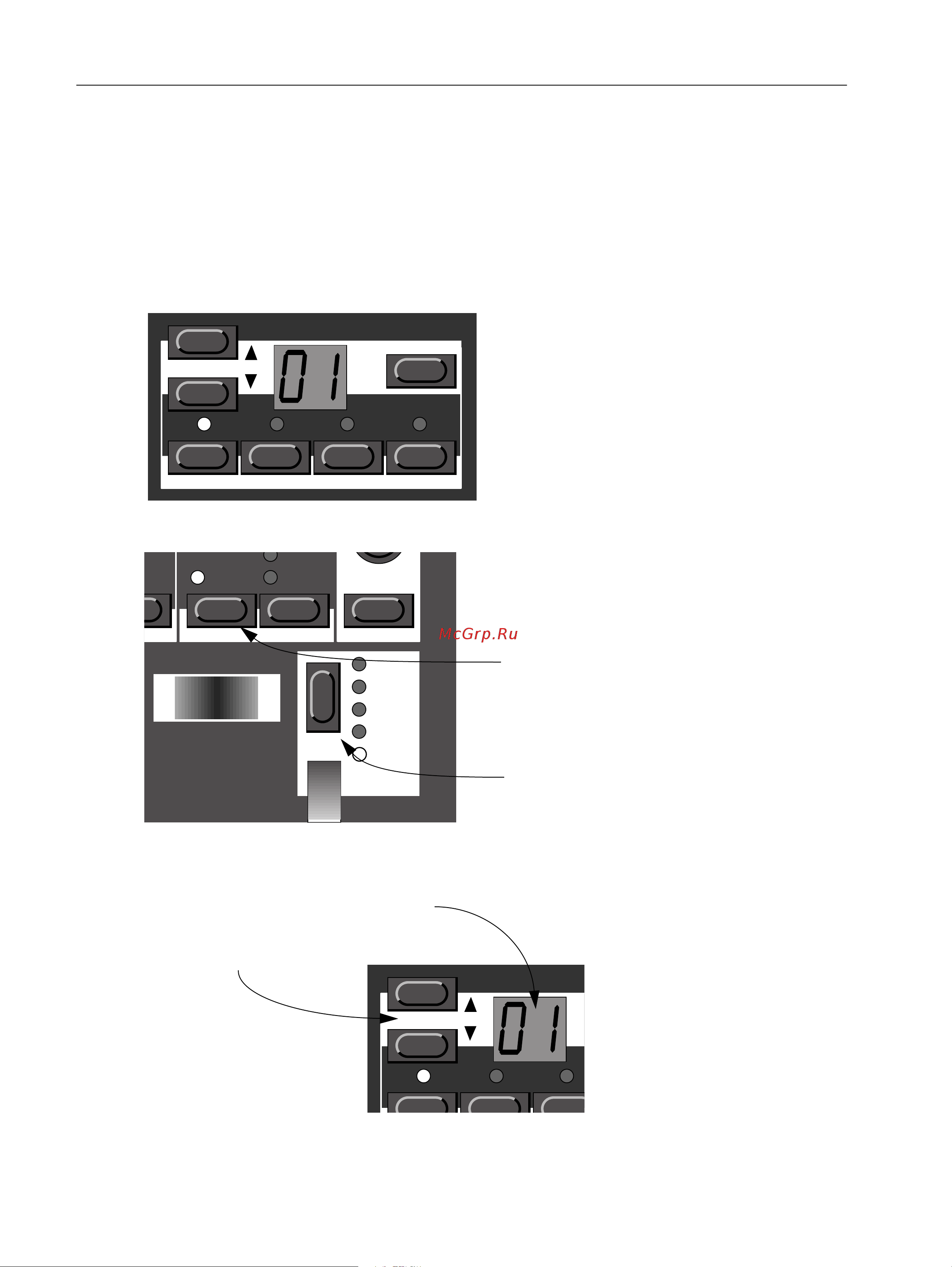

The MIDI Ch button
The Shift button
Program
AB
C
Program
The Program Up/Down
buttons
MIDI Channel 1 selected.
