Page 40 Panel Reference
The easiest way to try this out is probably to activate Sync, and adjust the Tune setting for Oscillator 2
while holding down a note.
When trying out Sync, make sure you listen to Osc2, since it is this that is affected by the changes!
Modulation of Oscillator 2 pitch: Please note you can modulate the pitch of Oscillator 2 in various ways: from
LFO 1, the Mod Env and from the Mod Wheel, for example. This can be used to create harmonically var-
ying timbres with a very characteristic sound.
Pulse Width
This setting only has any effect if Pulse wave is selected for either oscillator or both. It adjusts the pulse
width of the Pulse waves.
There’s only one Pulse Width setting, and it is common for both oscillators.
▼ When you turn the knob all the way to the left you get a perfect square wave which has a characteristic
“hollow” quality.
▼ When you turn the knob clockwise, the sounds gets progressively thinner. See page 77 for a general in-
troduction to pulse waves and pulse widths.
Pulse Width Modulation: Please note that the Pulse Width can be modulated by LFO 1. This creates a sweep-
ing “chorus-like” effect suitable for pads and string sounds.

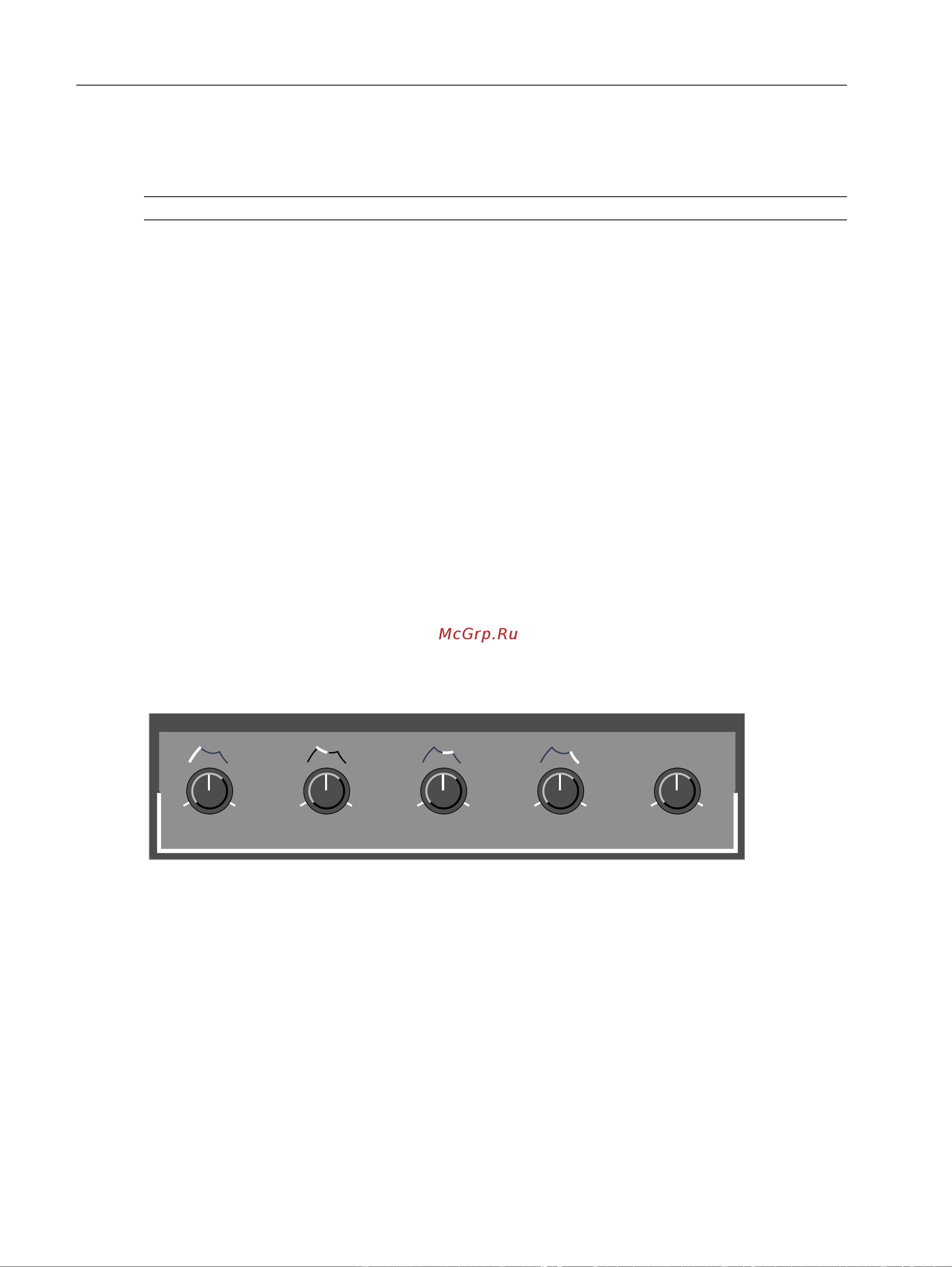

Amplifier
The Amplifier section is used to adjust the volume of the sound.
Amplifier
Attack Decay Sustain Release Gain
