Panel Reference Page 45

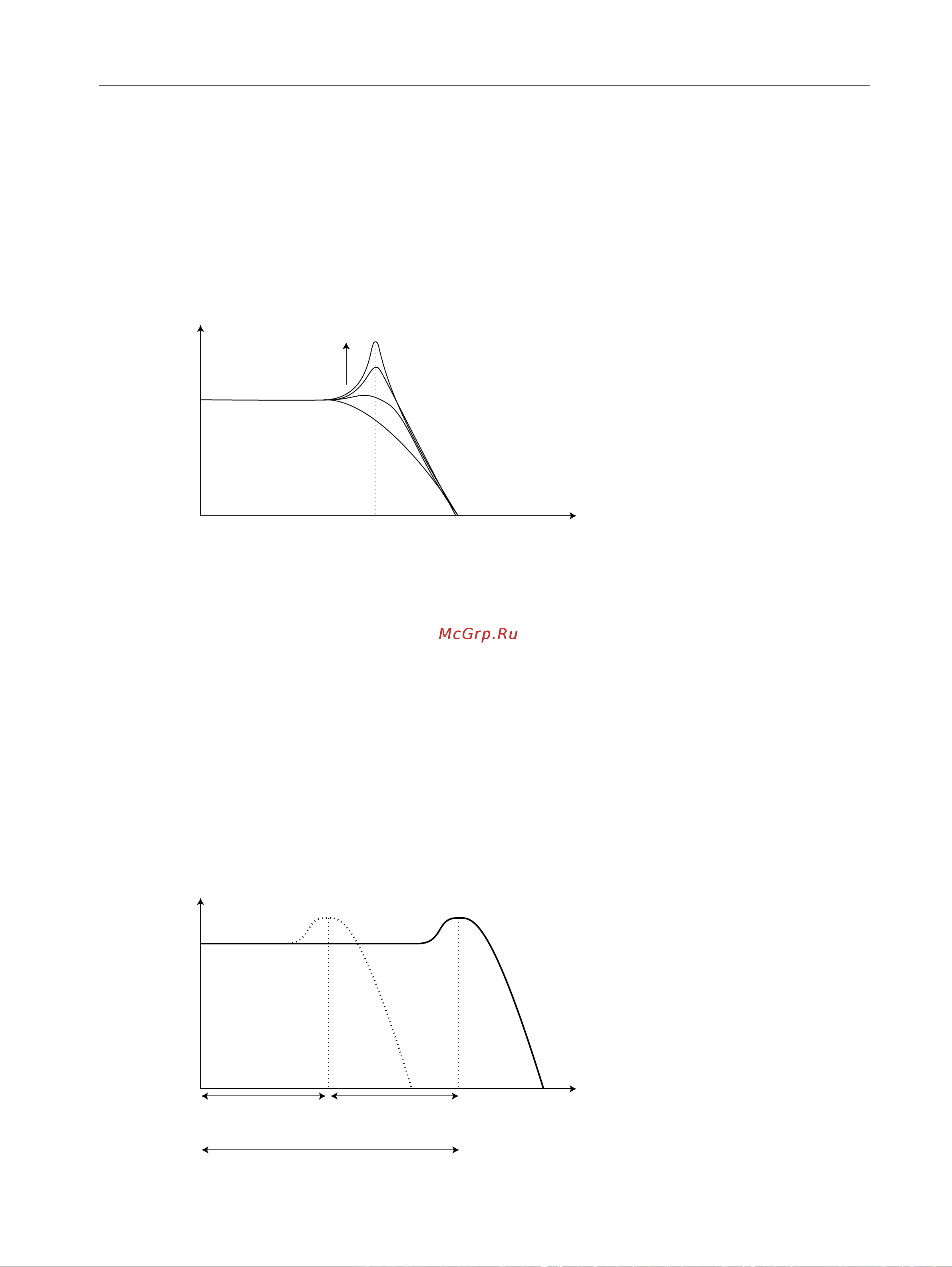

Resonance
This control is used to further adjust the characteristics of the Filter.
▼ If you are using the 12 or 24dB low pass filter, increasing resonance will emphasize frequencies around
the set Filter Frequency, making the sound thinner. Further raising the knob will make the sound reso-
nant to a point where the filter adds a ringing quality to the sound. Exactly where in the frequency spec-
trum this “ringing” appears, depends on the Filter Frequency setting.
▼ If you have the high-pass or LP+Notch filter selected, increasing Resonance will work pretty much as with
the LP filter.
▼ When you use the band-pass filter, adjusting the Resonance adjusts the width of the pass-band. When
you raise the Resonance, the band where frequencies are let through, will become narrower.
Envelope Amount
This is used to set to what degree the Envelope (see below) should affect the filter. The more you raise
this knob, the more drastic the effect will be.
This knob operates in addition to the Filter Frequency setting. This means that if you for example set the
Frequency knob half-ways, the filter will be already half-ways open the moment you press a key. The
envelope will then be used to open the filter further. Exactly how much further is determined by the En-
velope Amount setting.
Amplitude
Frequency
Filter
Frequency
Resonance
Amplitude
Frequency
Filter Frequency
Setting
Filter Envelope
Amount Setting
Total Filter Frequency
