Page 22 Editing Programs
Using Manual Mode
If you want to use the front panel to make up a sound from scratch, press the Manual button. This leaves
you with exactly the sound that the knobs and buttons on the panel indicate (just as if the Nord Lead was
an old non-programmable instrument).
When you press the Manual button, the instrument only plays one Program, layering is not possible.
Customizing Manual Mode
When you press Manual mode, the button functions (waveform select, modulation destinations etc.) will
be set to some default values, for a basic sound. However, if you would like Manual mode to be different
the next time you turn on power, proceed as follows:
1. Enter manual mode.
2. Set all button functions as you want them.
3. Press Store twice.
PERF. MODE
Master
level
Velocity / morph
MANUAL
ACTIVE
CLEAR
SET

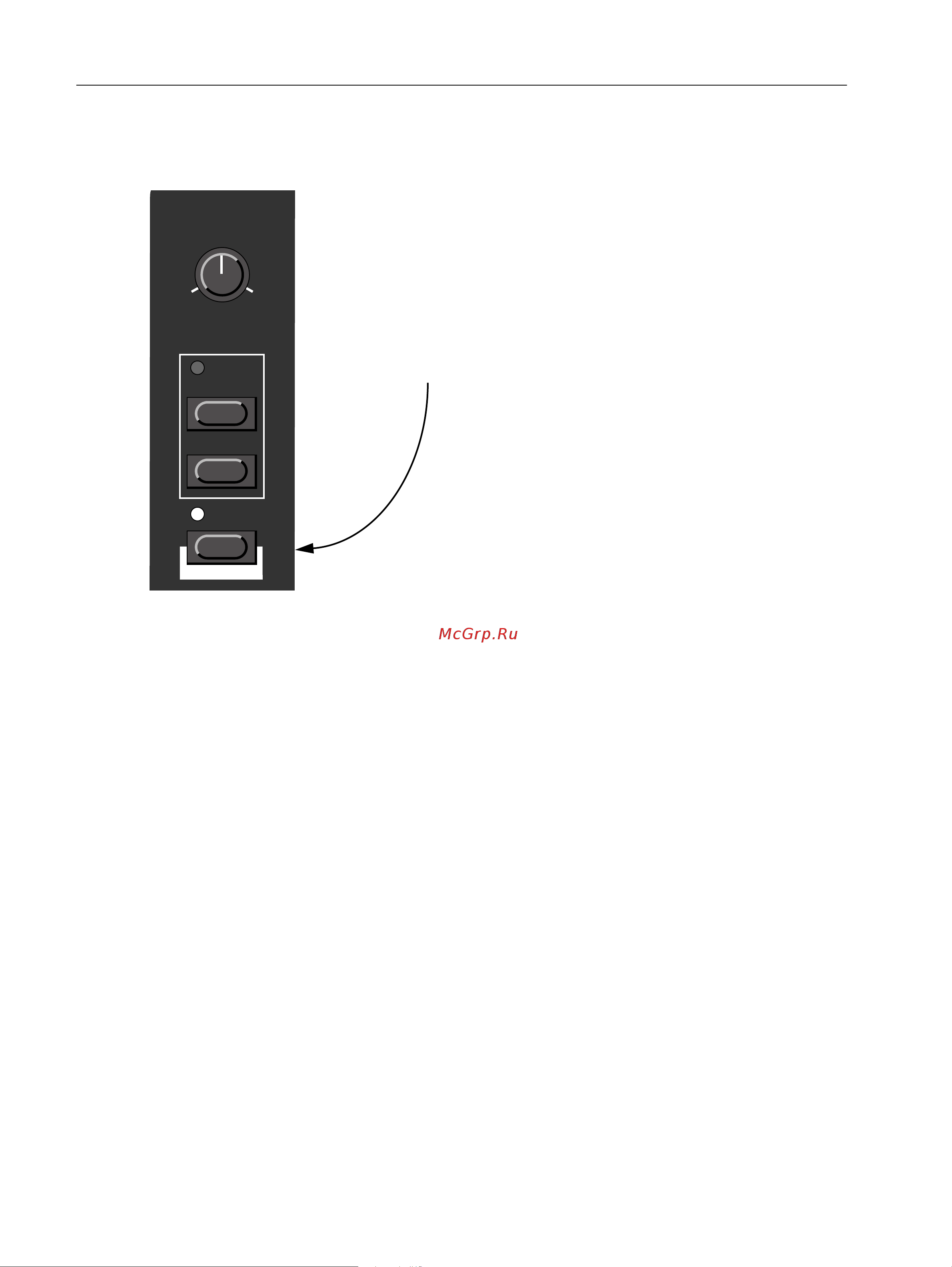

The Manual button.
