Page 38 Panel Reference

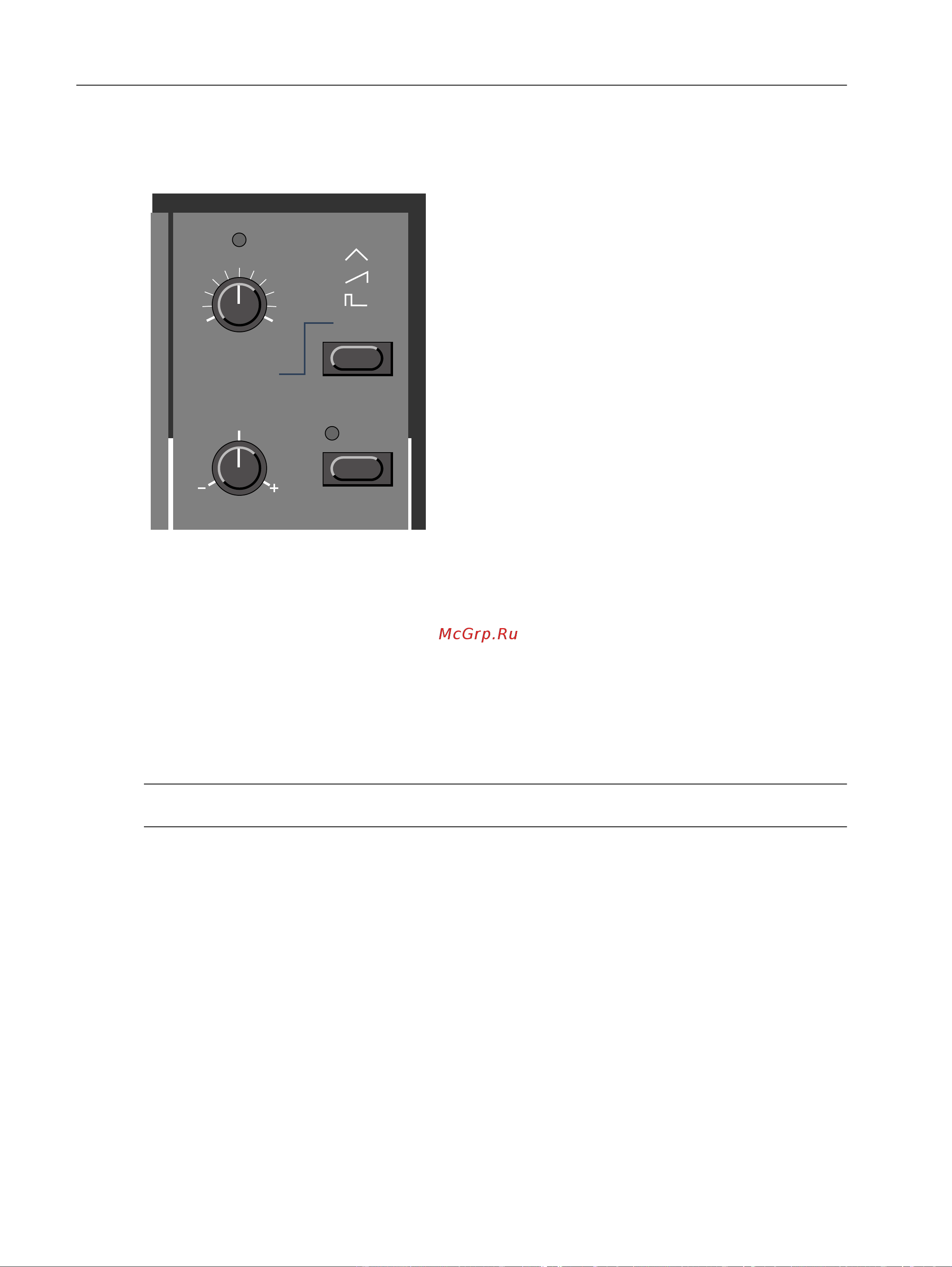

Oscillator 2
Waveform
The first three waveform alternatives for Oscillator 2 are identical to those of Oscillator 1, see above. But
Oscillator 2 has one more waveform alternative:
Noise and Noise Color: With Noise selected, Oscillator 2 produces noise rather than a pitched waveform.
The exact color (frequency contents) of the noise can be adjusted with the Oscillator 2 Tune knob.
The further you turn the knob clockwise, the brighter the noise will be. All the way to the right, its fre-
quency characteristics is very close to that of white noise (where all frequencies are represented with
equal energy).
Please note that the sound of the noise is affected by the filter setting (as all other sound from the Nord
Lead). If the filter frequency is turned down, adjusting Noise color might not have the expected effect.
Semitones
This setting is used to adjust the tuning of Oscillator 2, relative to Oscillator 1. The setting is in semitone
steps. The range is from 5 octaves below Oscillator 1, to 5 octaves above Oscillator 1. However, the full
range may not be available, depending on the Oct Shift setting (see page 54).
To aid you in setting the value, the LED above the knob lights up when the tuning is in perfect octaves.
Fine Tune
This parameter is for tuning Oscillator 2, just as the Tune control is. The difference is that this parameter
operates within one semitone.
If you set the two oscillators to equal volume (see Balance below), make sure Sync is turned off, set the
two oscillators to the same Tune value, and raise or lower the Fine Tune Parameter slightly, the slight
difference in Pitch will make the sound “richer”.
▼ The LED above the Semitone knob will flash briefly when you set Fine Tune to 0.
Noise colour
0
–48
–36
–24
–12 +12
+24
+36
+48
0
–60 +60
Osc 2
NOISE
Waveform
Fine tune
Semitones
KBD TRACK
