Page 34 Performances
2. If you want to select another Bank (A to L), hold down Shift and press the Up and Down buttons.
3. To select a Performance in the Bank use the Up and Down buttons.
The Performance is instantly loaded and you can try it out.
You can also select Performances via MIDI, see page 68.
Please note that selecting a new Performance changes a lot of parameters, including MIDI Channels and
Special modes for each Program slot. This might lead to silent sounds!
Editing the Performance
Selecting Programs
To replace a Program in a Performance, proceed as follows:
1. Hold down the desired slot button (A to D).
The displays shows which Program was used for this slot, when the Performance was created.
2. While holding down the button, select a Program for the slot, just as you would in “non-Performance” mode.
See page 11.
Program
ABCD
STORE
Program
SHIFT
FILTER
FM AMT
OSC 2
LFO 1
MORPH

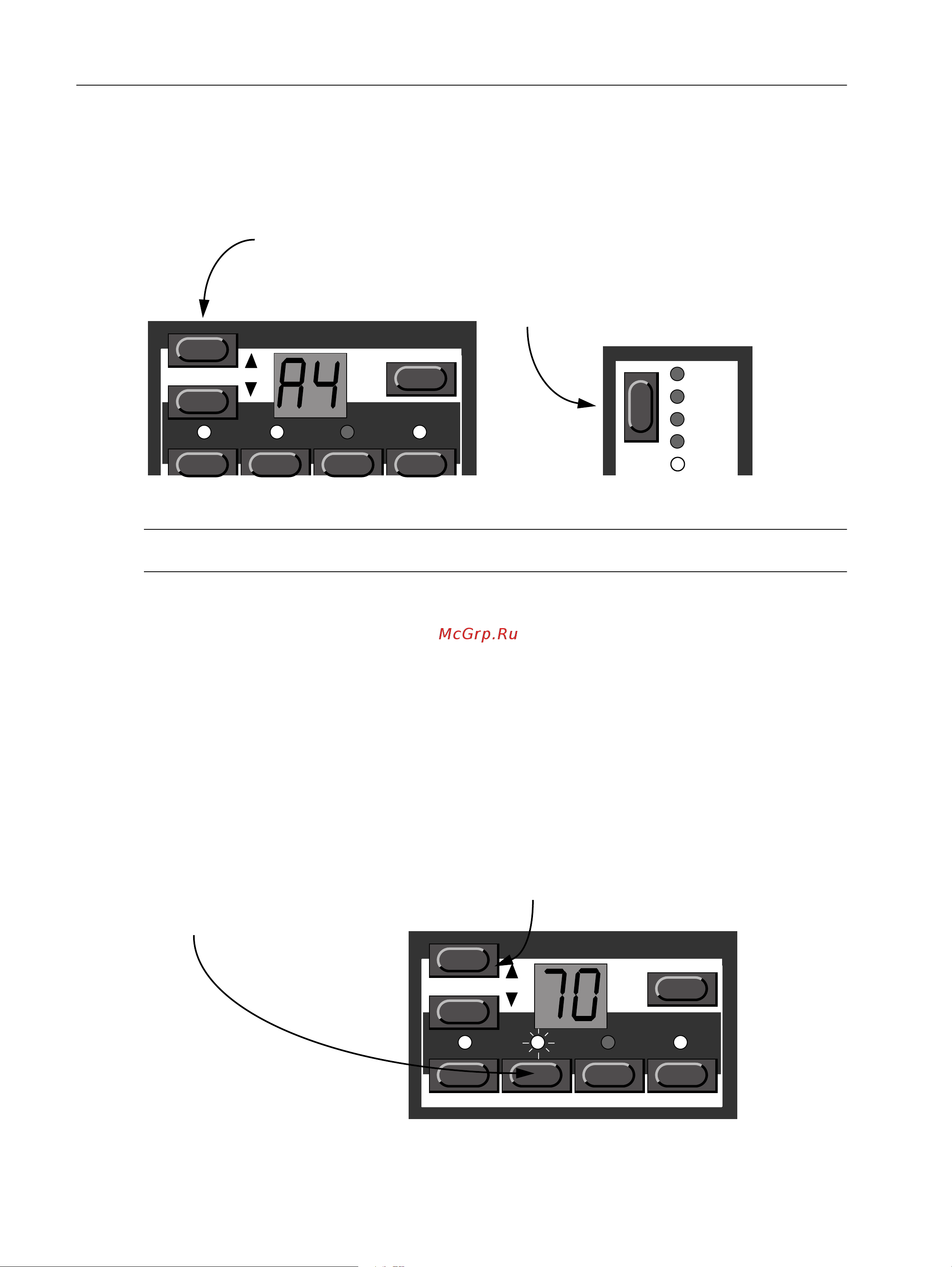

Use the Up/Down buttons to change Performance (indicated by the
digit 1-9 to the right in the display).
If you hold down the Shift button,
you can change Performance Bank
(A-L) with the Up/Down buttons.
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program
Hold down the desired slot button
(its LED will blink, and the display
will show the selected Program for
the slot).
Use the Up and Down buttons to select an-
other program for the Performance Slot.
