Basic Operations Page 11
Selecting Programs
Program are sounds that you have prepared in advance. The basic memory in the Nord Lead contains 99
Programs
. 40 of these can be used for storing your own Programs, see below.
There are also four
Program slots
labelled A to D. The slots can be used for layering and quickly switching
between programs as described below. They are also used when the Nord Lead is played via MIDI.
1. Select a Program Slot to play by pressing one of the four buttons A to D.
When you are only playing one sound at a time, as you are now, you can select any slot.
2. Use the Program Up/Down keys to select a Program for that slot.
Holding down a button scrolls the value quickly. Holding down the Shift key (the button above the Mod-
ulation wheel) while pressing the buttons makes the value change in steps of ten.
There are 99 Programs to select from. If you have a PCMCIA card inserted in the holder on the back (to
do this you must have the expansion card installed), you may have another 297 on this, arranged in three
banks. Dots to the right and between the numeral in the display indicate new Banks.
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program

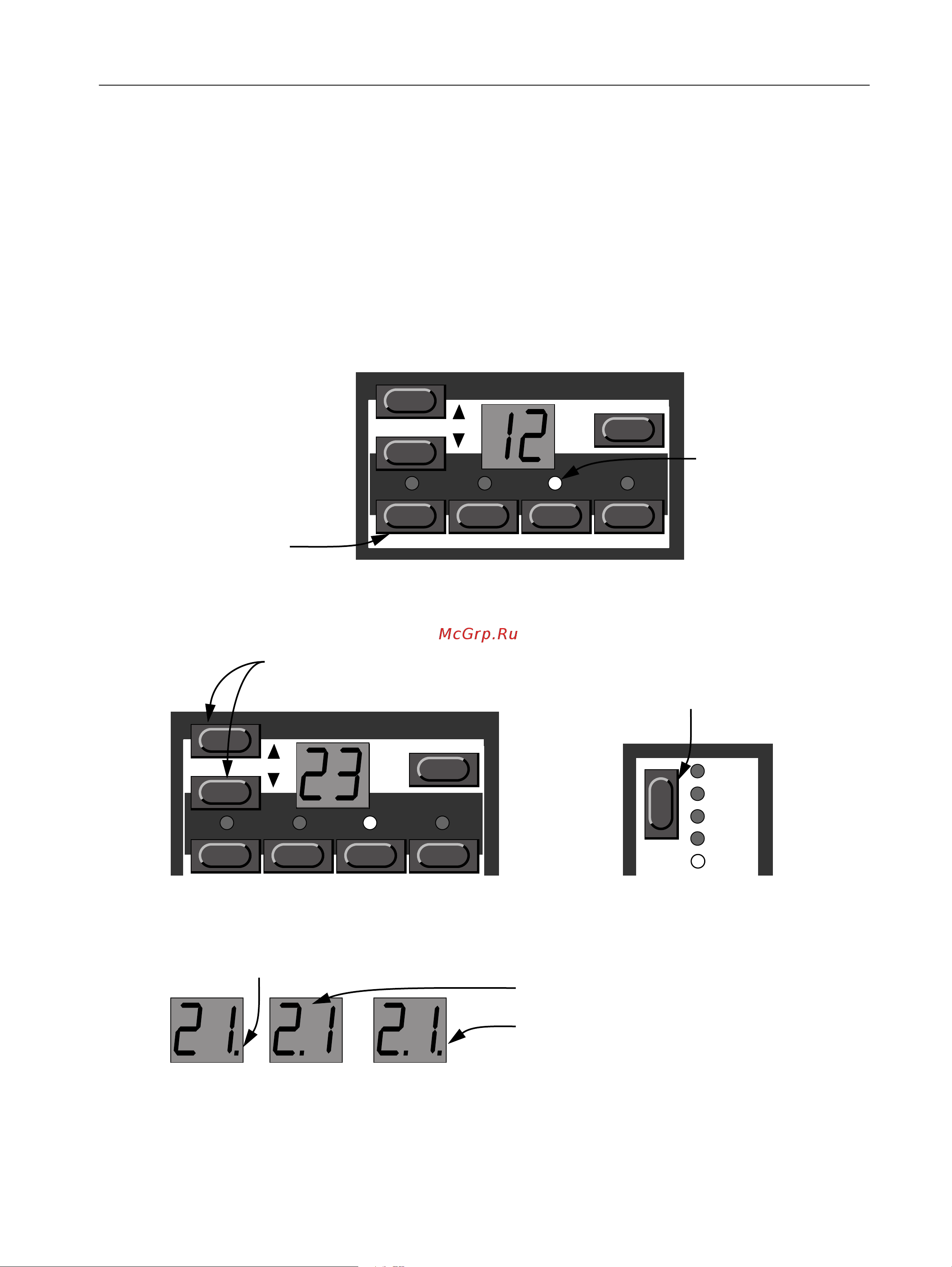

Use these four but-
tons to select a
“Program slot”.
This “slot” is
selected (lit
up).
Program
ABCD
STORE
Program
SHIFT
FILTER
FM AMT
OSC 2
LFO 1
MORPH
Press these buttons to increase/
decrease the Program number.
If you hold down the Shift button
while you press the Up/Down keys,
the Program value will change in
steps of ten.
A single dot between the numerals
indicate Bank 2.
A single dot to the right indicates Bank 1.
Dots both to the right and between the
numerals, indicate Bank 3.
