Page 68 MIDI
5. ‘Use the Program Up/Down buttons to select one of the following control functions:
6. After you have made your choice, press Store again.
You return to the “t” display.
7. Use the Program Up/Down buttons to select a control amount value (“–” or “1” to “7”).
This value (shown to the right of the “t” in the display) determines how much the assigned parameter
should be affected by a received maximum aftertouch value.
If you don’t want the slot to be affected by aftertouch messages, select amount value “-”.
8. If needed, repeat steps 3 to 7 to set aftertouch assignment for the other slots.
9. Press Shift to exit the Special menu and return to play mode.
Program Change
The descriptions below are only true if transmission/reception of Program Change messages is activated,
see page 59.
▼ When you select a new Program for a slot, a Program Change message is transmitted via MIDI, on the
slot’s MIDI Channel.
▼ Likewise, if a Program Change message is received on a certain MIDI Channel, all Program slots set to
that MIDI Channel will switch to a new Program.
▼ When you select a new Performance, a Program Change message is transmitted on the Global MIDI
Channel. For information on how to set the Global MIDI Channel, see page 60.
▼ When a Program Change message is received on the Global MIDI Channel, a new Performance is select-
ed.
If the Global MIDI Channel happens to be set to the same number as one of the Program slots, the Per-
formance takes precedence. That is, Program Change messages on this MIDI Channel will select Perform-
ances, not Programs.

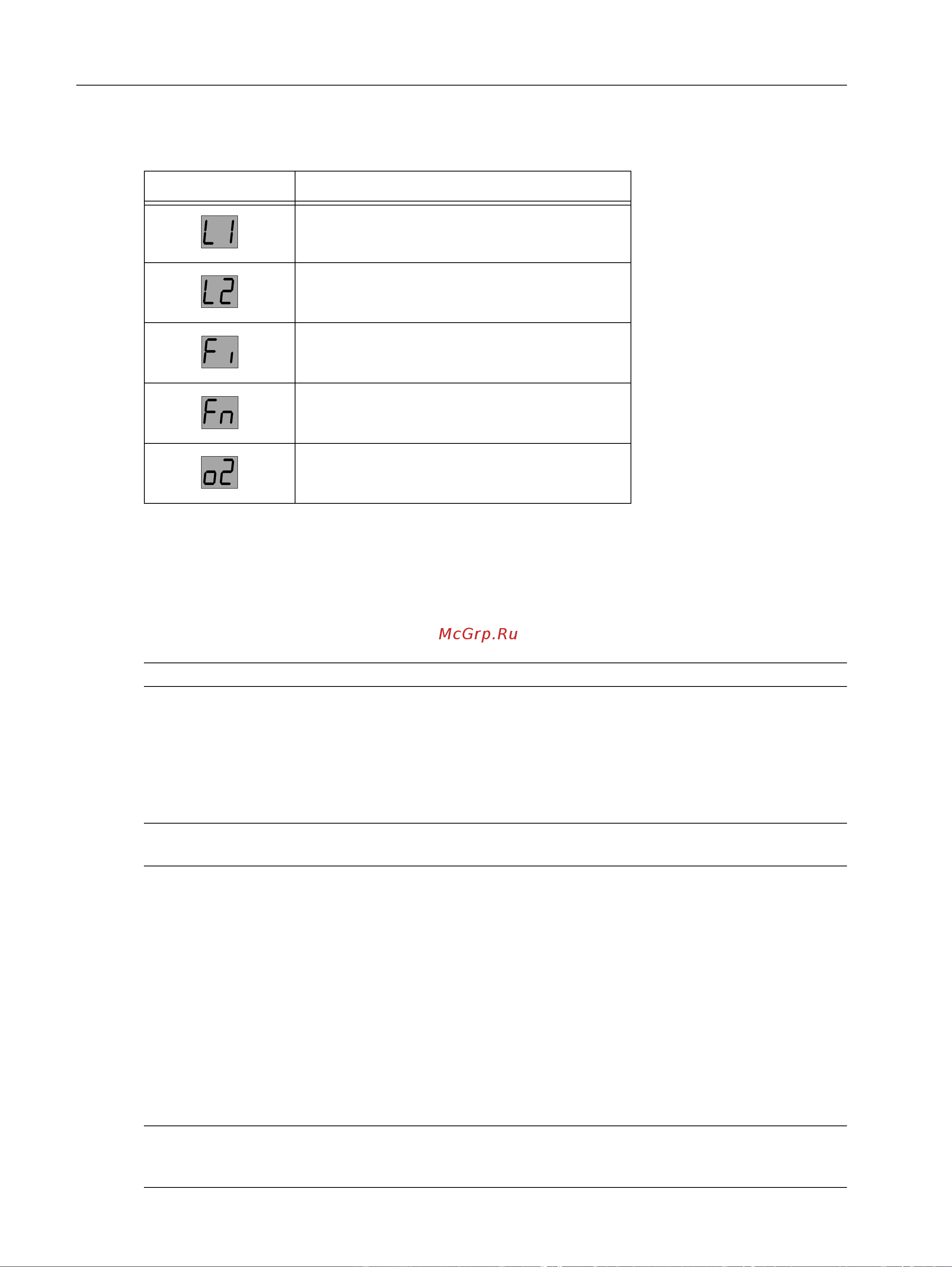

Display shows: Pedal assigned to:
LFO 1 Amount.
LFO 2 Amount.
Filter Cutoff Frequency.
FM Amount.
Oscillator 2 Pitch.
