Page 12 Basic Operations
Selecting Percussion Kits
In addition to the 99 Programs in the basic memory, there are 10
Percussion Kits
. Each Percussion Kit
consists of eight different virtual analog percussion sounds, arranged in zones across the keyboard. The
Kits are located “above” Program number 99, and numbered “P0” to “P9”.
▼
To select a Percussion Kit for a Slot, proceed just as when selecting a regular Program: Use the Program
Up/Down buttons to scroll to the desired Percussion Kit location.

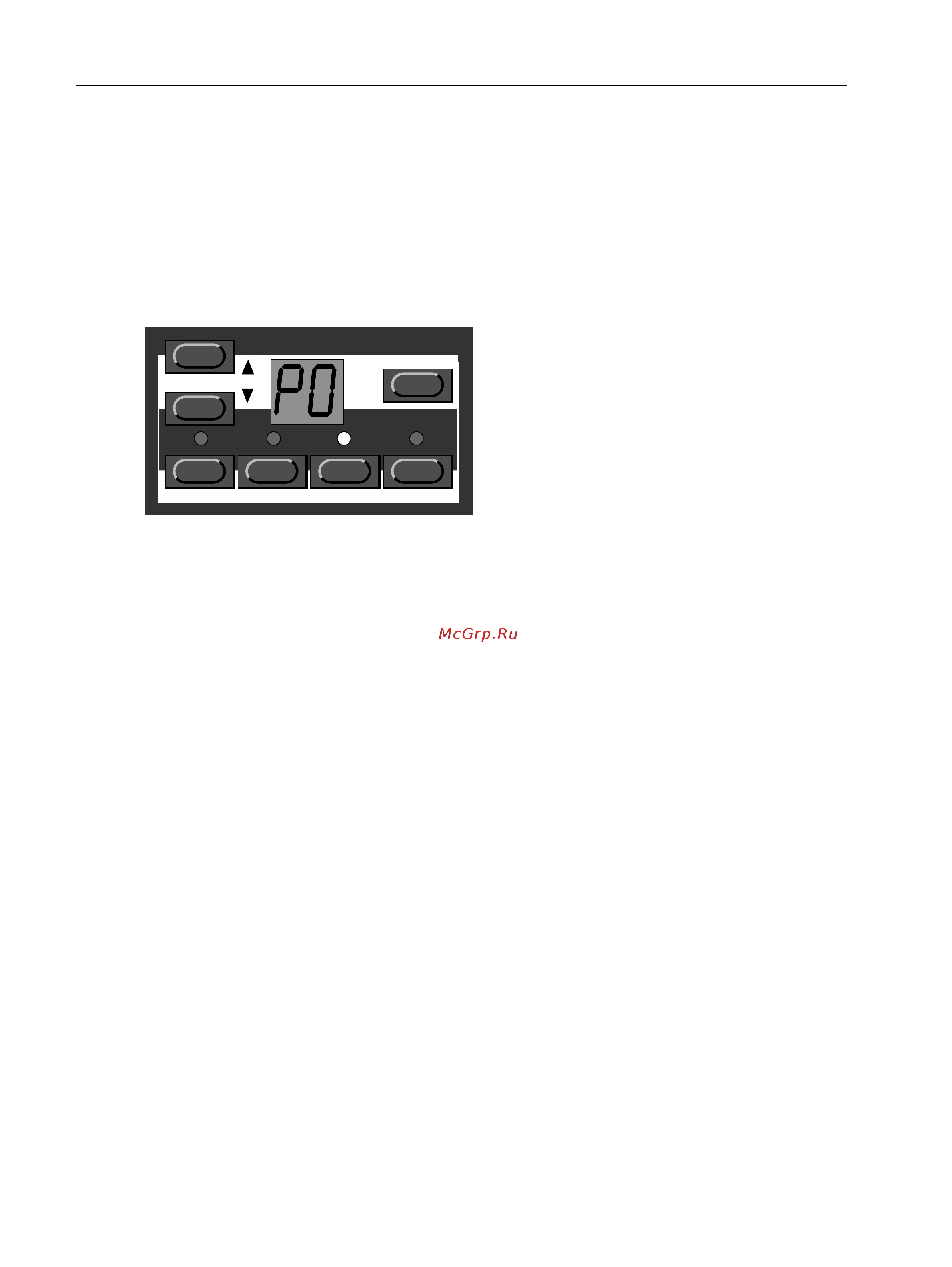

Percussion Kit P0 selected.
For detailed information about how to play and edit the Percussion Kits, see page 29.
Using the Slots To Switch Programs
The four Program Slots A to D can be thought of as four independent synthesizers, each capable of play-
ing one Program or Percussion Kit. When you select one of the slots you will switch to play the Program
set for that slot.
For live performance, for example, you can set up each slot to play a different Program and quickly
switch between those four by pressing the buttons A to D.
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program
