Page 52 Panel Reference

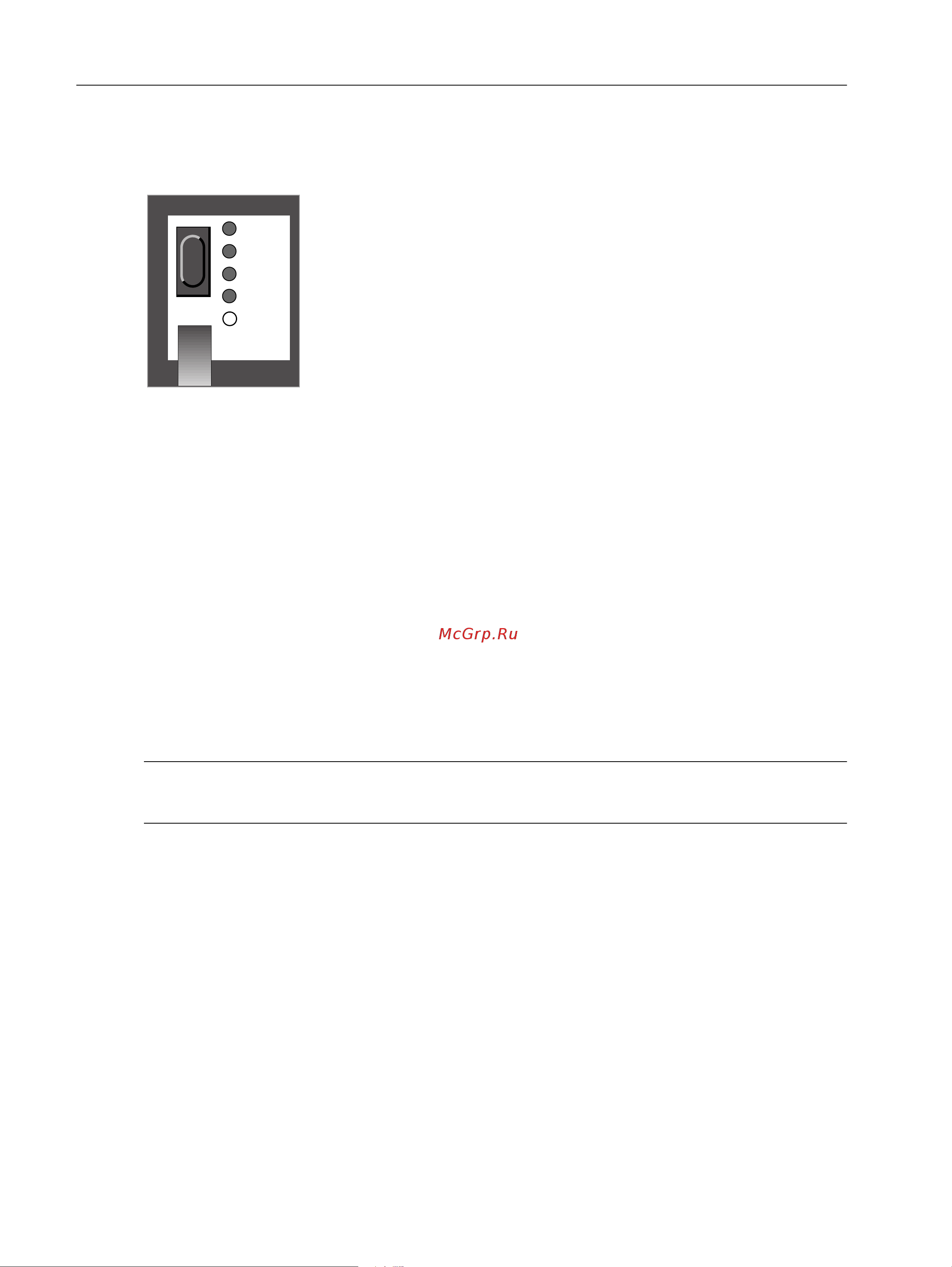

Mod Wheel Destination
This is used to decide what effect moving the Modulation wheel should have.
LFO 1
When this is selected, the Mod Wheel adjusts the amount of output from LFO 1. This allows you to for
example add vibrato with the mod wheel.
Osc 2
With this selected the Modulation wheel is directly routed to Oscillator 2 pitch. This can be used for ex-
ample together with Oscillator Sync and FM to vary the timbre of the sound while playing.
FM Amt
This routes the modulation wheel to the amount of FM (see page 39).
Filter
This routes the modulation wheel directly to the filter frequency.
Please note that modulation wheel routing is in addition to the basic setting of the control it is routed to.
If you for example route the modulation wheel to the filter, and the filter is already fully open, moving
the modulation wheel has no effect.
Morph
When no LED is lit, the modulation wheel is used for morphing. See page 28.
SHIFT
FILTER
FM AMT
OSC 2
LFO 1
MORPH
