Panel Reference Page 51
OSC 2: When this is selected, the envelope changes the pitch of Oscillator 2. This can be used in a number
of situations. For example:
▼ With Sync to create distinct sweeping sounds.
▼ With FM for effect type sweeps.
▼ To create “bleeps” in the beginning of a brass type of sound. Let us give a few examples:

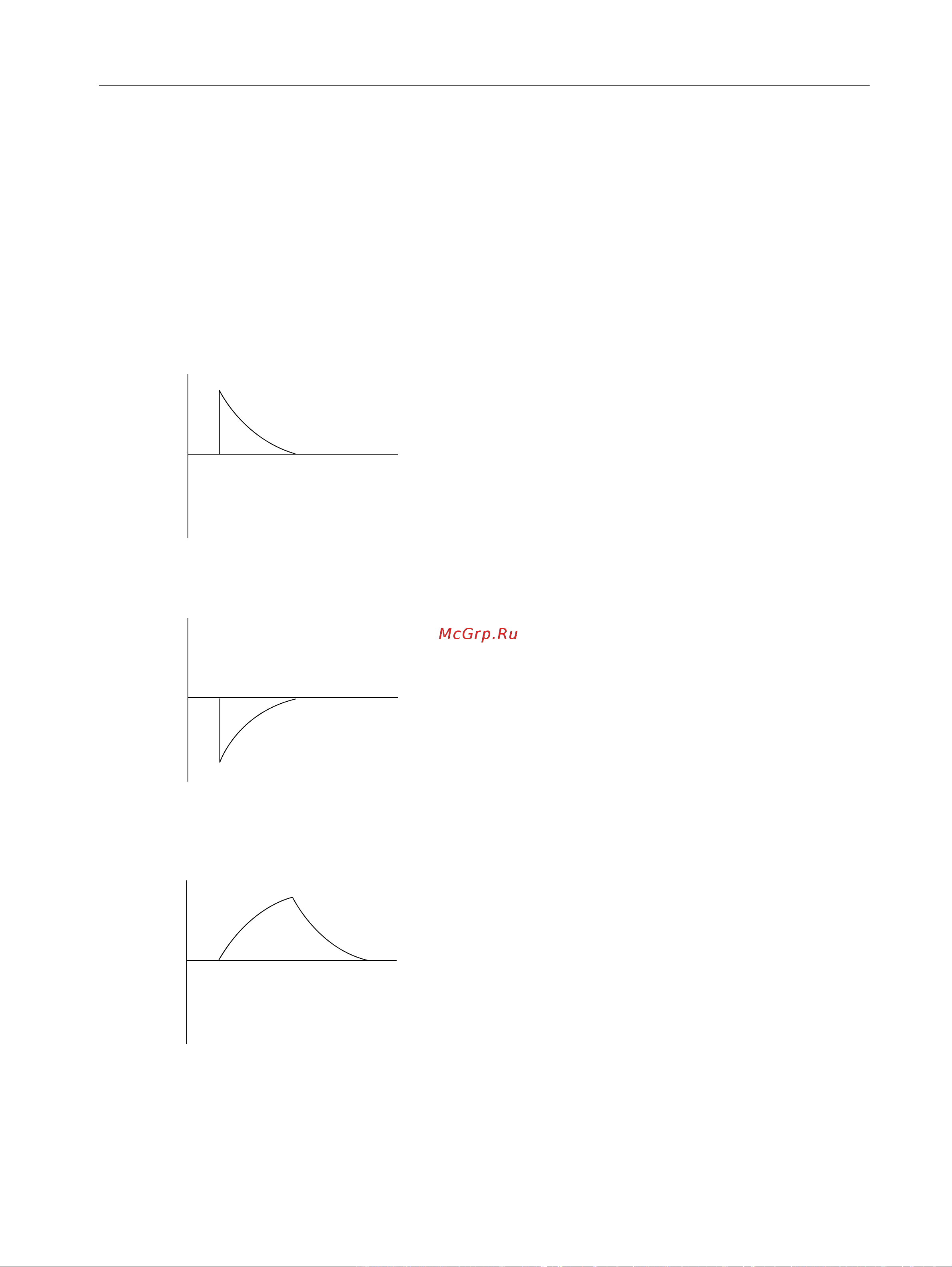

If Attack is set to zero, and you have a positive Amount setting, Oscillator 2 pitch will decay down to nor-
mal pitch as set with the Decay knob.
If Amount instead is set to a negative value, the pitch will rise up to “normal”.
If Attack and Decay are both used and you have a positive Amount setting, the sound will start at normal
pitch when you press the key, rise and then “fall back”.
Time
Level
Time
Level
Time
Level
