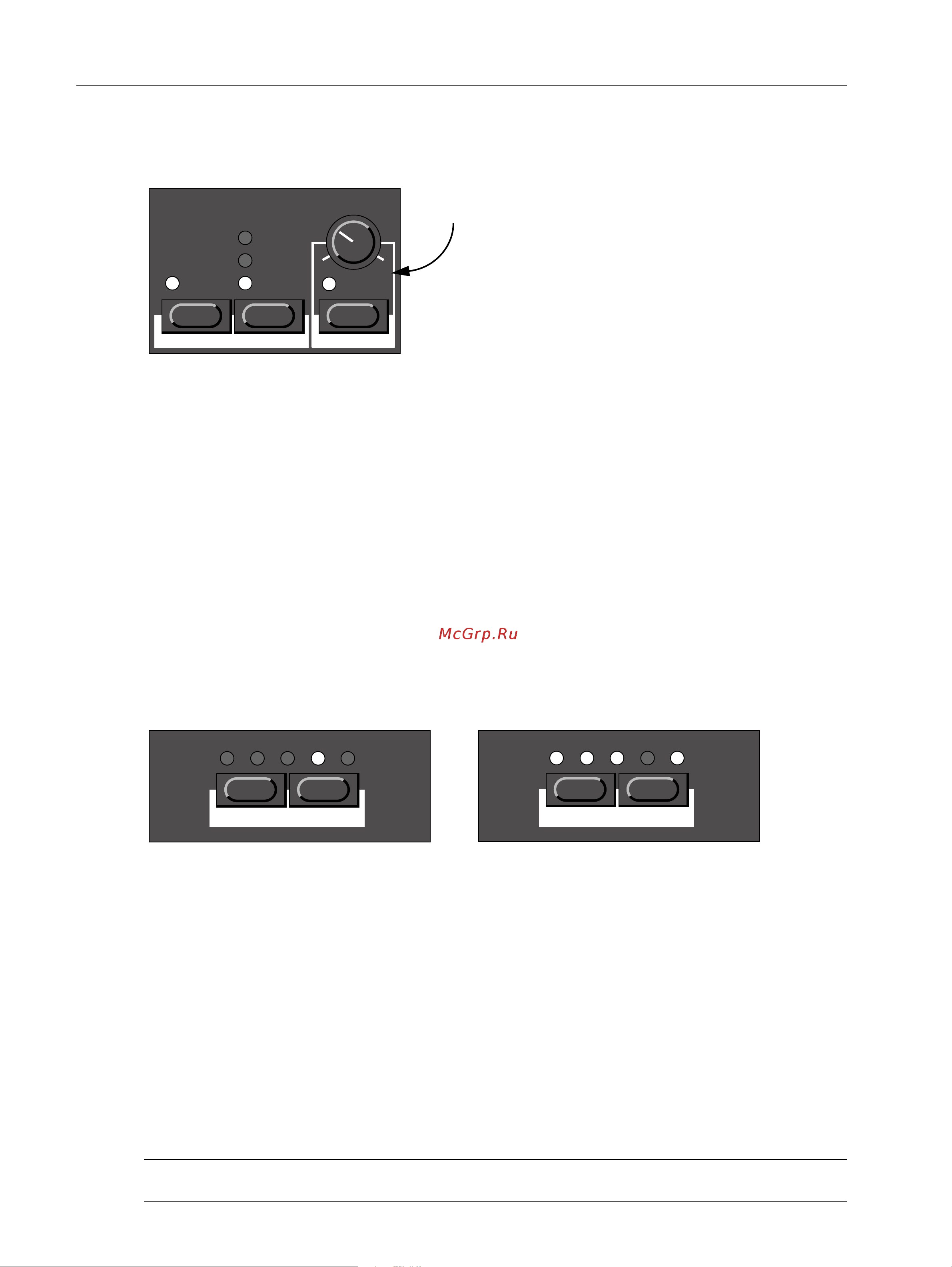

Page 54 Panel Reference
Portamento
Portamento (Time)
This is used to set how long it takes for the pitch to slide from one pitch to the next. If you don’t want
any Portamento at all, set this knob to zero.
Auto
When this is activated (LED is lit), the pitch only slides if you play legato, that is if you play a new key
before lifting the previous.
The effect of this switch is pretty obvious when you have selected Mono or Legato “Play mode”. If, on
the other hand, Poly is selected, the Portamento effect will be slightly unpredictable if Auto is on, espe-
cially on a twelve voice synthesizer. For Poly mode, we therefore recommend you to turn Auto off.
Oct Shift
The Octave Shift buttons have two functions, Slot and Keyboard Octave Shift (explained below). To
switch between the two Octave Shift modes, simultaneously press both Octave Shift buttons and hold
them pressed until the LEDs change indication mode, as shown in this figure:
Slot Octave Shift
This mode will automatically be selected each time you turn on the Nord Lead. In this mode, the Octave
Shift buttons affect the Program in the selected slot only. Notes sent to MIDI Out are not transposed. This
means that in this mode, the Nord Lead can only send MIDI Notes over a range of 4 octaves.
Keyboard Octave Shift
In this mode (LEDs inverted), the actual keyboard is affected by the Octave Shift buttons. This means that
all active slots are affected, as well as all notes sent to MIDI Out. This mode is suitable if you want to
control other MIDI instruments from the Nord Lead, since it lets you control a note range of eight octaves.
It is also the mode to use if you’re playing a Performance consisting of two or more slots, and want to be
able to Shift all slots simultaneously.
Low/high octave settings in combination with extreme Tune settings for Oscillator 2 may produce pitches
outside the hearing range.
MIDI CH
SPECIAL
Portamento
MONO
LEGATO
POLY
UNISON
SYSTEM
AUTO
The Portamento
controls.
DUMP ALL DUMP ONE
OCT SHIFT
DUMP ALL DUMP ONE
OCT SHIFT
Slot Octave Shift (default) Keyboard Octave Shift (LEDs inverted)
