Basic Operations Page 17
Pedal
As shown in the picture on page 8, the Pedal input accepts either a foot switch or an expression pedal.
The procedures for setting up and using a connected foot pedal differs depending on the pedal type:
Using a Foot Switch
A connected foot switch works as a sustain pedal. Set it up as follows:
1. Hold down the Shift button, and press the “System” button.
2. Press the System button until the left digit in the display is “P”.
3. Use the Program Up/Down buttons to switch the right digit between “1” (Sustain pedal – closed when
pressed) and “2” (Sustain Pedal – open when pressed).
4. Press the Shift button again.
Using an Expression pedal
As indicated in the illustration on page 8, a regular expression pedal can be connected using a stereo ca-
ble. The connected pedal will either duplicate the Modulation wheel or independently control one of a
number of parameters. Set it up as follows:
1. Hold down the Shift button, and press the “System” button.
2. Press the System button until the left digit in the display is “P”.
3. Use the Program Up/Down buttons to switch the right digit to “E”.
This tells the Nord Lead that the connected pedal is supposed to be an expression pedal. Now it’s time
to assign a control function for the pedal:
4. While holding down the Shift button, press the Special button.
5. Press the Special button repeatedly, until the left character in the display is an “E” (for “Expression Pedal”).
6. Select a slot for which you want to set the pedal function by pressing one of the buttons A to D.

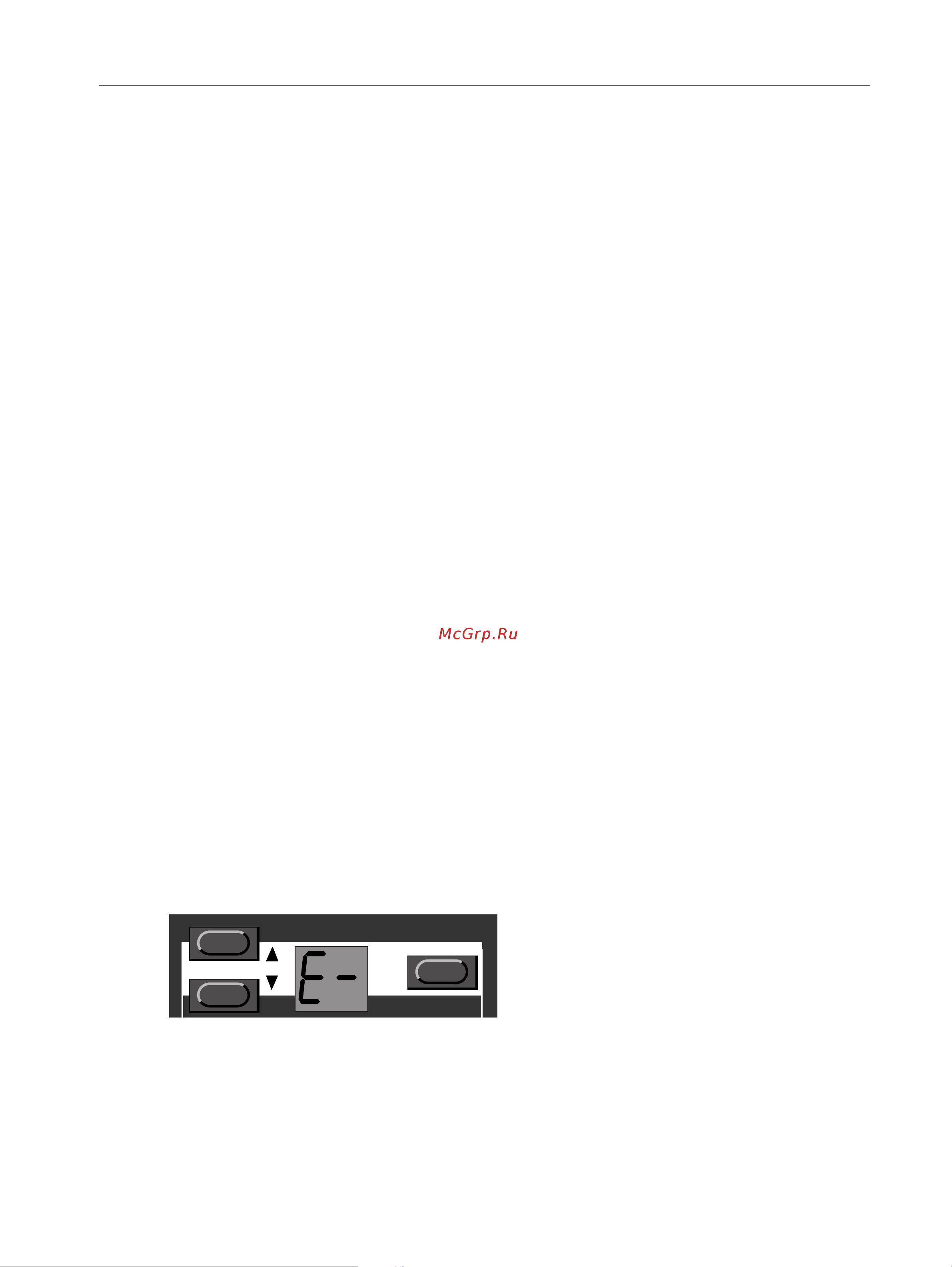

7. If you want the connected pedal to duplicate the functionality of the Modulation wheel, press the Program
Down button until the right character in the display is a dash (“–”).
With this setting, the expression pedal will have the same function as the Modulation wheel.
8. If you instead want to select an independent control function for the pedal, press Store.
The display will flash, showing one of the abbreviations in the table below.
Program
STORE
Program
