Page 18 Basic Operations
9. ‘Use the Program Up/Down buttons to select one of the following control functions:
10. After you have made your choice, press Store again.
You return to the “E” display.
11. Use the Program Up/Down buttons to select a control amount value (“1” to “7”).
This value (shown to the right of the “E” in the display) determines the range of the pedal control signal.
Lower values give a smaller difference between the pedal’s “full up” and “full down” states. High values
give a big difference between the pedal’s up and down states.
12. If needed, repeat steps 5 to 10 to set pedal control function for the other slots.
13. Press Shift to exit the Special menu and return to play mode.
No matter which function is selected for the Pedal input (“E”, “1” or “2” on the System menu), the Nord
Lead will recognize Sustain and Expression pedal messages via MIDI (Controller message 64 and 11, re-
spectively). For example, it is possible to connect a regular sustain pedal to the Pedal input on the Nord
Lead, and simultaneously accept Expression pedal messages via MIDI, controlling a parameter assigned
as described above.

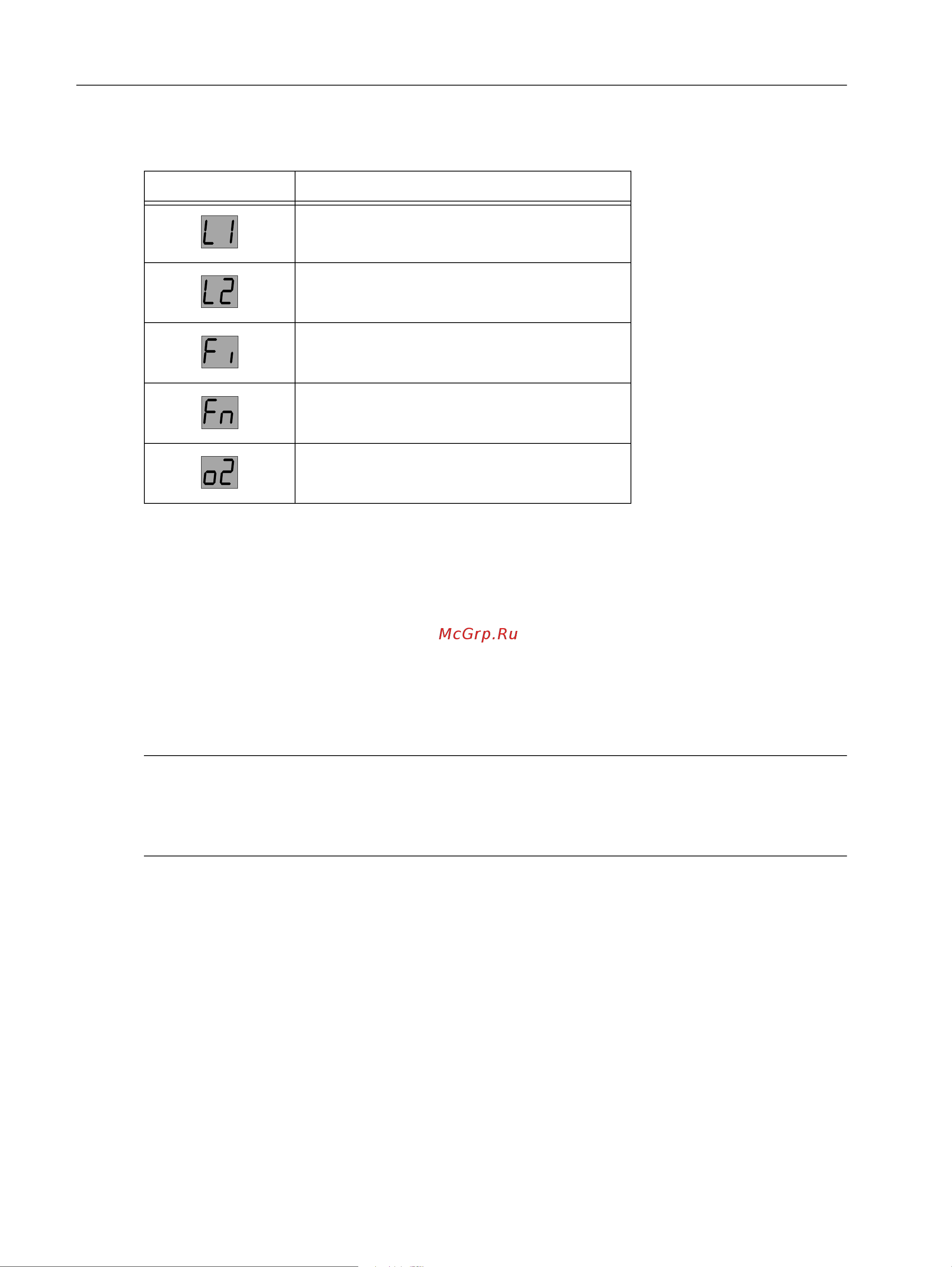

Display shows: Pedal assigned to:
LFO 1 Amount.
LFO 2 Amount.
Filter Cutoff Frequency.
FM Amount.
Oscillator 2 Pitch.
