Page 16 Basic Operations
2. With the Shift button down, press the button labelled System.
3. Press the System button repeatedly until the character to the left in the display says “b” (for Bend).
4. Use the Program Up/Down buttons to the left of the display, to change the value.
The table on page 66 shows you how many semi-tones each value in the display represents.
If the Pitch Stick should be malfunctioning on startup, the display will scroll the message “PITCH BEND
ERROR.”. The Nord Lead will then work as usual, but the Pitch Stick will be disabled.
Modulation Wheel
The effect of moving the Modulation wheel can be different for each Program. You can change the func-
tion by pressing the button just above the Modulation wheel. It steps between five possibilities. A de-
scription of each can be found on page 52.
Master Tune
To tune the Nord Lead to other instruments, proceed as follows:
1. Hold down the Shift button.
2. With the Shift button down, press the button labelled Tune.
3. Use the Program Up/Down buttons to the left of the display, to change the value.
00 is normal 440Hz tuning. Lower pitches are indicated by a dot to the right of the number and values
higher than normal pitch are indicated without a dot. The values are in cents (hundreds of a semitone).
4. Press the Shift button again.
MIDI CH
SPECIAL
MONO
UNISON
SYSTEM
AUTO
SHIFT
FILTER
FM AMT
OSC 2
LFO 1
MORPH

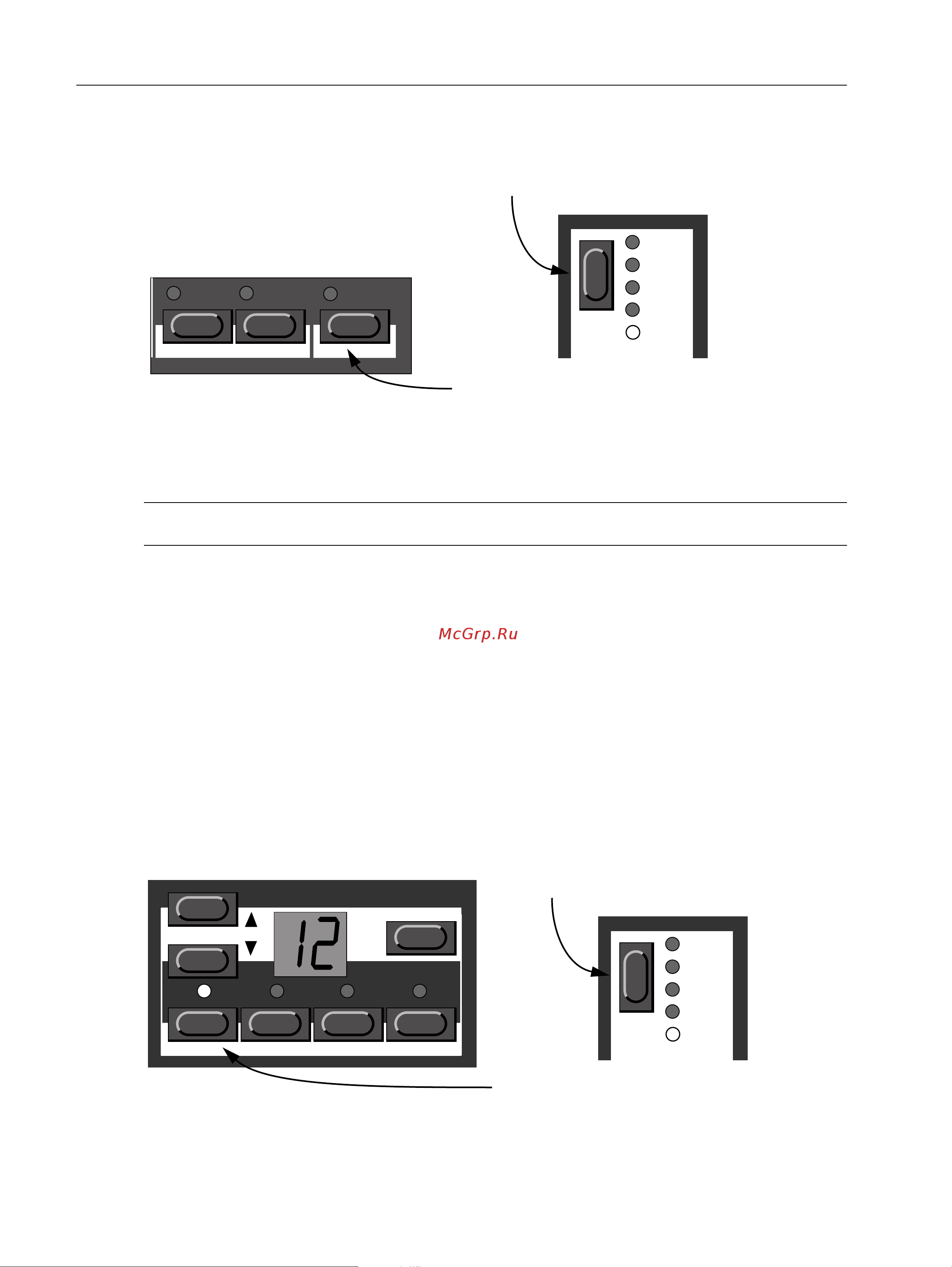

...and press the button labelled System
(the LED above the button lights up).
Hold down the Shift button...
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program
SHIFT
FILTER
FM AMT
OSC 2
LFO 1
MORPH
...and press the button labelled Tune
(the LED above the button lights up).
Hold down the Shift button...
