Basic Operations Page 13
Layering
Activating
You can play more than one Program at a time. Proceed as follows:
1. Set up the Program slots to play the Programs you want to use.
2. To activate more than one Program slot, simply press all the Program Slot buttons you want to use, at the
same time.
All those slots’ LEDs light up. The last one you pressed, is blinking. This will be the one you are editing
from the front panel, but more on this on page 21.
Deactivating
To turn of the layer, press a slot button that is not part of the layer, or press all the buttons that make up
the layer.
Polyphony
How many notes you can play when layering sounds depends on two things:
1. How many voices you have in your instrument (the basic four or the expanded twelve). 2. What Play
modes and Unison settings each Program uses. See page 53.
Replacing One Program In the Layer
You might want to select another Program for one of the slots in the layer:
1. Press the Program Slot button that you want to select Programs for.
Its LED will flash to indicate it is the active slot.
2. Select a new Program for that slot.
Program
TUNE LOCALOUT MODE PRG.CTRL.
ABCD
STORE
Program

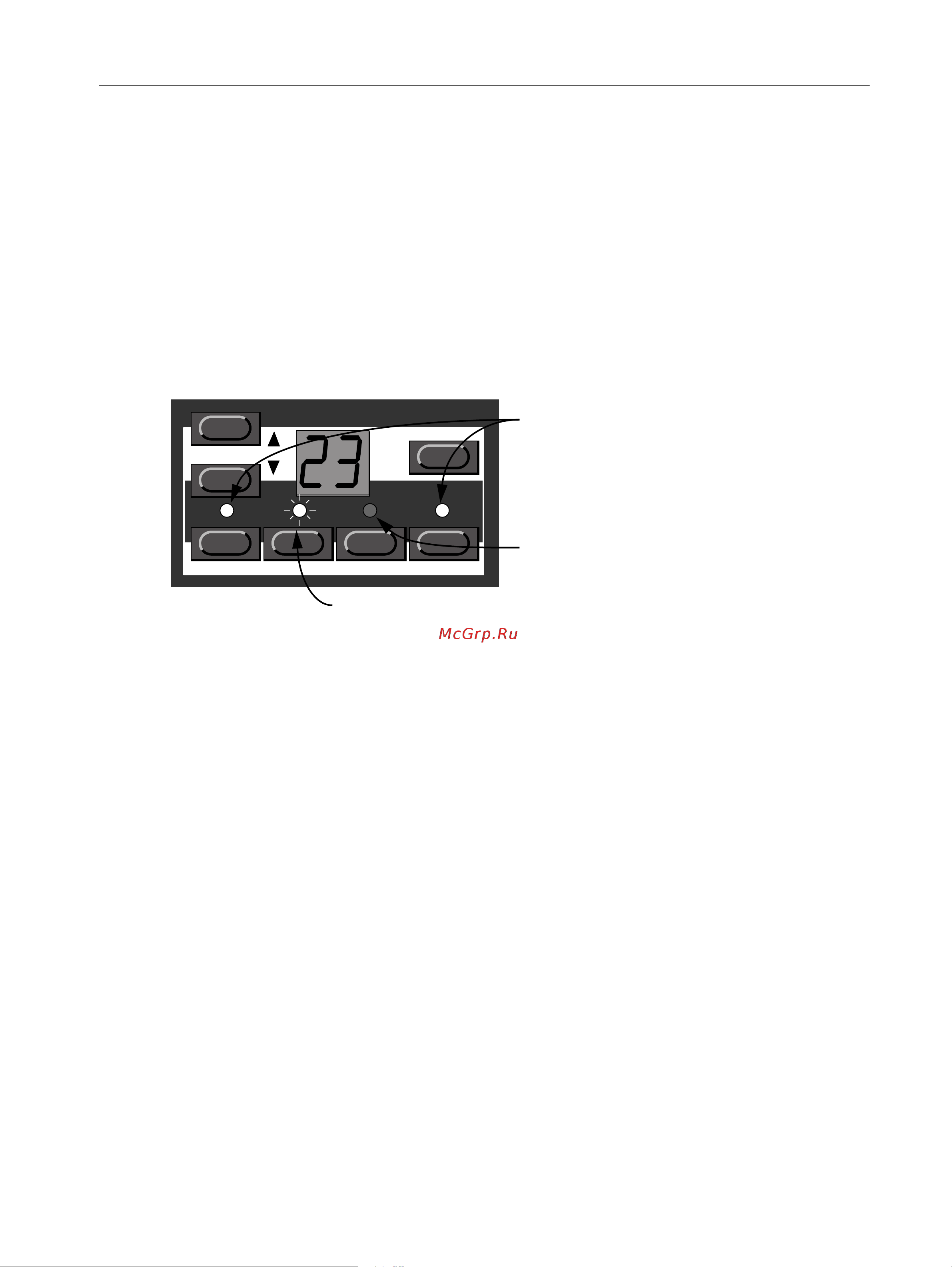

Slot B (blinking) is selected. Any editing
will apply to this Program slot.
Slots A and D (LEDs lit) are activated.
Slot C (LED dark) is not activated.
