Panel Reference Page 43

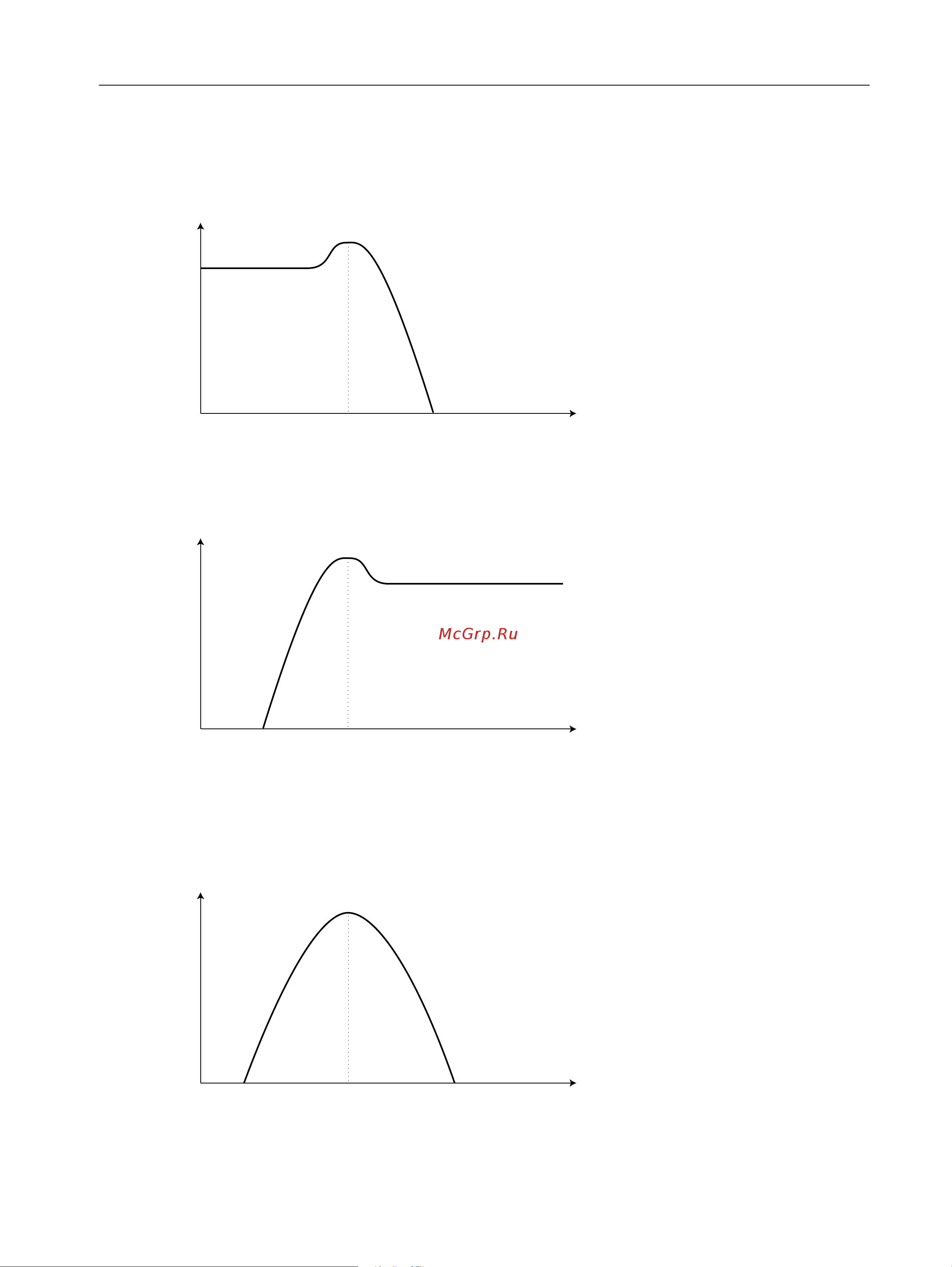

LP 24 dB: This is the classic synth filter used in the Minimoog and Prophet-5, among others. It cuts out

high frequencies rather drastically (24db=4 poles).

HP 24dB: HP stands for high-pass. This filter is the opposite of the lowpass filter, that is it lets the high

frequencies pass and cuts out low frequencies. The filter has a rather steep curve.

BP: To select this type of filter, press the Filter Type button until both the HP and LP 24 buttons light up.

BP stands for band pass. In this mode the filter let’s frequencies in the “mid-range” band pass through,

while lower and higher frequencies are cut out. Each “slope” in this filter has a 12dB (2-pole) roll-off.

Amplitude

Frequency

Fc (Cutoff Frequency)
