3-26
Chapter 3: BIOS Setup
Chapter 3
ASPM Support [Disabled]
Select the ASPM level for energy saving conditions.
Conguration options: [Disabled] [L0s] [L1s] [L0sL1] [Auto]
SA - PCI Express
DMI Link ASPM Control [Disabled]
This item is for the control of the Active State Power Management on SA side of the DMI link.
Conguration options: [Disabled] [L1]
PEG ASPM [Disabled]
This item is for the control of the Active State Power Management for the PEG 0.
Conguration options: [Disabled] [Auto] [ASPM L0s] [L1] [L0sL1]

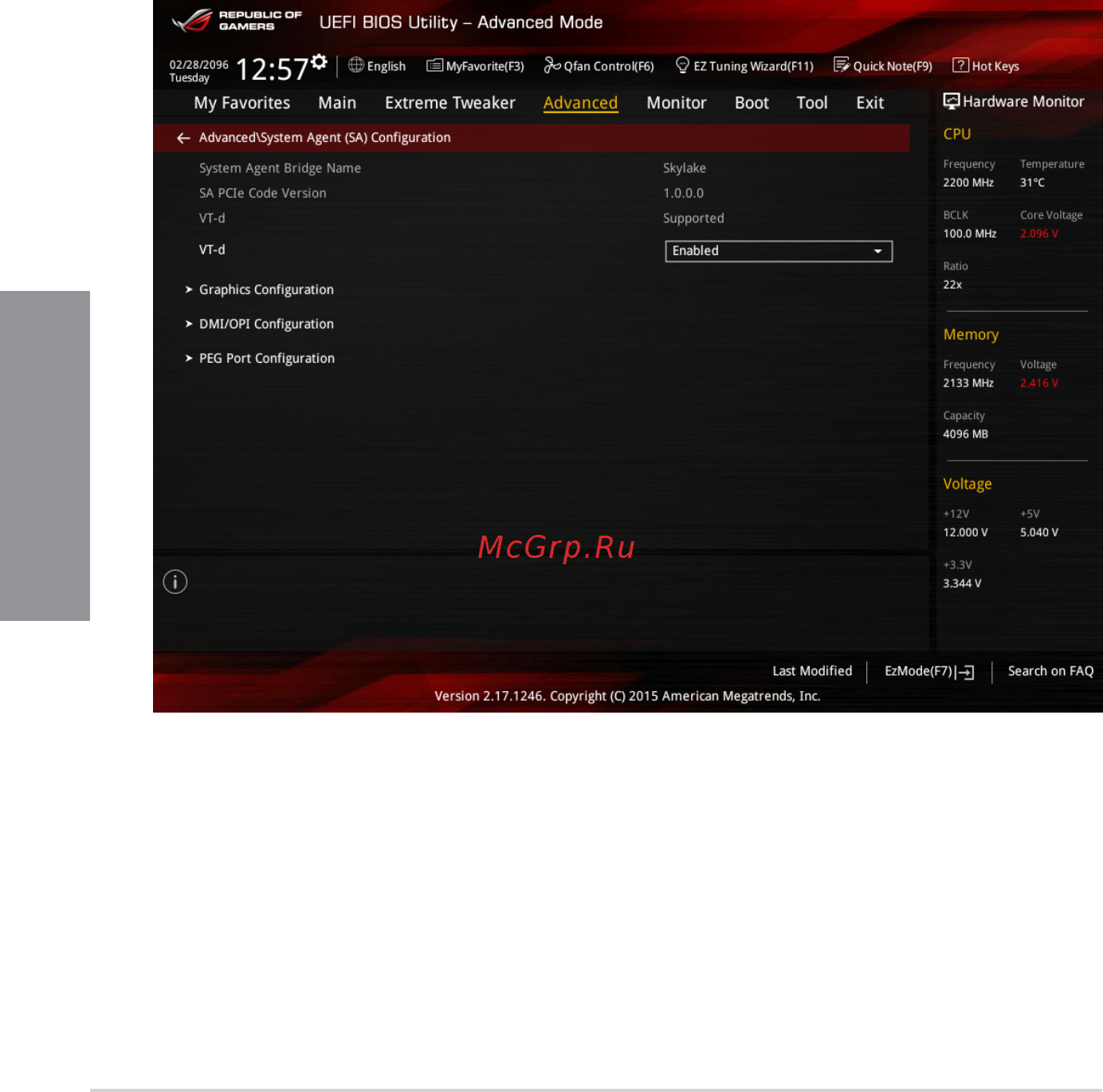

3.6.3 System Agent (SA) Configuration
VT-d [Enabled]
Allows you to enable virtualization technology function on memory control hub.
Conguration options: [Enabled] [Disabled]
