ASUS MAXIMUS VIII RANGER
4-23
Chapter 4
System Information
This utility displays the detailed information and settings of the installed motherboard, CPU,
and memory.
Launching the System Information
To launch System Information, click on the left of the AI Suite 3 main menu, then select
System Information.

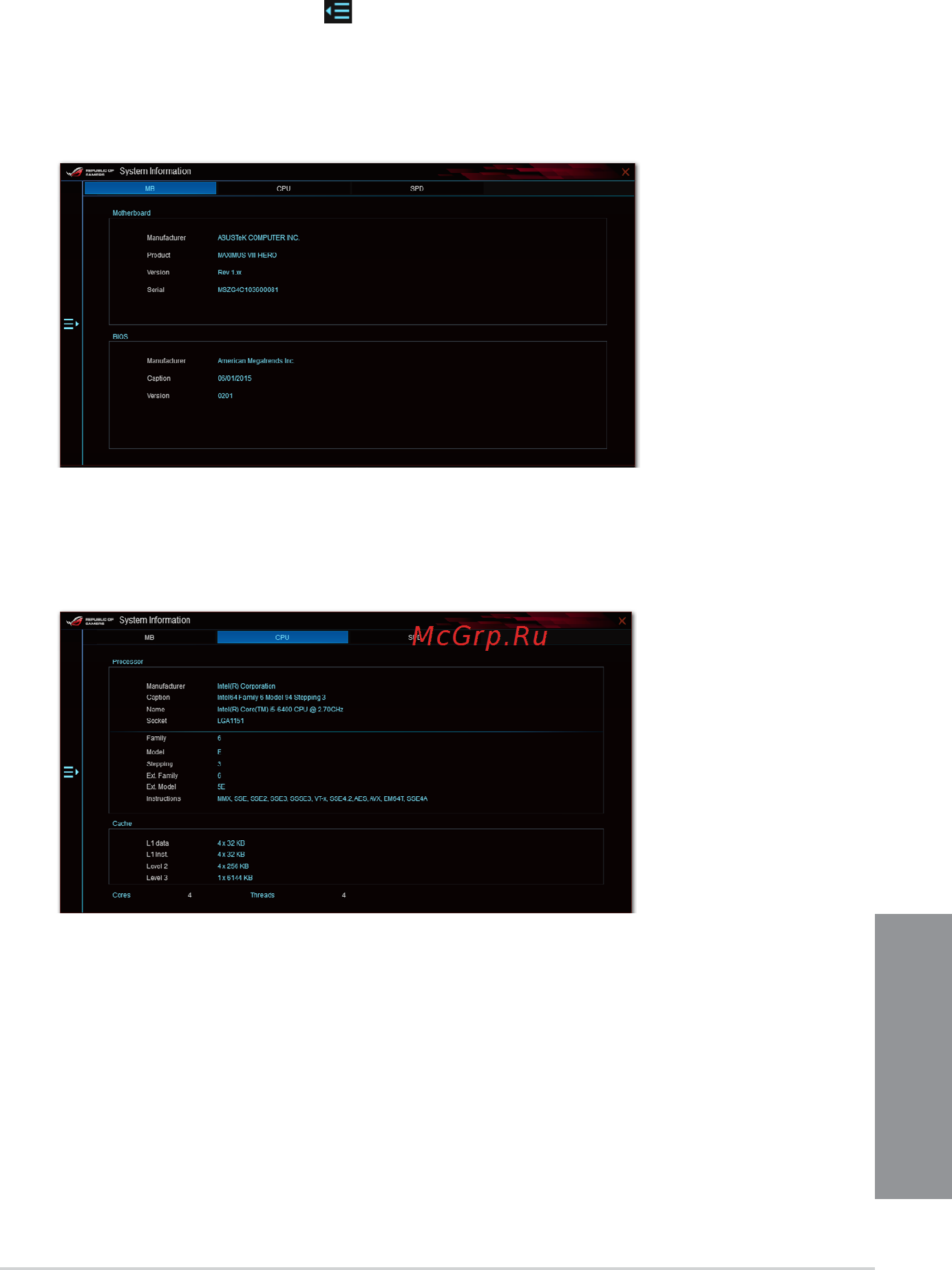

Viewing the motherboard information
Click the MB tab to view the motherboard’s information.
Viewing the CPU information
Click the CPU tab to view the processor’s information.
