ASUS MAXIMUS VIII RANGER
4-35
Chapter 4
DTS Connect
DTS Connect delivers excellent audio entertainment across all formats and works with 4, 5.1
and 7.1 channels of incredible surround sound . It also allows you to connect your PC to a
home theatre system.

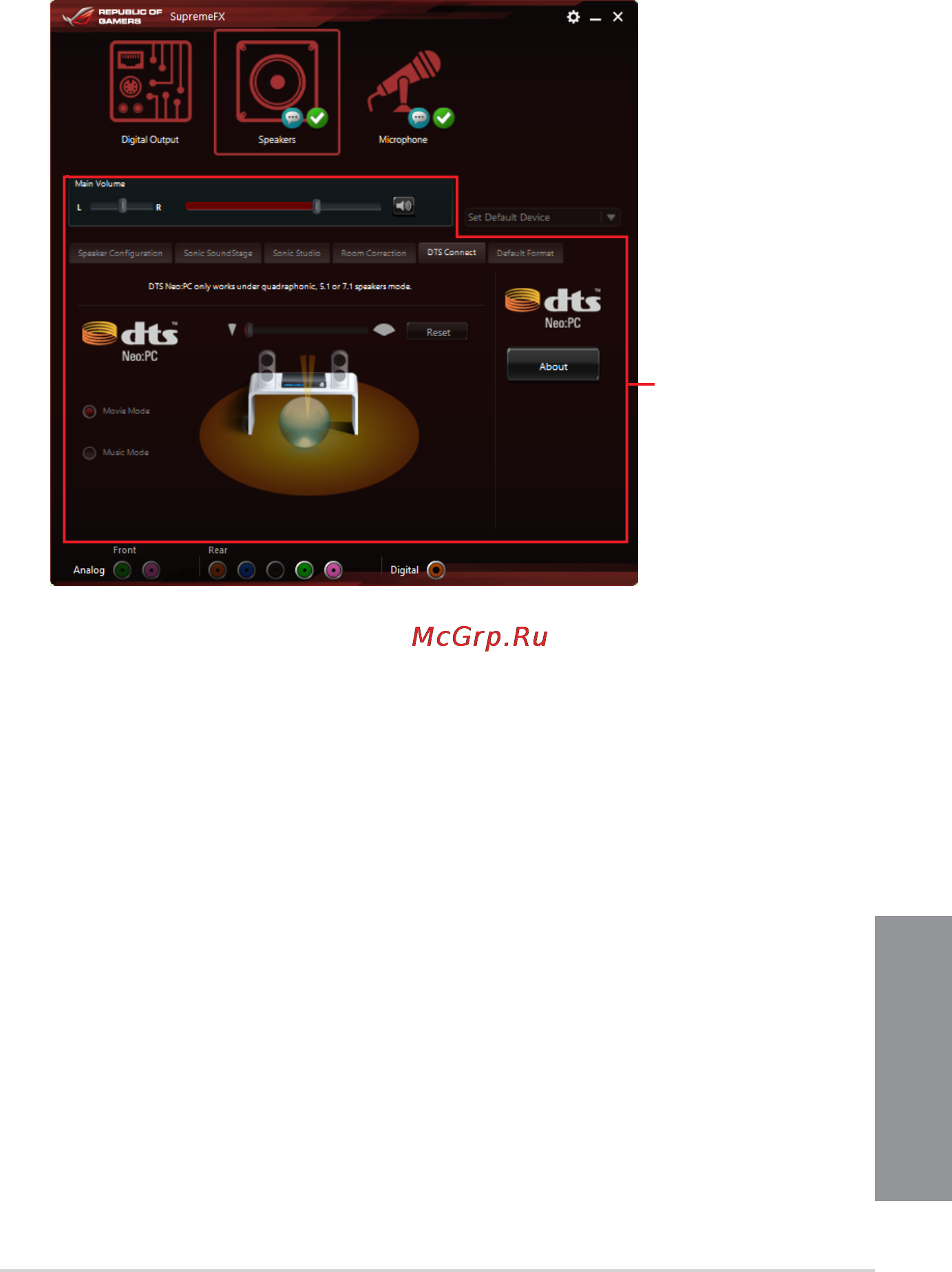

Control settings panel
