2-2
Chapter 2: Basic Installation
Chapter 2

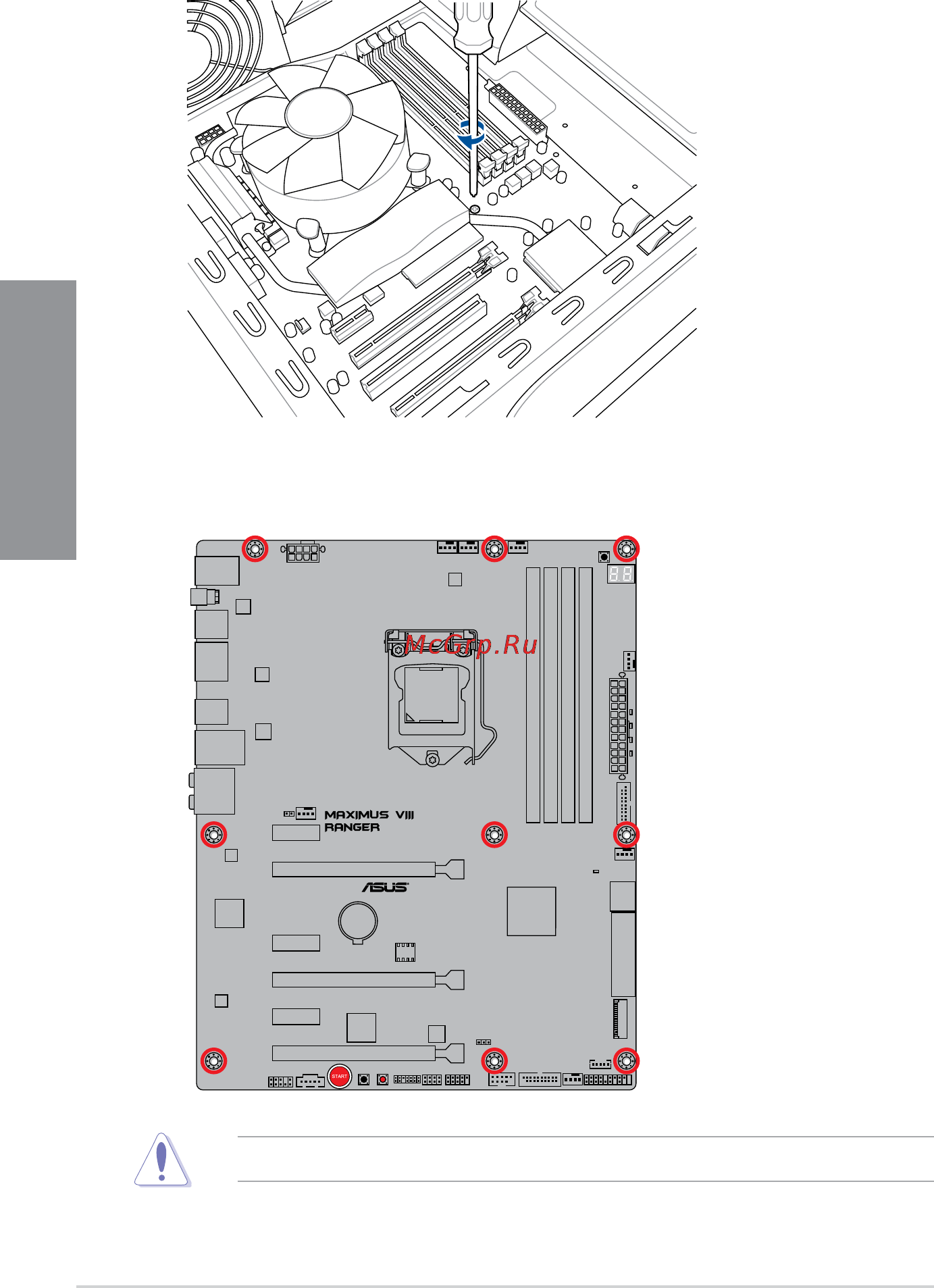

3. Place nine screws into the holes indicated by circles to secure the motherboard to the
chassis.
DO NOT over tighten the screws! Doing so can damage the motherboard.
