3-22
Chapter 3: BIOS Setup
Chapter 3
3.6 Advanced menu

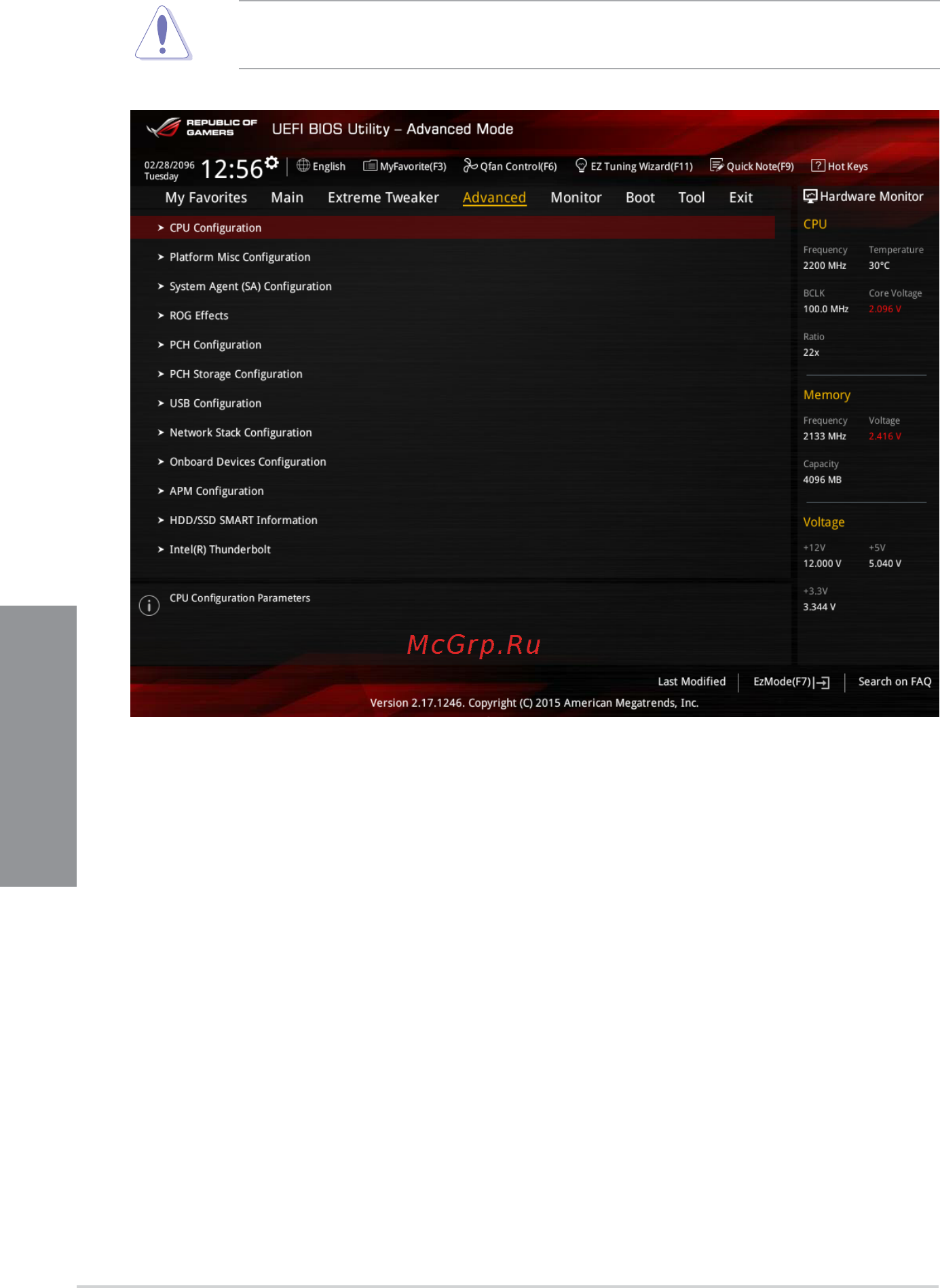

The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
