Chapter 1: Product Introduction
Chapter 1

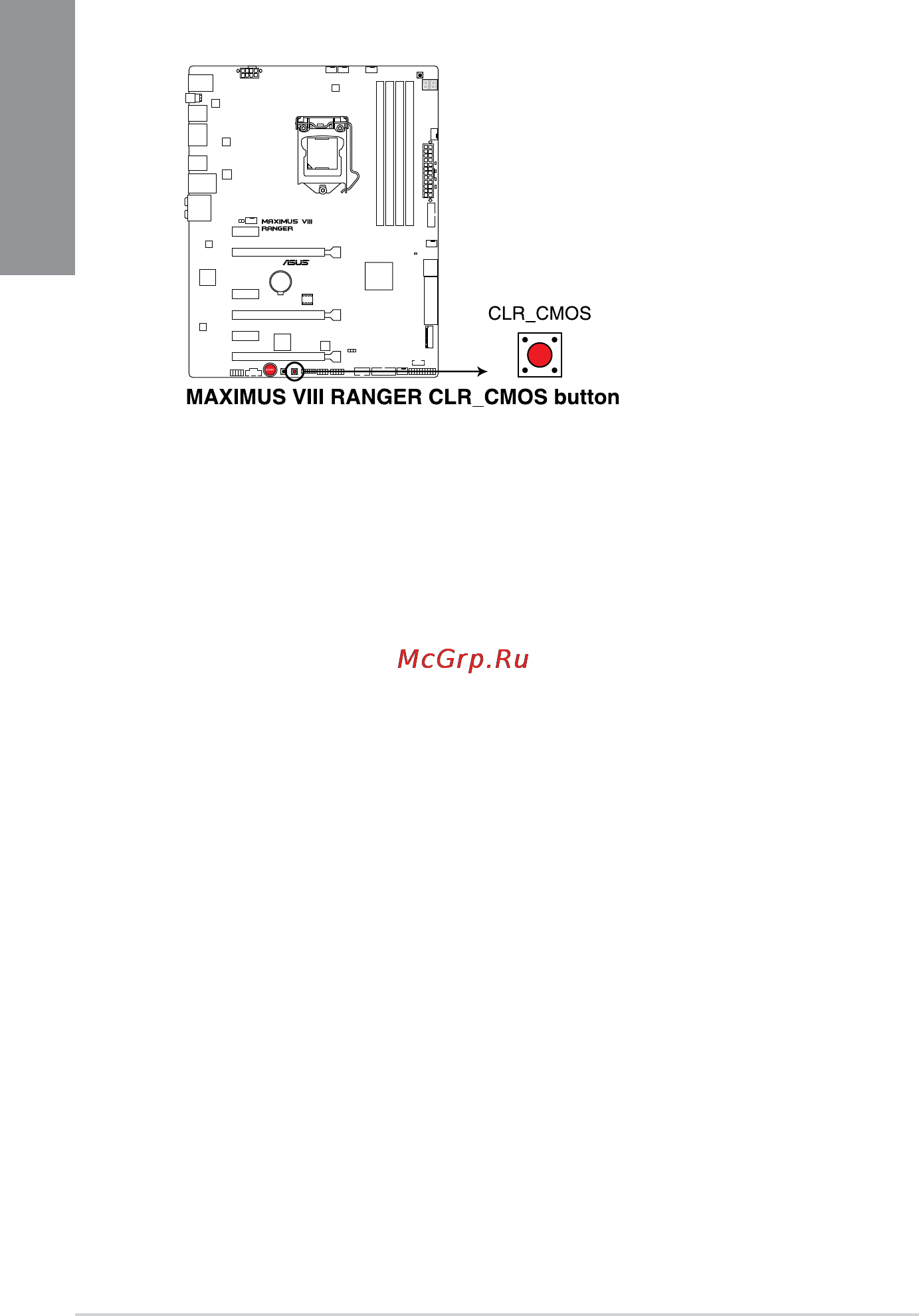

4. Clear CMOS button (CLR_CMOS)
Press this button to clear the BIOS setup information only when the systems hangs
due to overclocking.
