4-6
Chapter 4: Software Support
Chapter 4
• Windows
®
7 OS disk to ISO le

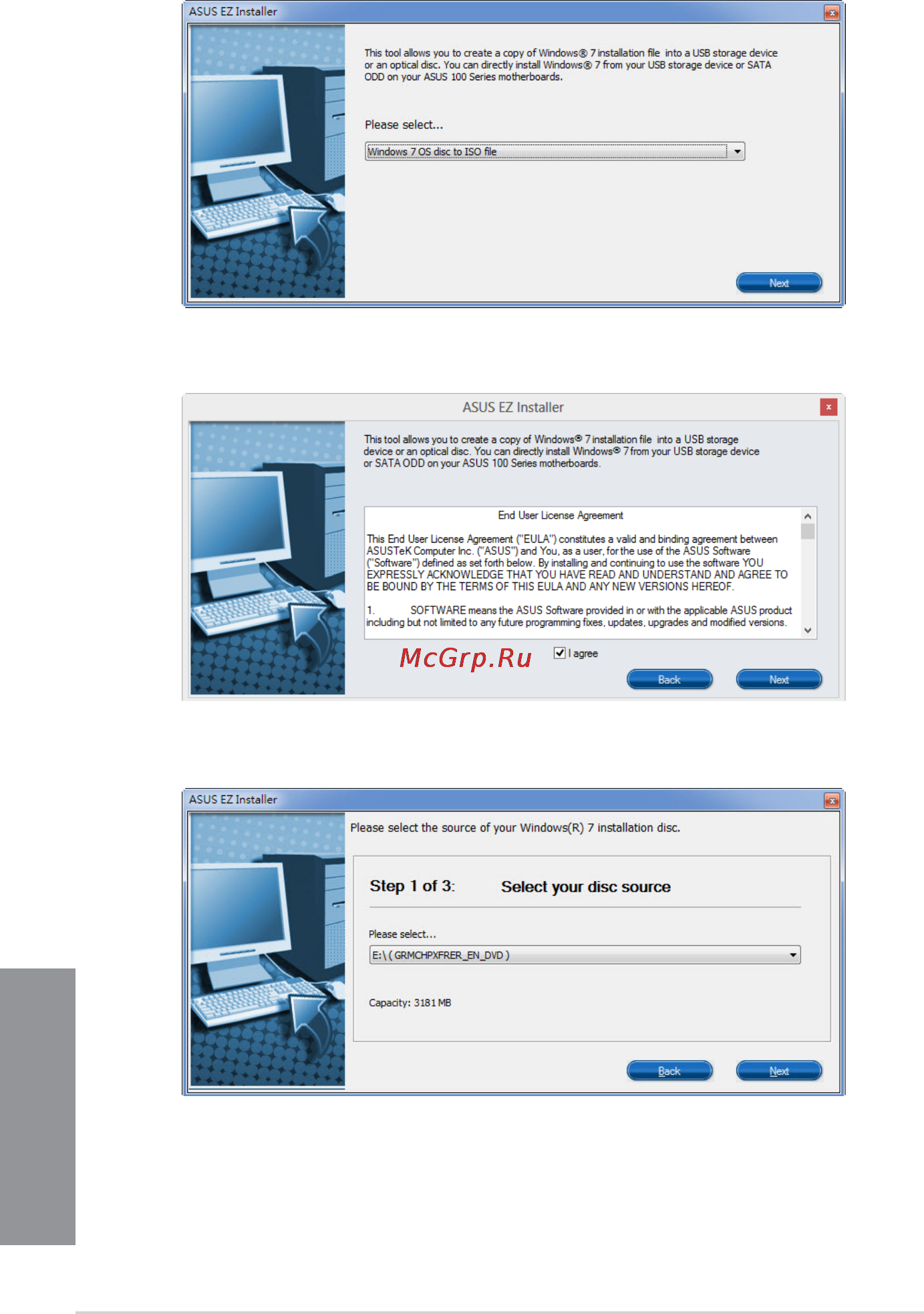

- Select Windows 7 OS disk to ISO file then click Next.
- Check I agree and then click Next.
- Select the source of the Windows
®
7 installation disk then click Next.
