3-28
Chapter 3: BIOS Setup
Chapter 3

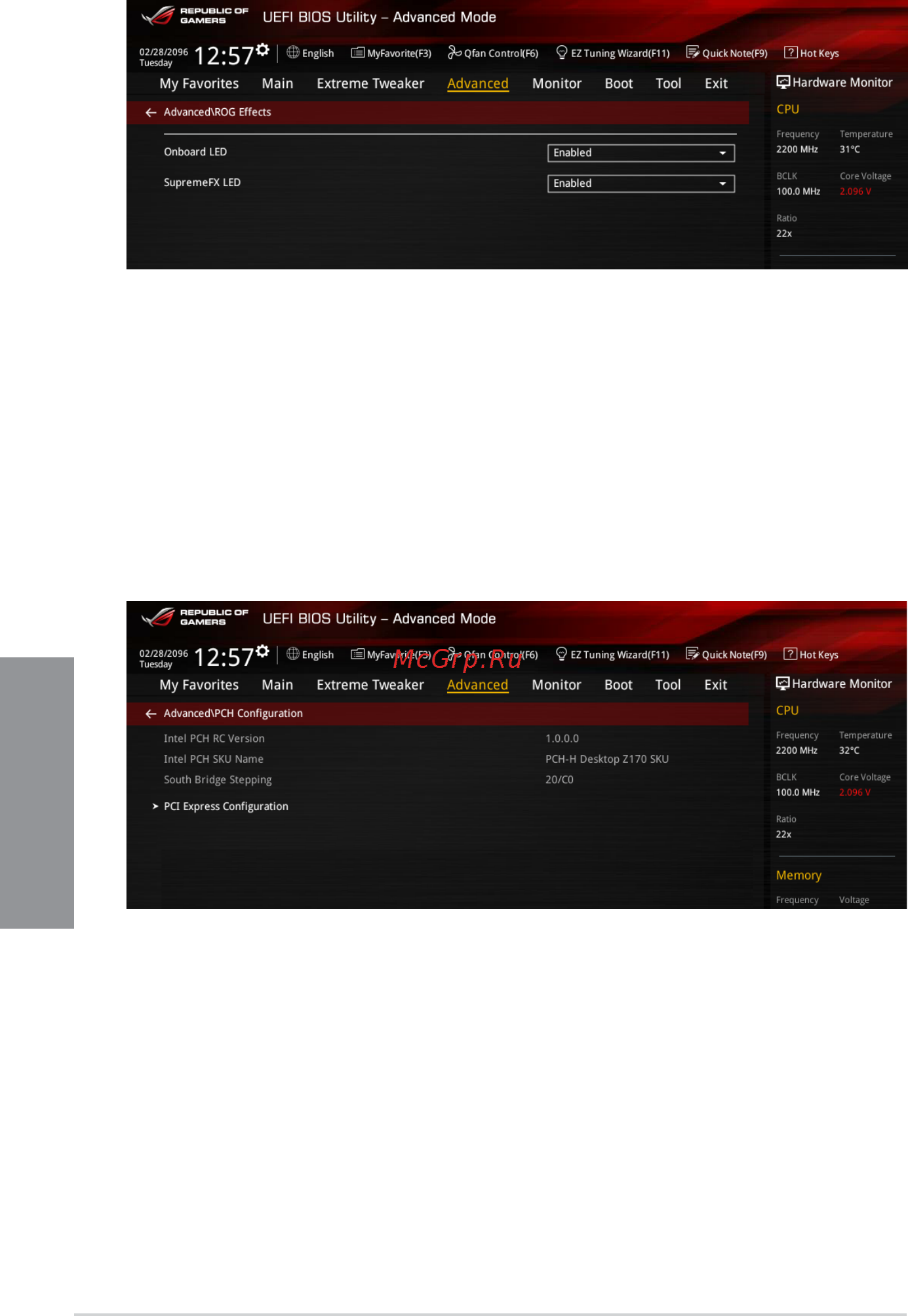

3.6.4 ROG Effects
Onboard LED [Enabled]
This item allows you to enable all the onboard LEDs.
Conguration options: [Enabled] [Disabled]
SupremeFX (ROG Audio) LED [Enabled]
This item allows you to enable ROG Audio LED.
Conguration options: [Enabled] [Disabled]
3.6.5 PCH Configuration
PCI Express Configuration
This item allows you to congure the PCI Express slots.
PCI-E Speed [Auto]
This item allows your system to automatically select the PCI Express port speed. When
set to [Gen1], the PCI-E port runs at PCI-E 1.0 speed. When set to [Gen2], the PCI-E
port runs at PCI-E 2.0 speed.
Conguration options: [Auto] [Gen1] [Gen2]
