Asus rog maximus viii ranger [168/200] Chapter 4
![Asus rog maximus viii ranger [168/200] Chapter 4](/views2/1162355/page168/bga8.png)
4-34
Chapter 4: Software Support
Chapter 4

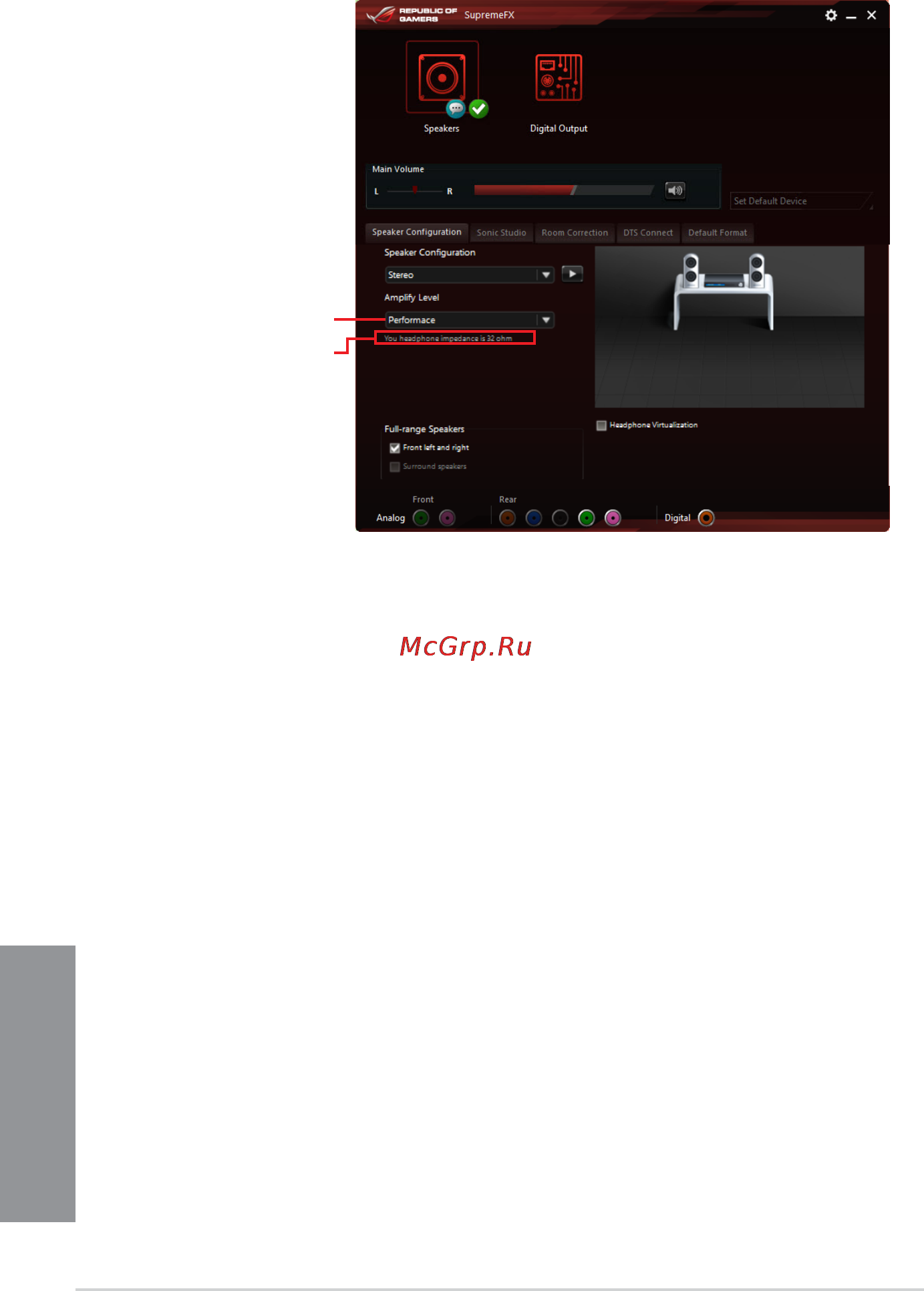

After you close the pop-window, Sonic SenseAmp enters speaker conguration and
displays the adjusted headphone impedance.
Click to manually adjust the
amplify level
Displays the impedance of
your headphone
