![Asus rog maximus viii ranger [122/200] Asus ez flash 3 utility](/img/pdf.png)
Asus rog maximus viii ranger [122/200] Asus ez flash 3 utility
![Asus rog maximus viii ranger [122/200] Asus ez flash 3 utility](/views2/1162355/page122/bg7a.png)
3-46
Chapter 3: BIOS Setup
Chapter 3

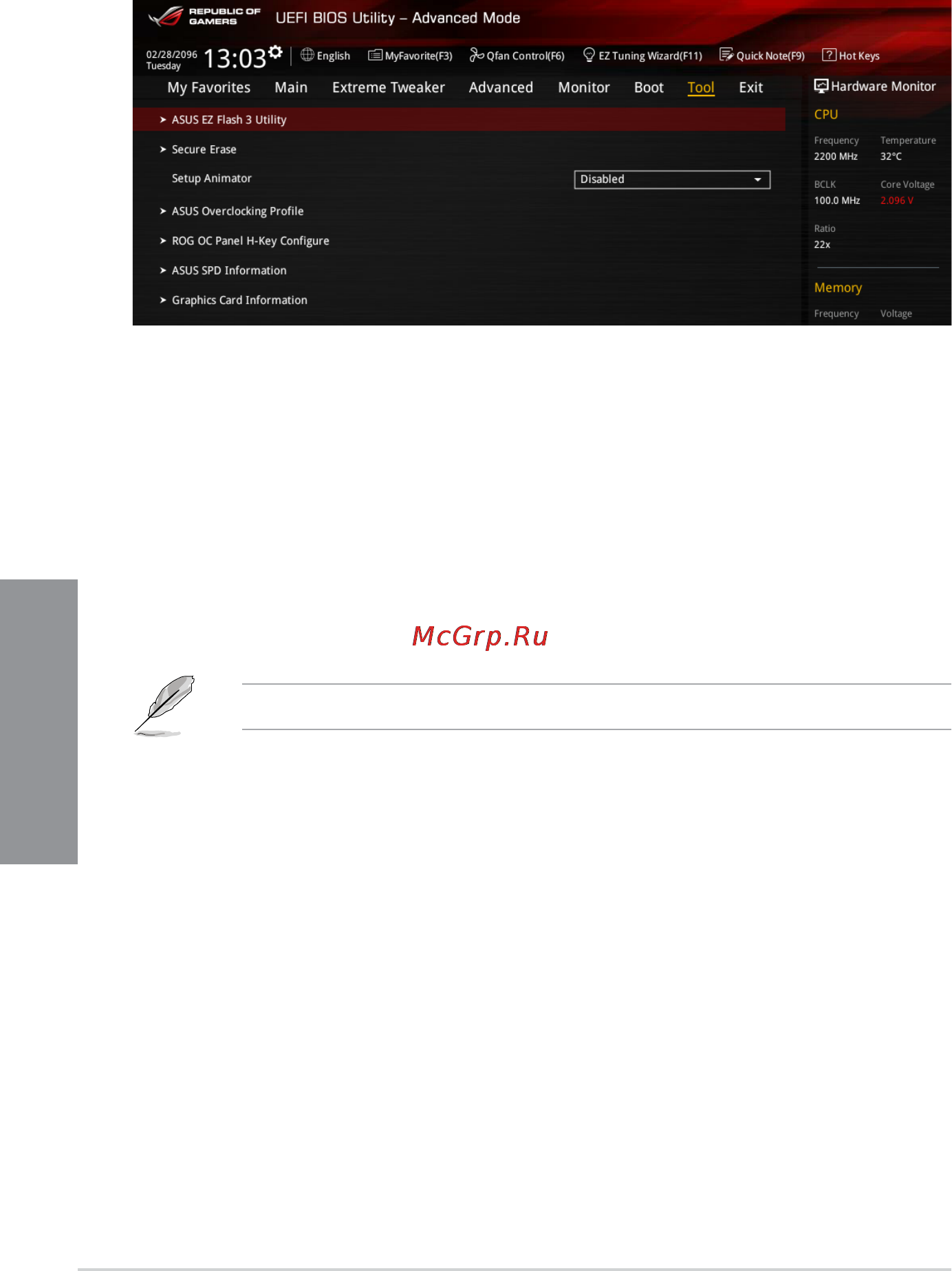

3.9 Tool menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the submenu.
Setup Animator [Disabled]
This item allows you to disable or enable the Setup Animator.
Conguration options: [Disabled] [Enabled]
3.9.1 ASUS EZ Flash 3 Utility
Allows you to run ASUS EZ Flash 3. When you press <Enter>, a conrmation message
appears. Use the Left/Right arrow key to select between [by USB] or [by Internet], then press
<Enter> to conrm your choice.
For more details, refer to section 3.11.2 ASUS EZ Flash 3.
