3-48
Chapter 3: BIOS Setup
Chapter 3

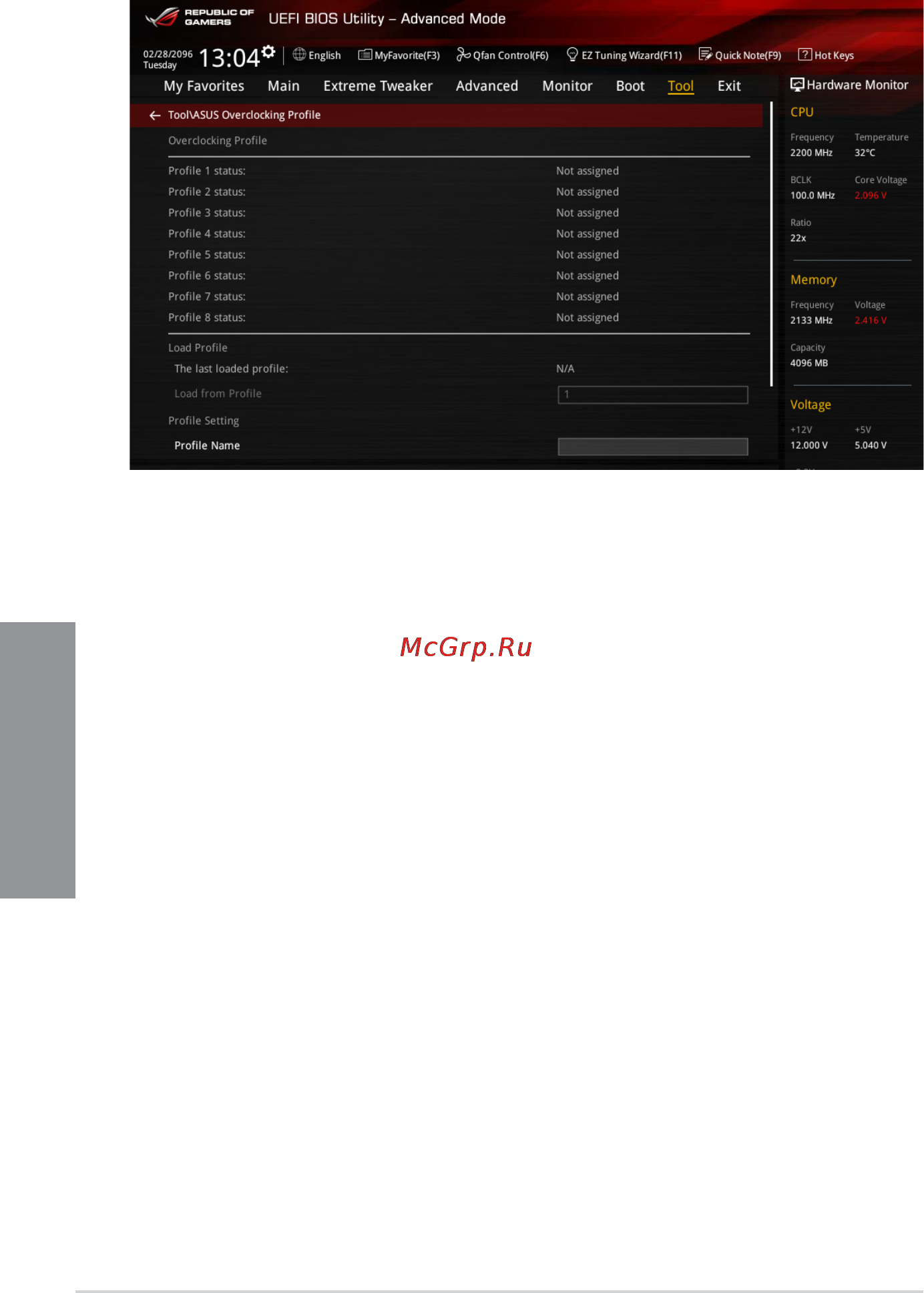

3.9.3 ASUS Overclocking Profile
This item allows you to store or load multiple BIOS settings.
Profile Name
Key in the prole name to save current BIOS settings to prole 1 to 8.
Save to Profile
Saves the current BIOS settings to prole number 1 to 8.
Load/Save Profile from/to USB Drive
Load/Save proles from/to an external USB Drive.
