ASUS MAXIMUS VIII RANGER
4-47
Chapter 4
Synchronizing backup files
After creating a junction point, RAMDisk automatically creates a backup folder in the le’s
original location. Use RAMDisk to manually synchronize updates with these backup les.

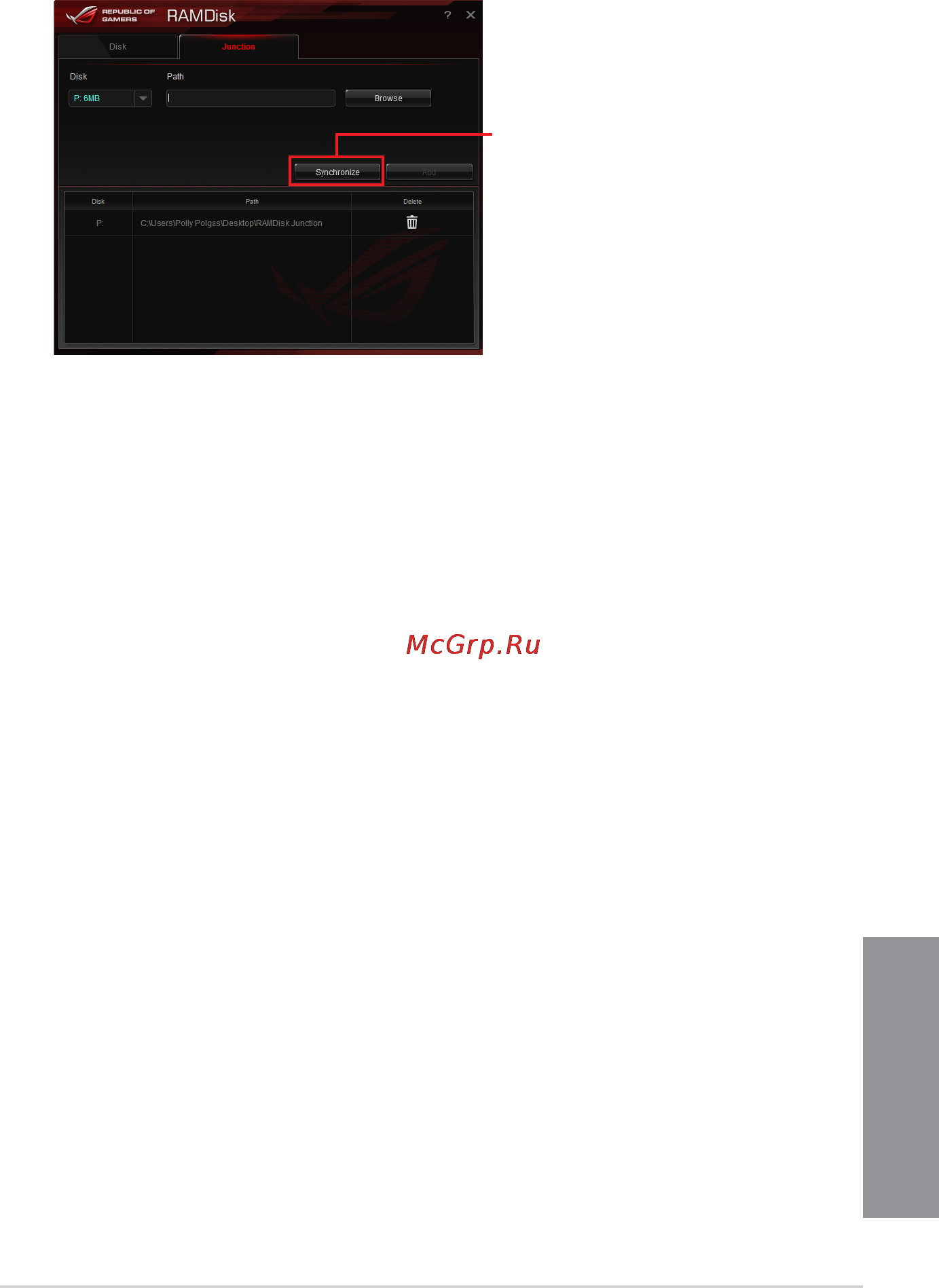

Click Synchronize to
update your files
