Chapter 2 Hardware Installation and Connection
GS1900 Series User’s Guide
23

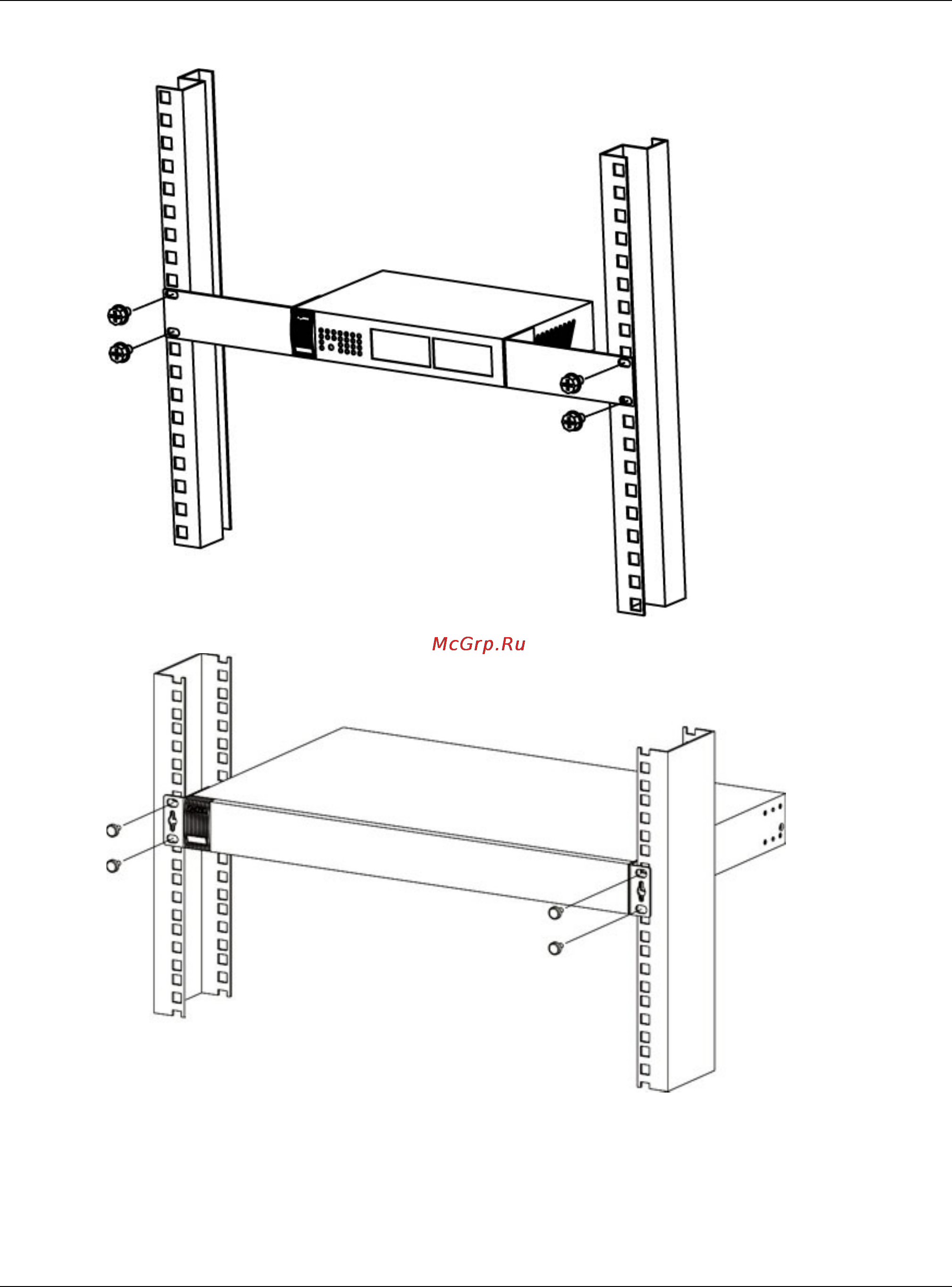

Figure 7 Mounting the Switch on a Rack (GS1900-16 and GS1900-24E)
Figure 8 Mounting the Switch on a Rack (GS1900-24, GS1900-24HP, GS1900-48, GS1900-48HP)
2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes
into the rack.
3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
