ZyWALL/USG Series Handbook

CHAPTER 1

Set Up Your Network

1.1 How to Get Started Using the Wizards

When you log into the Web Configurator for the first time or when you reset the ZyWALL/USG to its

default configuration, the Installation Setup Wizard screen displays. This is an example of using

ZyWALL/USG Wizards to configure Internet connection settings, wireless settings and device

registration services.

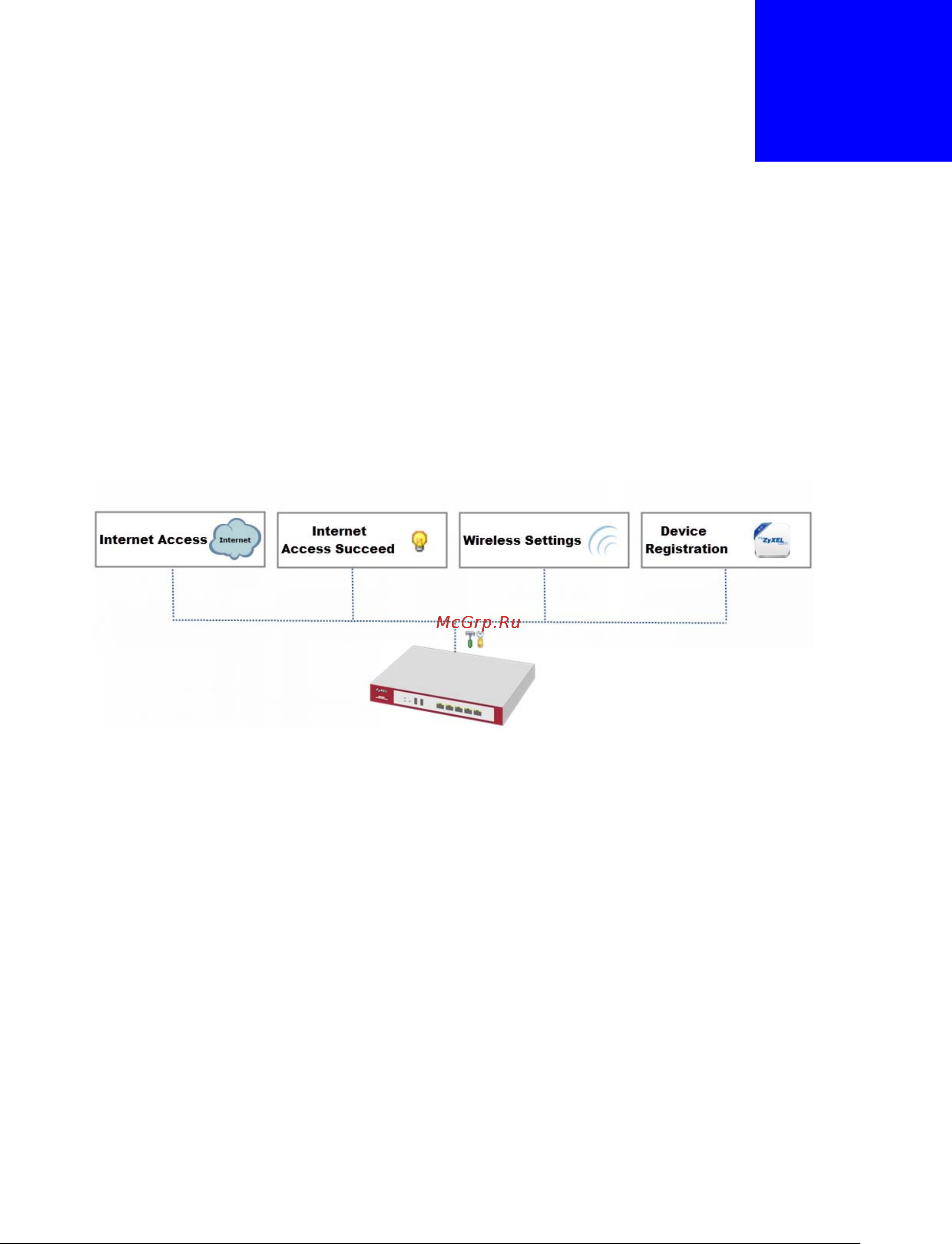

Figure 1 ZyWALL/USG with Installation Setup Wizard Example

Note: You need Internet access to activate your ZyWALL/USG subscription services. This

example was tested using USG310 (Firmware Version: ZLD 4.13).
