Zyxel USG 60 [66/327] Test the result

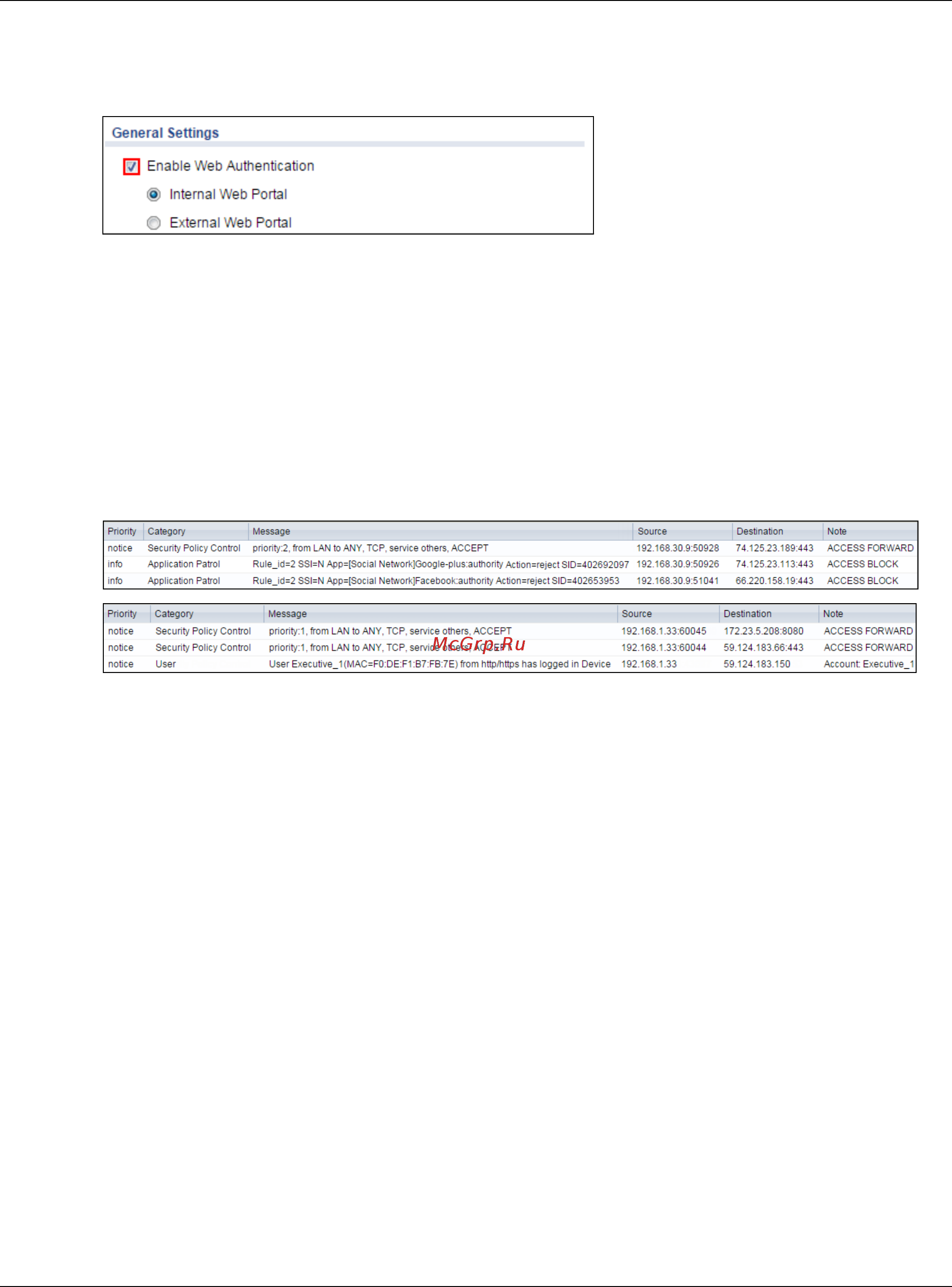

![Zyxel USG 60 [66/327] Test the result](/views2/1169223/page66/bg42.png)
Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
66
2 In the ZyWALL/USG, go to CONFIGURATION > Web Authentication > General Settings and
select Enable Web Authentication.
Figure 110 CONFIGURATION > Web Authentication > General Settings
3.3.4 Test the Result
1 Connect to the Internet from two computers: one from Executive_1 and one from an employee
address (192.168.30.9).
2 Go to the ZyWALL/USG Monitor > Log, you will see [notice] log message such as below. In this
example result, a connection from Executive_1 has user login message and always with ACCESS
FORWARD information. A connection from employee address (192.168.30.9) and some of the
services are with ACCESS BLOCK information
Figure 111 Monitor > Log
3.3.5 What Could Go Wrong?
If you are not be able to configure any UTM policies or it’s not working, there are two possible
reasons:
• You have not subscribed for the UTM service.
• You have subscribed for the UTM service but the license is expired.
You can click the link from the CONFIGURATION > Licensing > Registration screen of your
ZyXEL device’s Web Configurator or click the myZyXEL.com 2.0 icon from the portal page (https://
portal.myzyxel.com/) to register or extend your UTM license.
