Chapter 1 Set Up Your Network
ZyWALL/USG Series Handbook
34
1.4.3 Test the Result
Type http://172.251.31.90/ into the browser, it displays the HTTP service page.

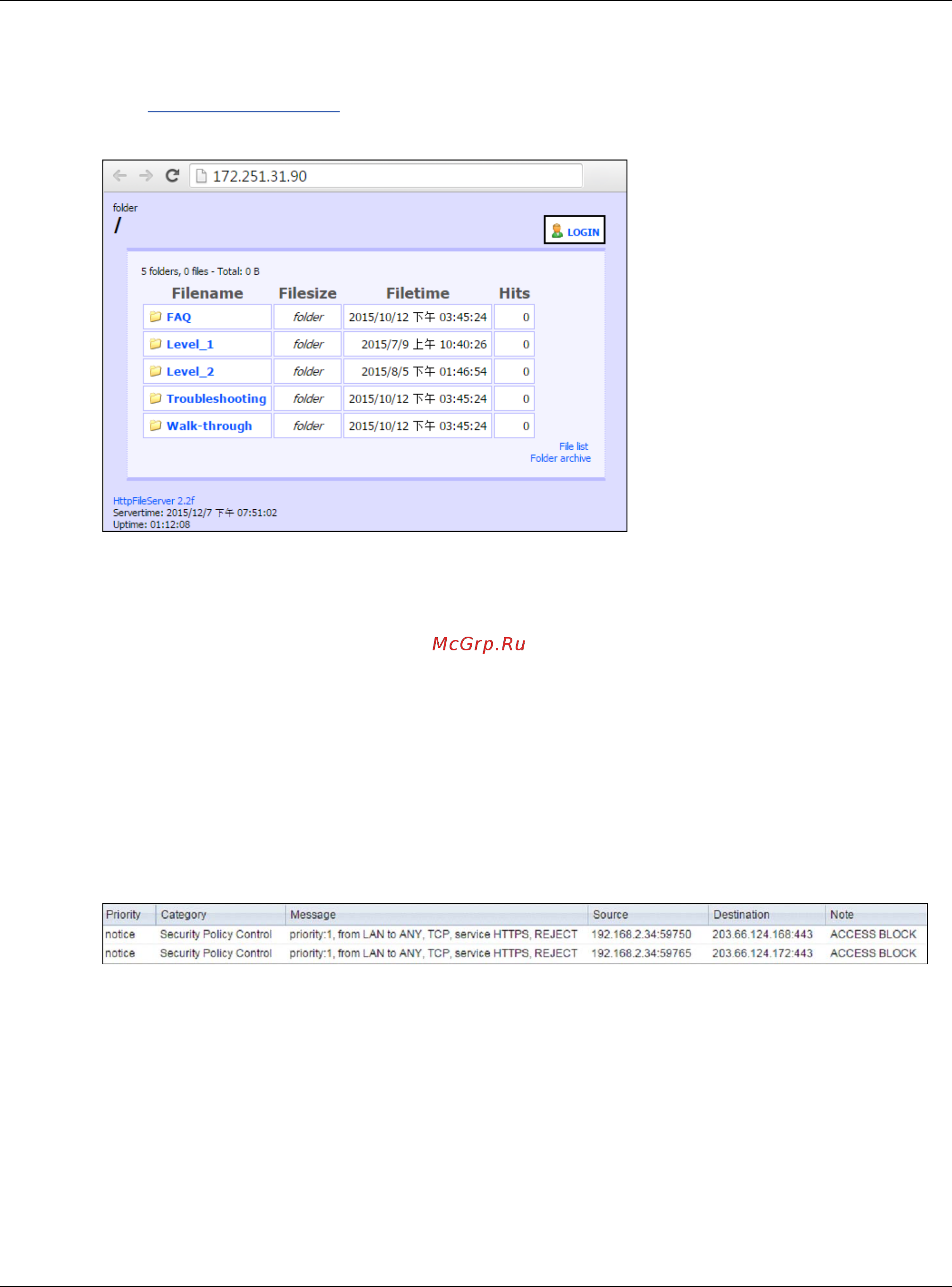

Figure 32 HTTP Service Page
1.4.4 What Could Go Wrong?
1 If you cannot access your server via public IP address, please make sure all your public IP
addresses are routing properly. To do one by one assign them to the ZyWALL/USG’s WAN port. Test
to make sure you have internet access with the public IP address.
2 If you cannot access the ZyWALL/USG from the internet with any IP address on your public IP, this
is a routing issue on the service end. Please contact the ISP to fix the routing for the public IPs.
3 If you see [notice] log message as below, the HTTPS traffic is blocked by the priority 1 Security
Policy. The ZyWALL/USG checks the security policy in order and applies the first security policy the
traffic matches. If the HTTPS traffic matches a policy that comes earlier in the list, it may be
unexpectedly blocked. Please change your policy setting or move the policy to the higher priority.
Figure 33 Monitor > Log
Note: The default setting of Security Policy is without log notification (except
PolicyDefault), if you want to check which policy may potentially block the traffic,
please select this policy and set the Log matched traffic to be log or log alert.
