Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
79

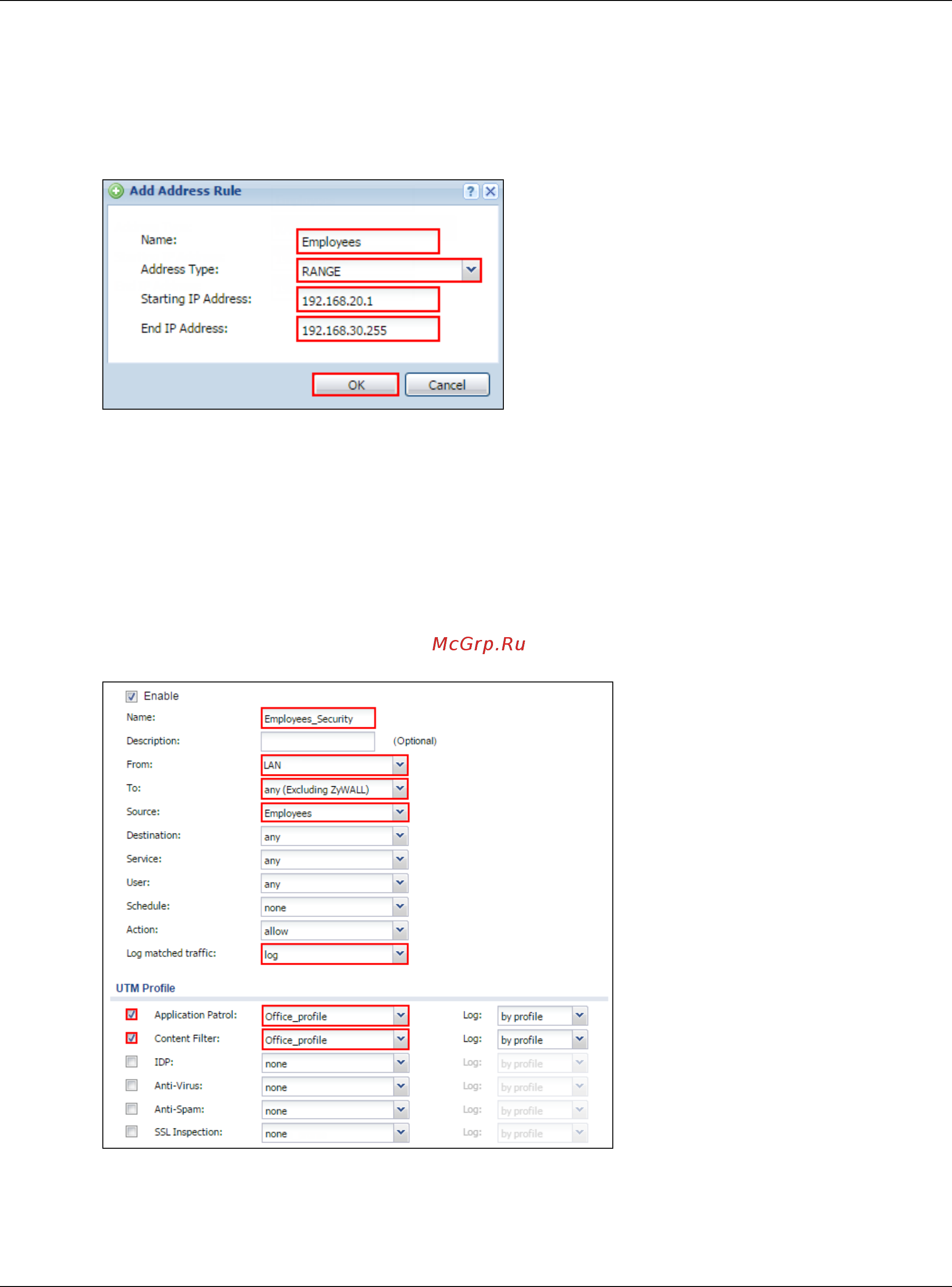

3.6.1 Set Up the Security Policy on the ZyWALL/USG for Employees
1 In the ZyWALL/USG, go to CONFIGURATION > Object > Address > Add Address Rule to
create address range for employees.
Figure 137 CONFIGURATION > Object > Address > Add Address Rule
2 Set up Security Policy for employees, go to CONFIGURATION > Security Policy > Policy
Control > Add corresponding, configure a Name for you to identify the employees’ Security
Policy profile.
For From and To policies, select the direction of travel of packets to which the policy applies. Select
Source to be the Employees to apply the policy to all traffic coming from them.
Scroll down to UTM Profile, select the general policy that allows employees to access the Internet.
(Using built-in Office profile in this example blocks the non-productive services, such as
Advertisement & Pop-Ups, Gambling and Peer to Peer services…etc.).
Figure 138 CONFIGURATION > Security Policy > Policy Control > Add corresponding >
Employees_Security
