Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
61
3.2.7 Test the Result
1 Type http://www.youtube.com/ or https://www.youtube.com/ into the browser. An error message
occurs.

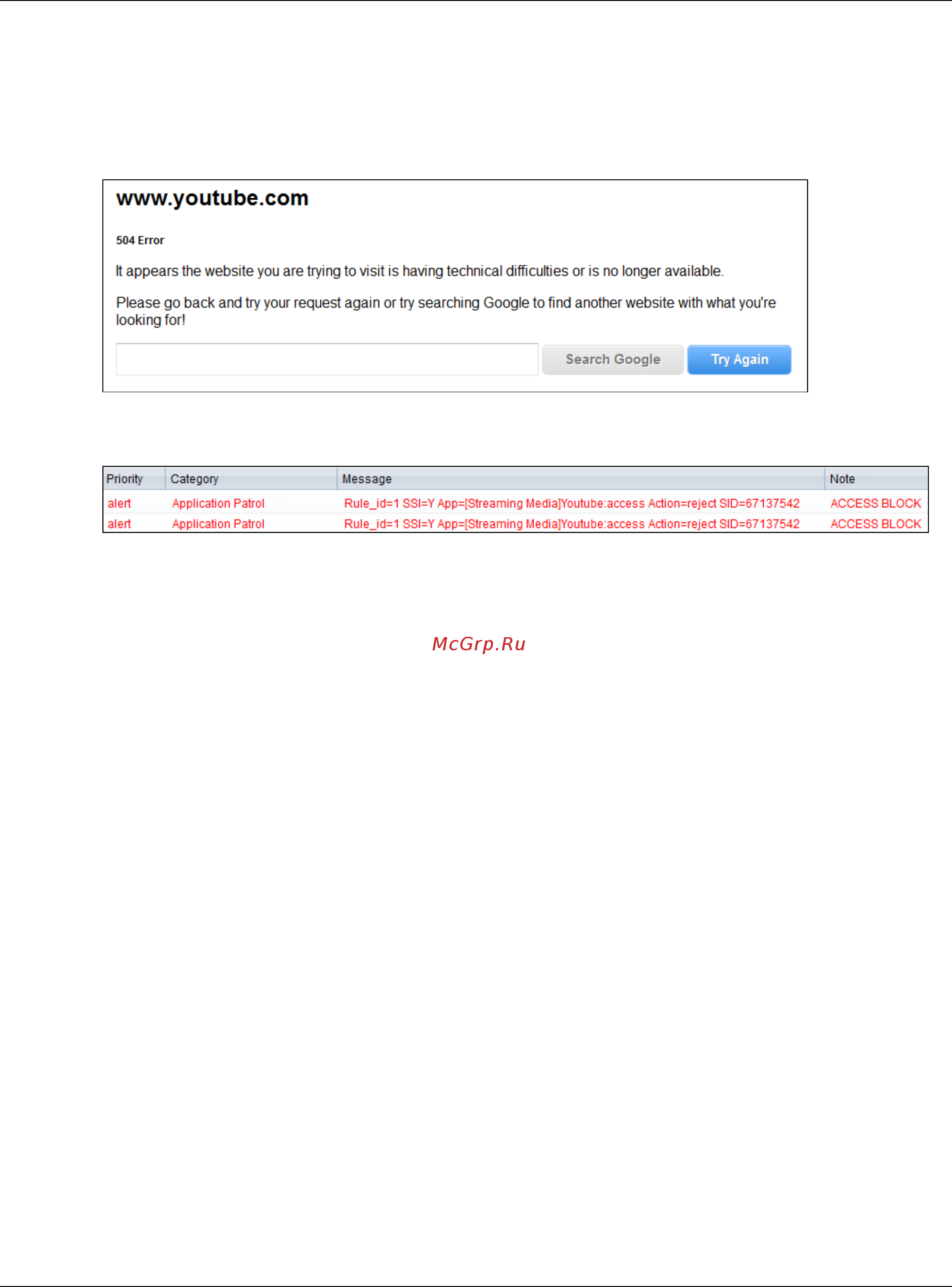

Figure 101 Failed to Access Youtube
2 Go to the ZyWALL/USG Monitor > Log, you will see [alert] log message such as below.
Figure 102 MONITOR > Log
3.2.8 What Could Go Wrong?
1 If you are not be able to configure any Application Patrol policies or it’s not working, there are
two possible reasons:
1a You have not subscribed for the Application Patrol service.
1b You have subscribed for the Application Patrol service but the license is expired.
You can click the link from the CONFIGURATION > Licensing > Registration screen of your
ZyXEL device’s Web Configurator or click the myZyXEL.com 2.0 icon from the portal page (https://
portal.myzyxel.com/) to register or extend your Application Patrol license.
2 After you apply the Application Patrol service, the running session will continue till it’s finished.
