Zyxel USG 60 [202/327] Test the ipsec vpn tunnel

Zyxel USG 40 [202/327] Test the ipsec vpn tunnel

Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

202

4.8.14 Test the IPSec VPN Tunnel

1 Go to ZyWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click Connect

on the upper bar. The Status connect icon is lit when the interface is connected.

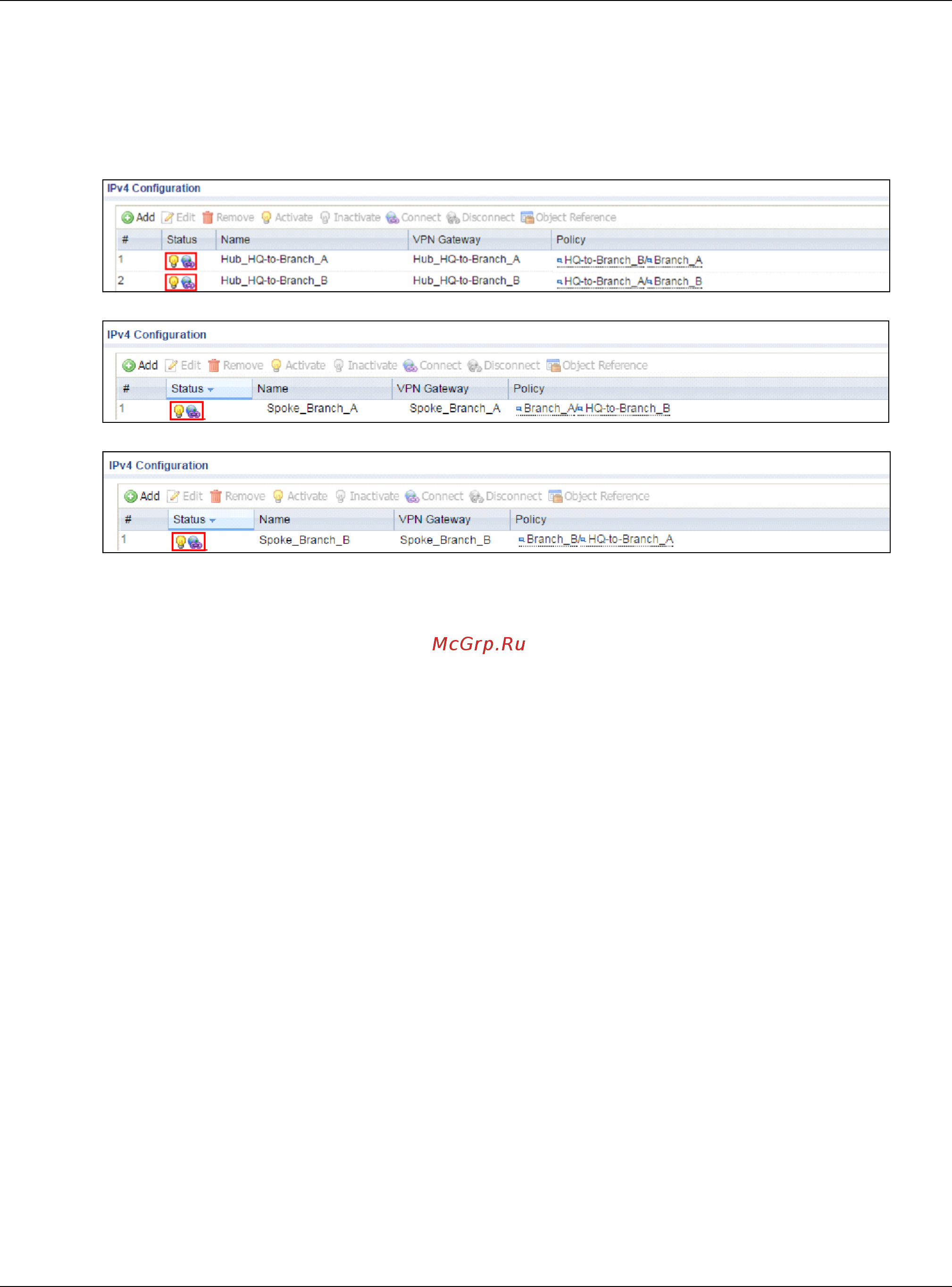

Figure 424 Hub_HQ > CONFIGURATION > VPN > IPSec VPN > VPN Connection

Figure 425 Spoke_Branch_A > CONFIGURATION > VPN > IPSec VPN > VPN Connection

Figure 426 Spoke_Branch_B > CONFIGURATION > VPN > IPSec VPN > VPN Connection
