Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
80
3.6.2 Set Up the Security Policy on the ZyWALL/USG for Executives

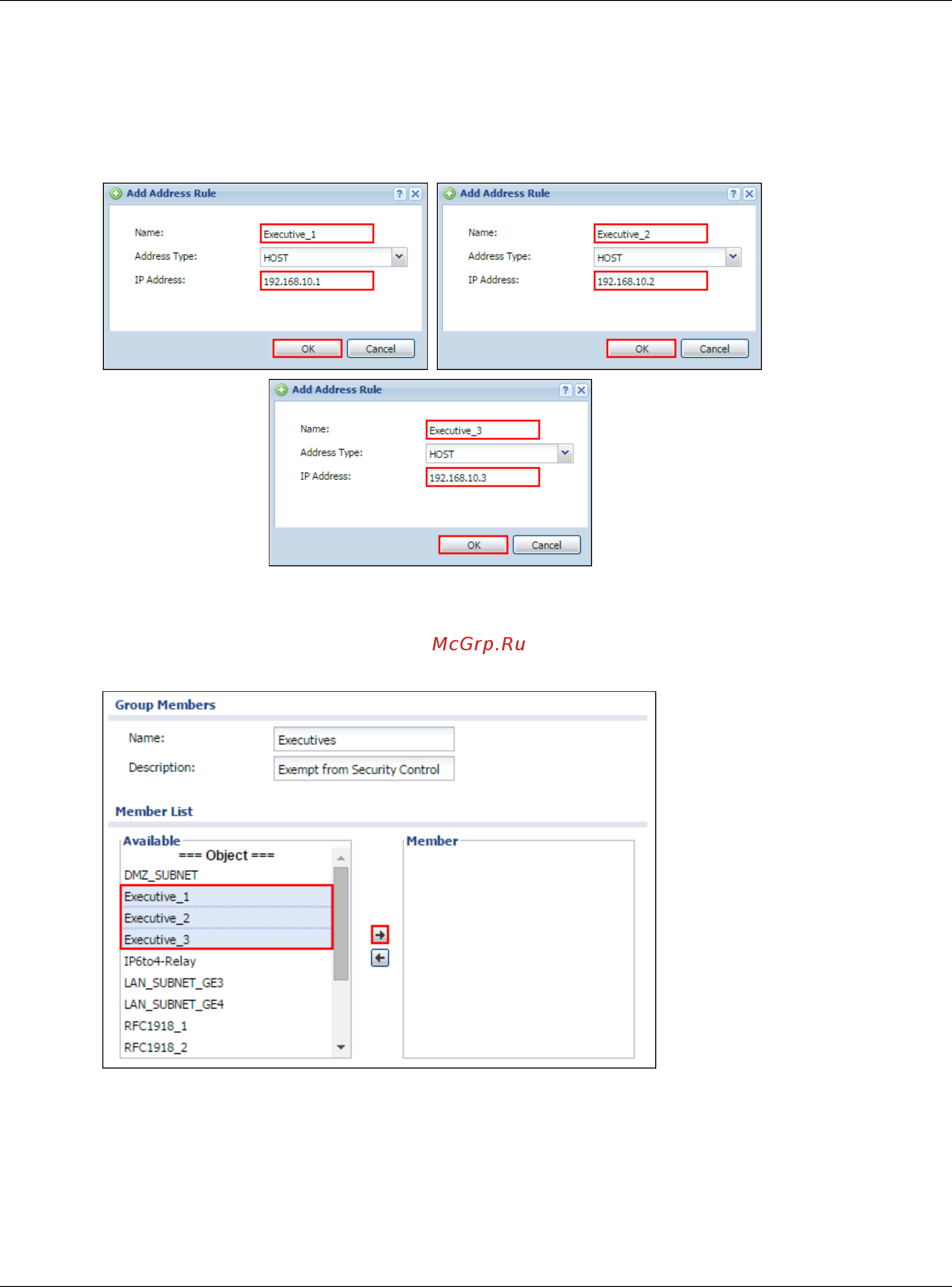

1 In the ZyWALL/USG, go to CONFIGURATION > Object > Address > Add Address Rule to
create address for each executives.
Figure 139
CONFIGURATION > Object > Address > Add Address Rule
2 Then, go to CONFIGURATION > Object > Address Group > Add Address Group Rule to
create a Group Members’ Name and move the just created executives address object to
Member.
Figure 140 CONFIGURATION > Object > Address Group > Add Address Group Rule
3 Set up Security Policy for executives, go to CONFIGURATION > Security Policy > Policy
Control > Add corresponding, configure a Name for you to identify the executives’ Security
Policy profile.
4 For From and To policies, select the direction of travel of packets to which the policy applies. Select
Source to be the Executives to apply the policy to all traffic coming from them. In order to view
the results later, to have the ZyWALL/USG generate Log matched traffic (log).
