Zyxel USG 60 [184/327] Hub_hq concentrator

Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

184

4.8.4 Hub_HQ Concentrator

In the ZyWALL/USG, go to CONFIGURATION > VPN > IPSec VPN > Concentrator, add a VPN

Concentrator rule. Select VPN tunnels to be in the same member group and click Save.

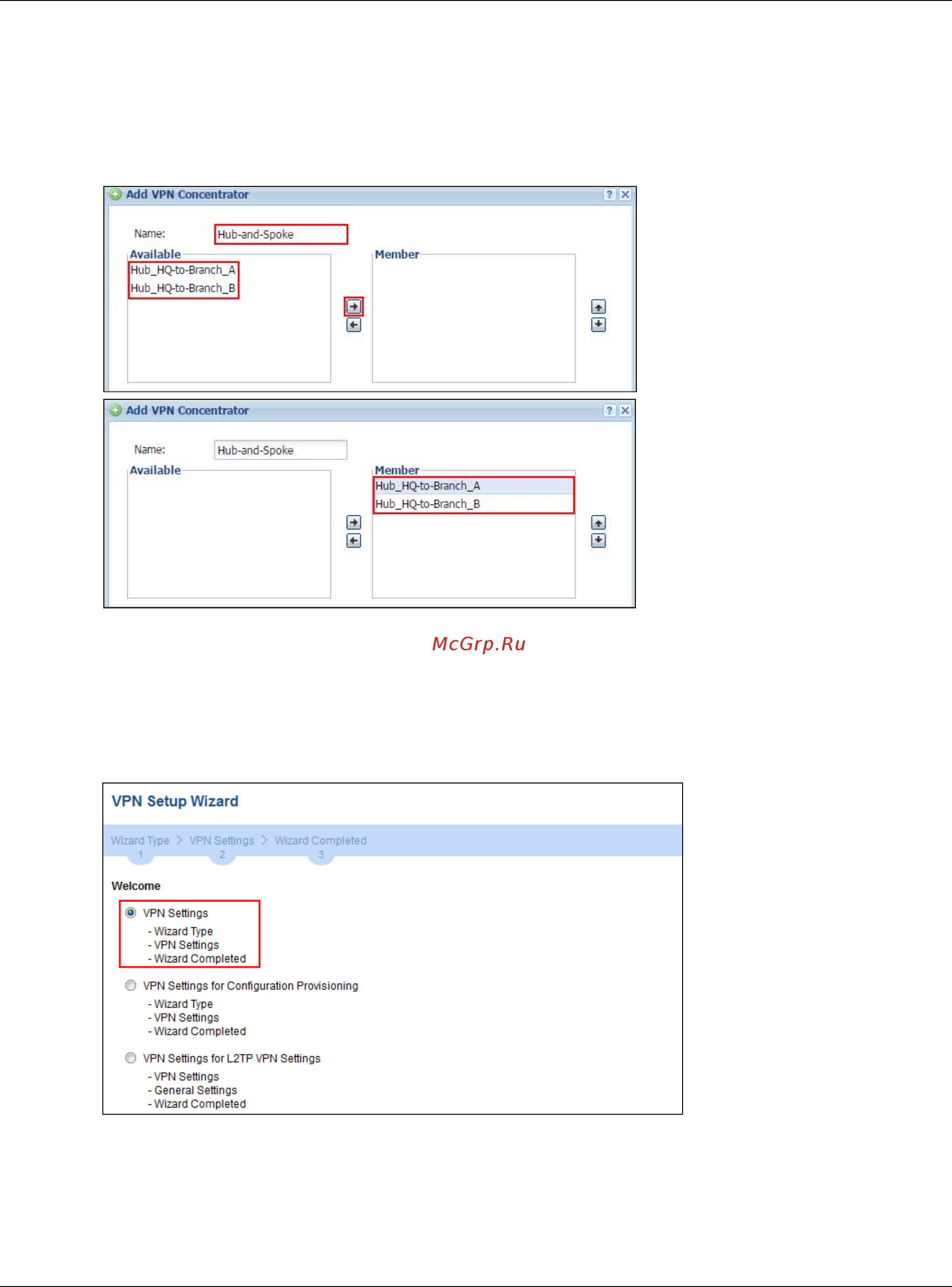

Figure 382 Add a VPN Concentrator Rule

4.8.5 Spoke_Branch_A

1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN

Settings wizard to create a VPN rule that can be used with the remote ZyWALL/USG. Click Next.

Figure 383 Quick Setup > VPN Setup Wizard > Welcome
