Chapter 6 Configure IPv6
ZyWALL/USG Series Handbook
293
6.2.2 Set Up the 6to4 Tunnel on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Network > Interface > Tunnel > Add, Select
Enable. Enter tunnel0 as the Interface Name and select 6to4 as the Tunnel Mode. In the 6to4
Tunnel Parameter section, this example just simply uses the default 6to4 Prefix, 2002:://16.
Enter your Relay Router’s IP address (192.88.99.1 in this example). Select wan1 as the
Gateway. Click OK.

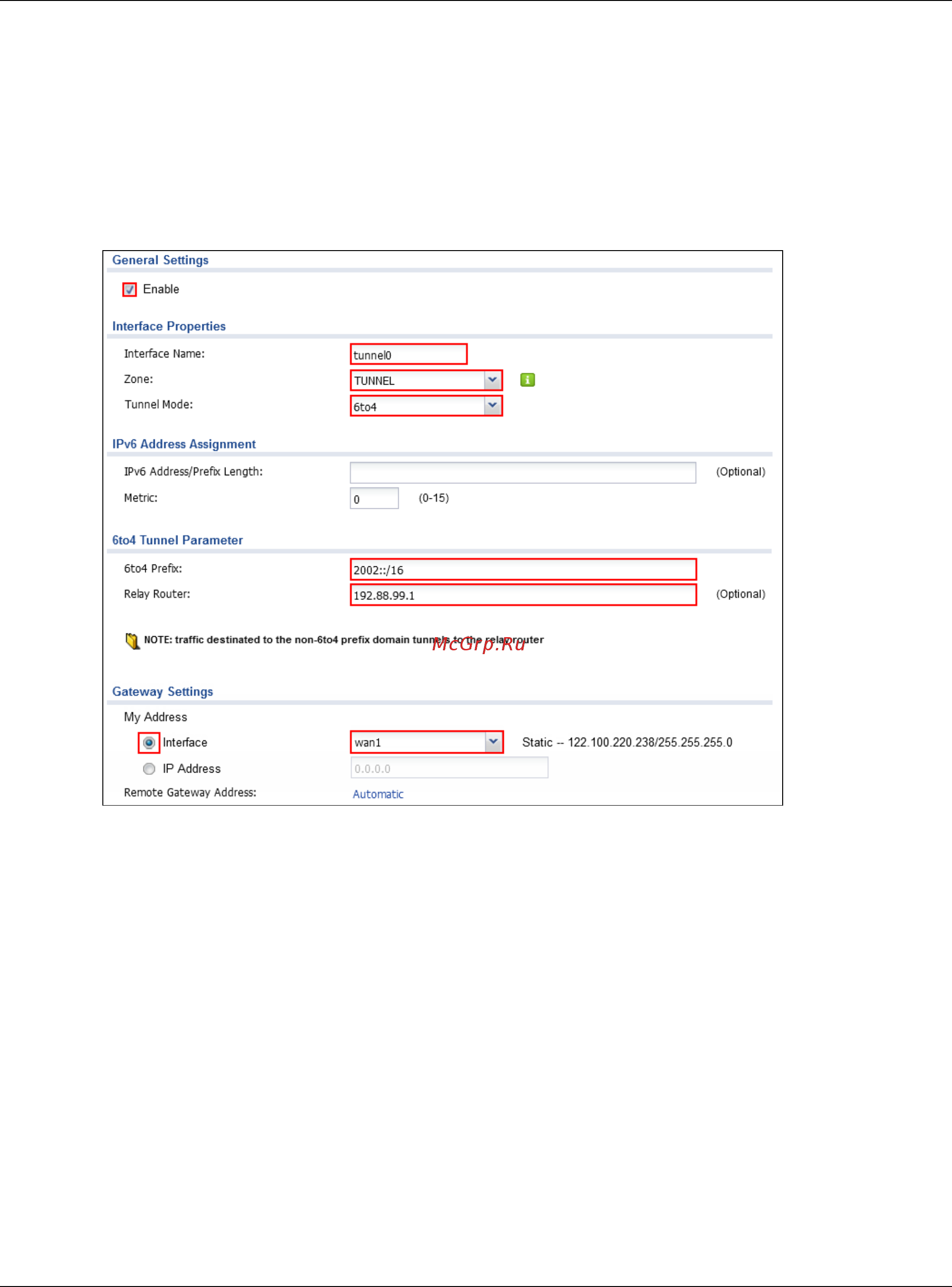

Figure 634 CONFIGURATION > Network > Interface > Tunnel
6.2.3 Test the Result
1 Connect a computer to the ZyWALL/USG’s LAN1.
2 Enable IPv6 support on your computer. In Windows XP, you need to use the IPv6 install command in
a Command Prompt. In Windows 7, IPv6 is supported by default. You can enable IPv6 in the
Control Panel > Network and Sharing Center > Local Area Connection screen.
