Chapter 7 Manage Your Network Traffic
ZyWALL/USG Series Handbook
318
7.5.4 Set Up the Bandwidth Management for FTP on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > BWM > Configuration > Add Policy, select
Enable and type FTP Any-to-Any as the policy’s Description.
Leave the Incoming Interface to any and select the Outgoing Interface to be WAN1. Select
Service Type to be the Service Object and select FTP from the list box.
Set the Guaranteed Bandwidth Inbound to 150 (kbps) and set Priority 5. Set the Maximum to
200 (kbps). Set the Guaranteed Bandwidth Outbound to 150 (kbps) and set Priority 5. Set the
Maximum to 200 (kbps). Click OK to return to the General screen.

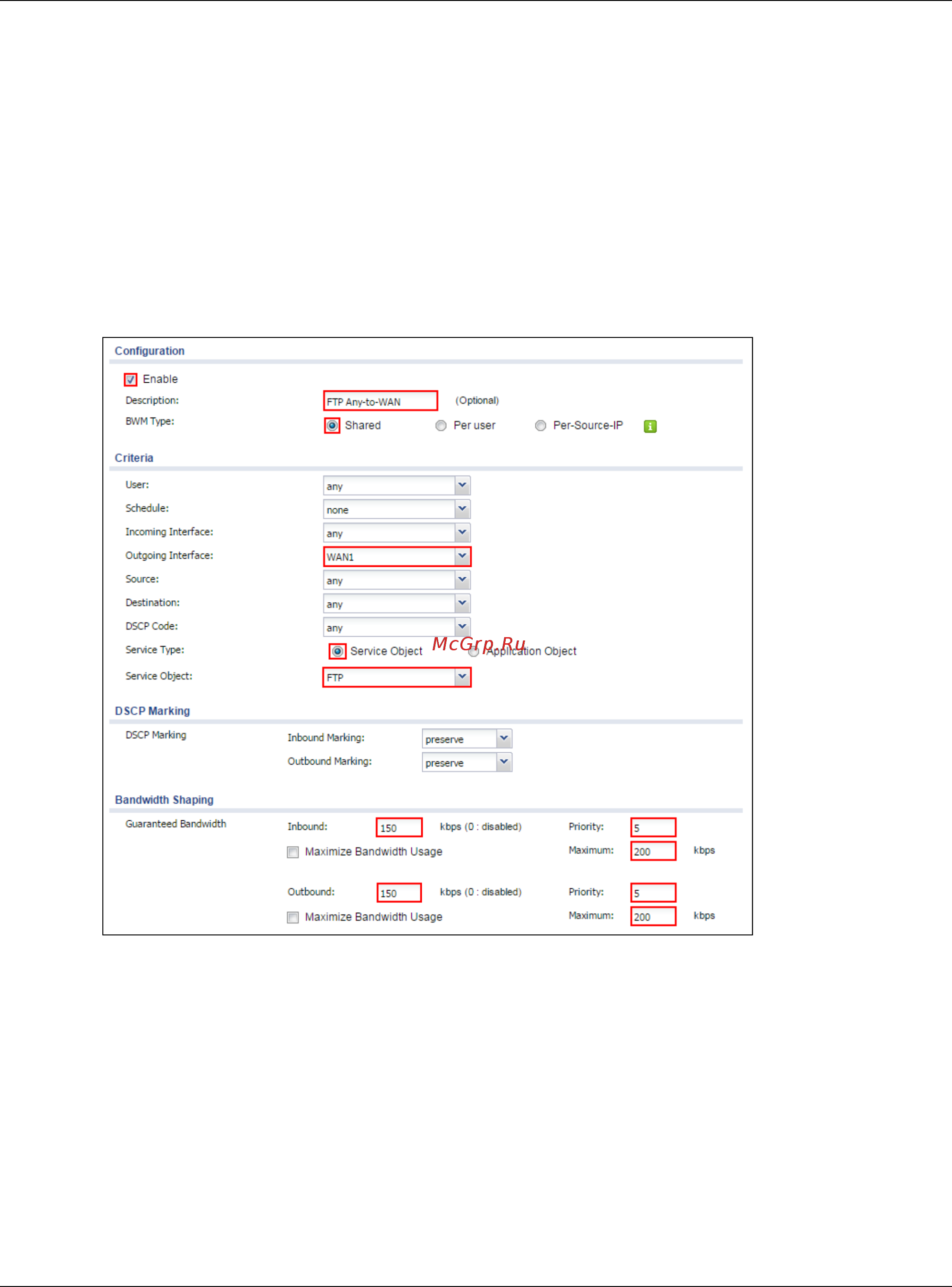

Figure 676 CONFIGURATION > BWM > Configuration > Add Policy
Note: In Bandwidth Shaping, the highest priority is (1) the lowest priority is (7).
