Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
232
7 If some of the traffic from the L2TP clients need to go to the Internet, create a policy route to send
traffic from the L2TP tunnels out through a WAN trunk. Set Incoming to Tunnel and select your
L2TP VPN connection. Set the Source Address to be the L2TP address pool. Set the Next-Hop
Type to Trunk and select the appropriate WAN trunk.

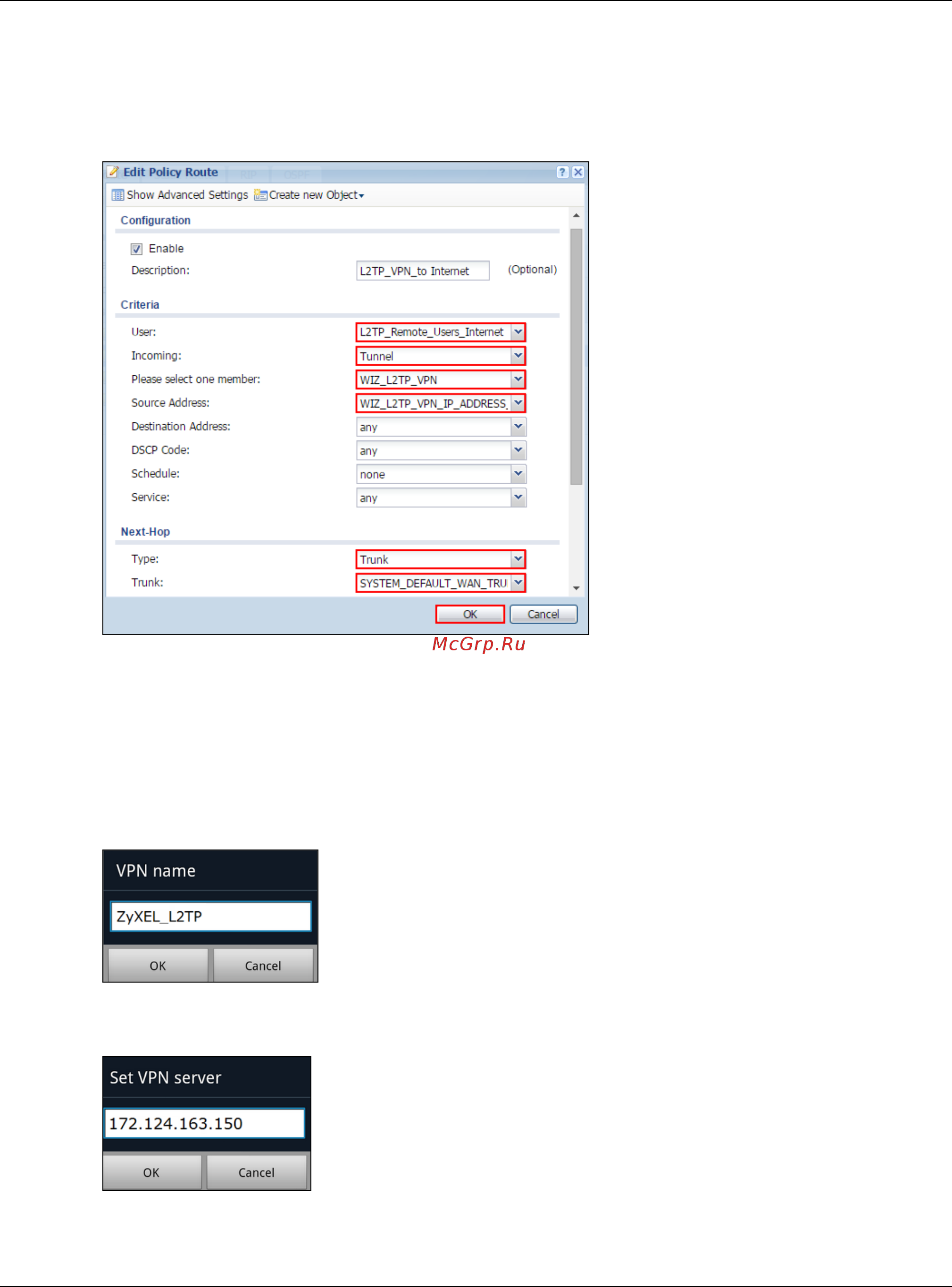

Figure 495 CONFIGURATION > Network > Routing > Policy Route
5.2.2 Set Up the L2TP VPN Tunnel on the Android Device
1 To configure L2TP VPN on an Android device, go to Menu > Settings > Wireless & Networks >
VPN settings > Add VPN > Add L2TP/IPSec PSK VPN and configure as follows.
2 VPN name is for the user to identify the VPN configuration.
Figure 496 Fill in the VPN Name
3 Set VPN server to the ZyWALL/USG’s WAN IP address.
Figure 497 Fill in the IP Address
