Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

233

4 Set IPSec pre-shared key to the pre-shared key of the IPSec VPN gateway the ZyWALL/USG uses

for L2TP VPN over IPSec (zyx12345 in this example).

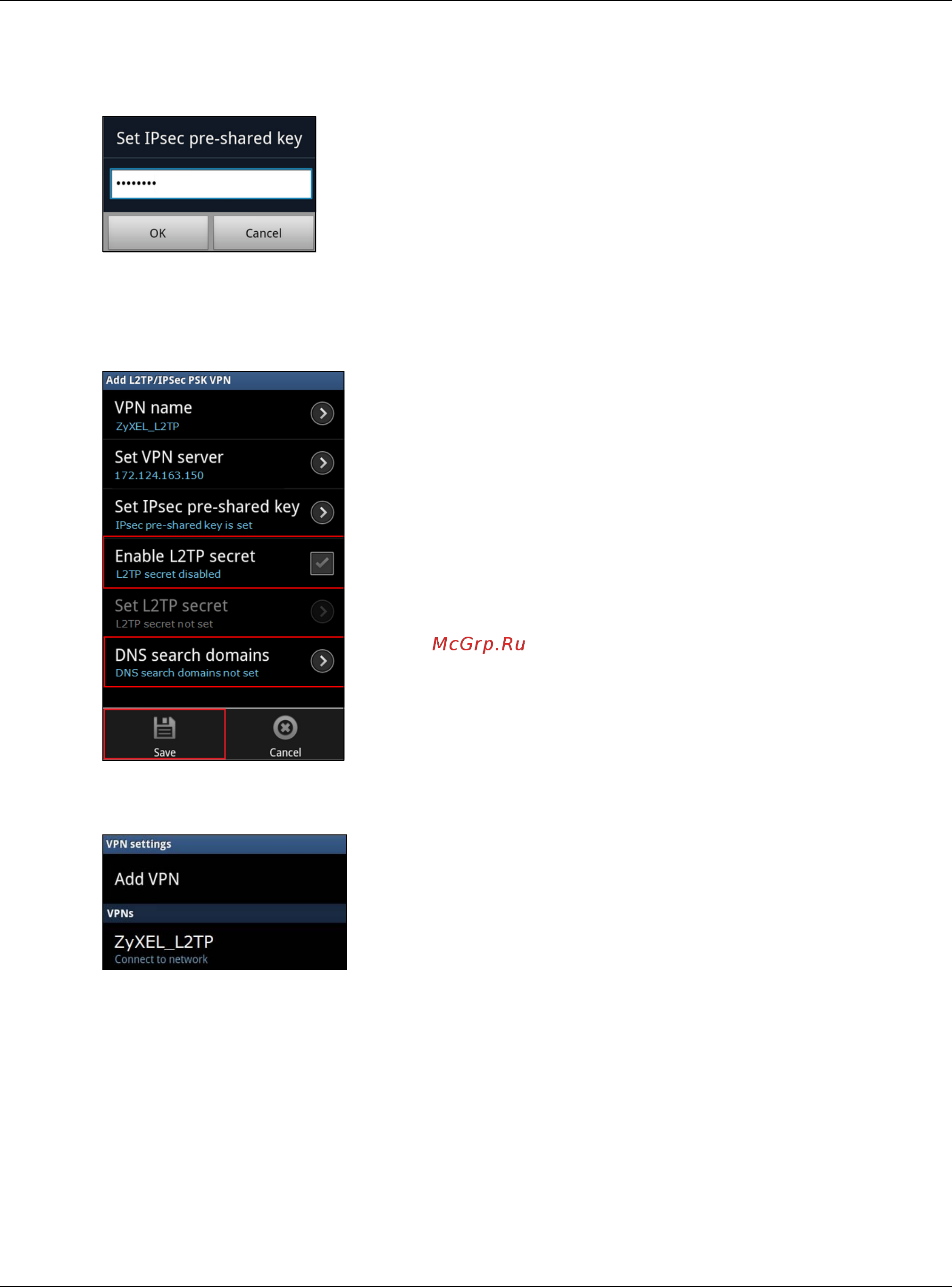

Figure 498 Set IPSec Pre-shared Key

5 Leave Enable L2TP secret disabled as default and turn on DNS search domains if you need to

use the internal DNS servers once your connection is made, enter the DNS server address here.

Click Save.

Figure 499 Configure the L2TP VPN

6 Click the VPN rule ZyXEL_L2TP to begin the VPN connection.

Figure 500 Click the VPN Rule to Begin the VPN Connection
