Руководство по установке Страница: 249

Zyxel USG 60 [249/327] Default p12

Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

249

3 Save default certificate as *.p12 file to Windows 10 computer.

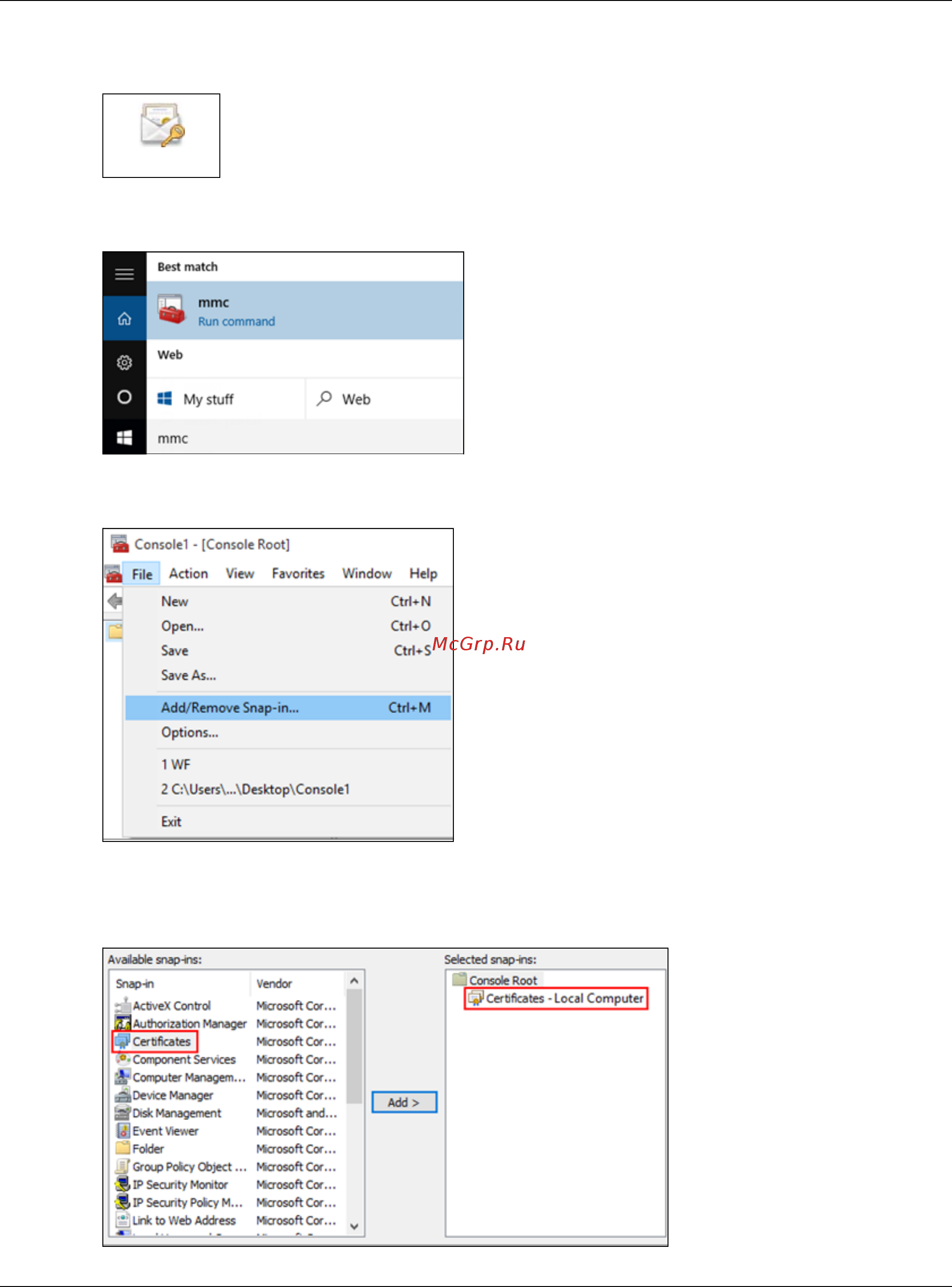

Figure 539 Save Default Certificate as default.p12

4 In Windows 10 Operating System, go to Start Menu > Search Box. Type mmc and press Enter.

Figure 540 Start Menu > Search Box > mmc

5 In the mmc console window, click File > Add/Remove Snap-in...

Figure 541 File > Add/Remove Snap-in...

6 In the Available snap-ins, select Certificates click Add. Then, click Finished.

Press OK to close the Snap-ins window.

Figure 542 Available snap-ins > Certificates > Add

default.p12
