Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
82
2 In the ZyWALL/USG, go to CONFIGURATION > Web Authentication > General Settings and
select Enable Web Authentication.

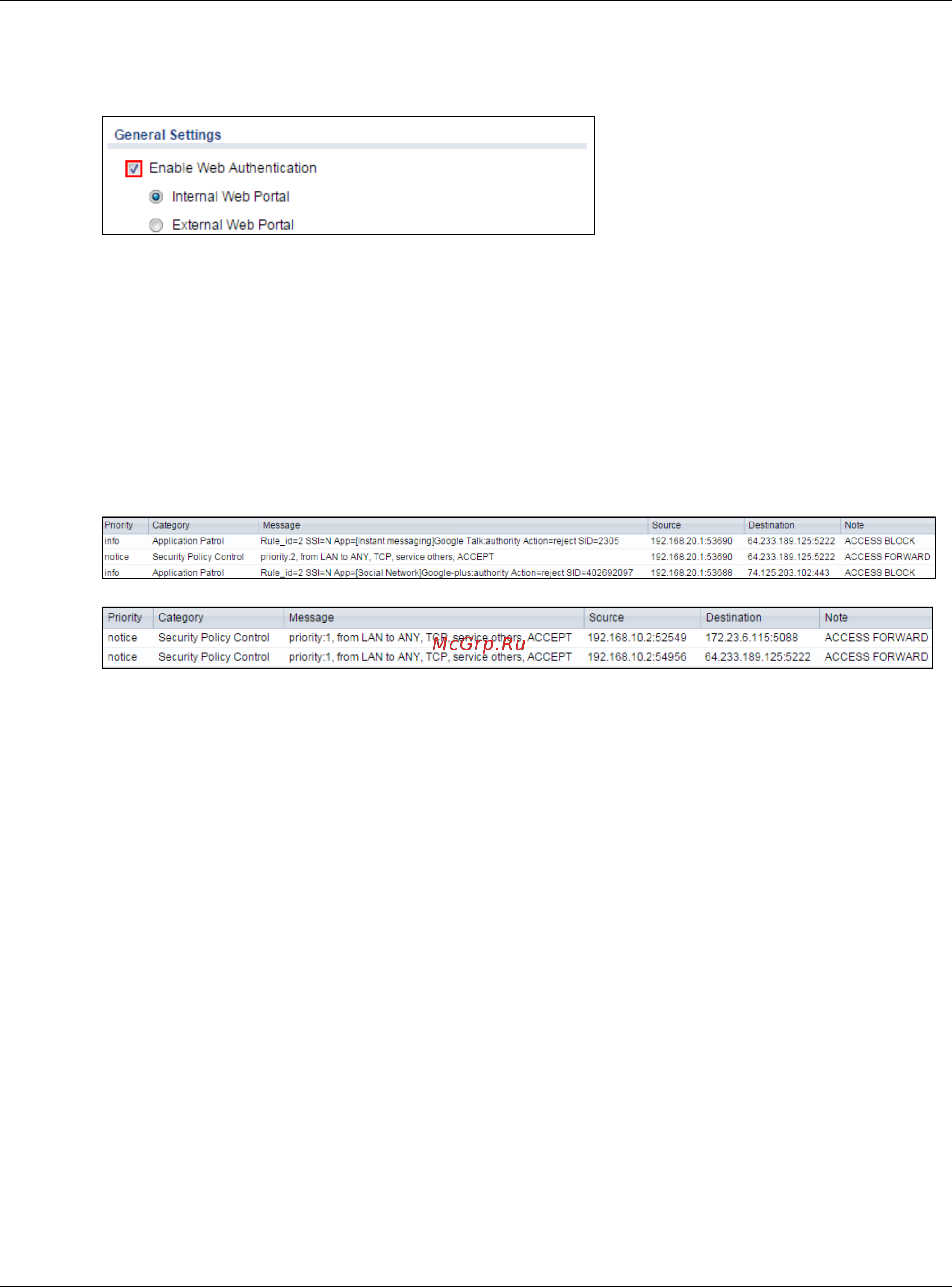

Figure 143 CONFIGURATION > Web Authentication > General Settings
3.6.4 Test the Result
1 Connect to the Internet from two computers: one from executive_2 address (192.168.10.2) and
one from an employee address (192.168.20.1) and both access to https://hangouts.google.com/.
2 Go to the ZyWALL/USG Monitor > Log, you will see [notice] and [info] log message such as below.
In this example result, connections from executive_2 address (192.168.10.2) use Security Policy
priority: 1. Connections from employee address (192.168.20.1) use Security Policy priority: 2
and UTM Profile Rule_id=2.
Figure 144 Logs of Connections from 192.168.20.1
Figure 145 Logs of Connections from 192.168.10.2
3.6.5 What Could Go Wrong?
If you are not be able to configure any UTM policies or it’s not working, there are two possible
reasons:
• You have not subscribed for the UTM service.
• You have subscribed for the UTM service but the license is expired.
You can click the link from the CONFIGURATION > Licensing > Registration screen of your
ZyXEL device’s Web Configurator or click the myZyXEL.com 2.0 icon from the portal page (https://
portal.myzyxel.com/) to register or extend your UTM license.
