Chapter 1 Set Up Your Network
ZyWALL/USG Series Handbook
33
1.4.1 Set Up the NAT on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Network > NAT > add NAT, select Enable
Rule. Select 1:1 NAT. Set Incoming Interface to be the wan1 interface. Type User-Defined
Original IP (172.251.31.90 in this example) and type User-Defined Mapped IP
(192.168.1.34 in this example). Set Port Mapping Type to Service, set Original Service and
Mapped Service to HTTP in this example. Click OK.

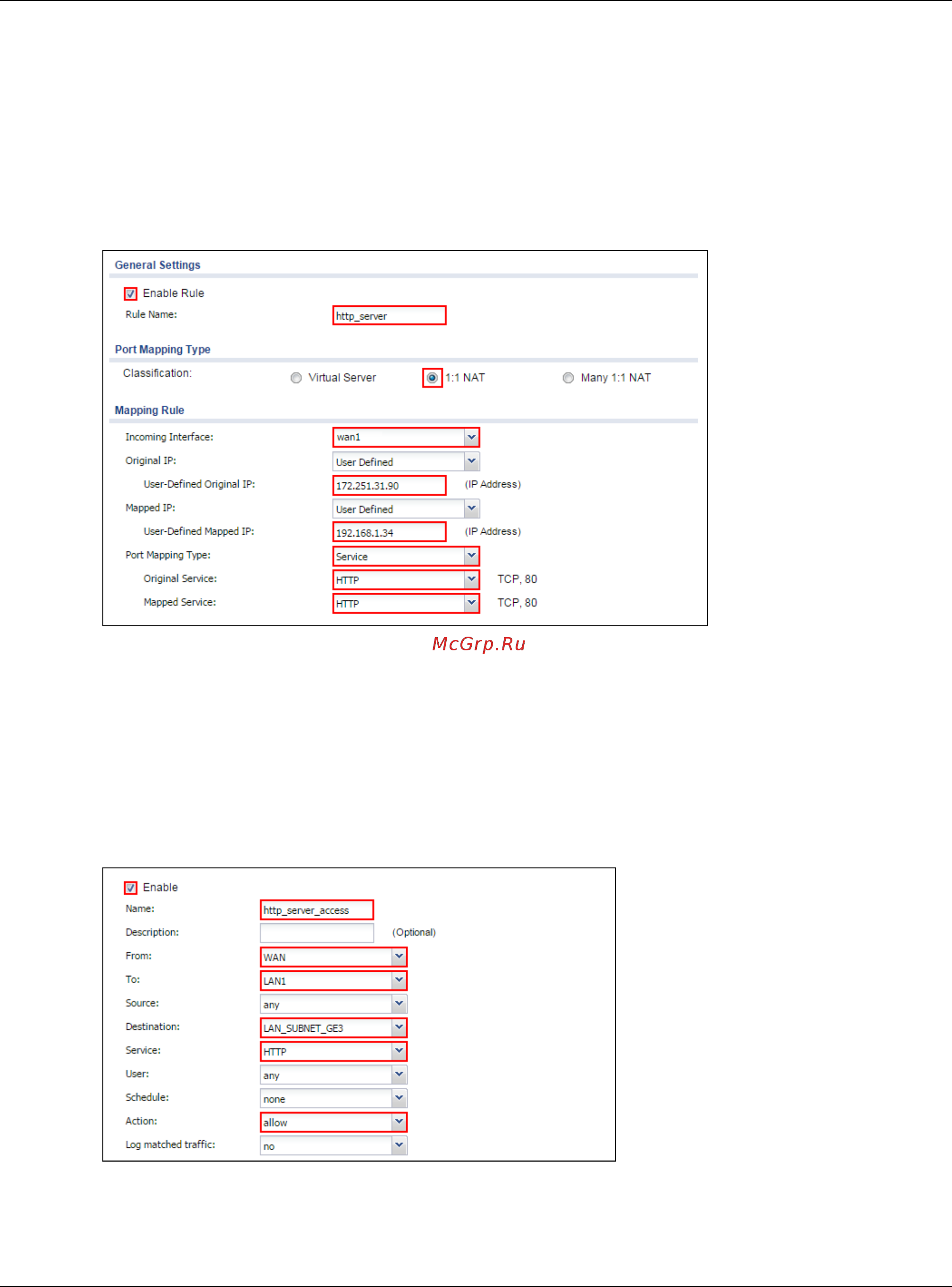

Figure 30 CONFIGURATION > Network > NAT > add NAT
1.4.2 Set Up the Security Policy on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Security Policy > Policy Control > add
corresponding, select Enable. Configure a Name for your to identify the security policy
(http_server_access in this example). Set From: WAN and To: LAN1. Set Destination to the lan
subnet where your server is (LAN_SUBNET_GE3 in this example). Set Service to HTTP, set Action
to allow. Click OK.
Figure 31 CONFIGURATION > Security Policy > Policy Control > add corresponding
