Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
123
4.2.2 Set Up the ZyWALL/USG IPSec VPN Tunnel of Corporate Network
(Branch has a Dynamic IP Address)

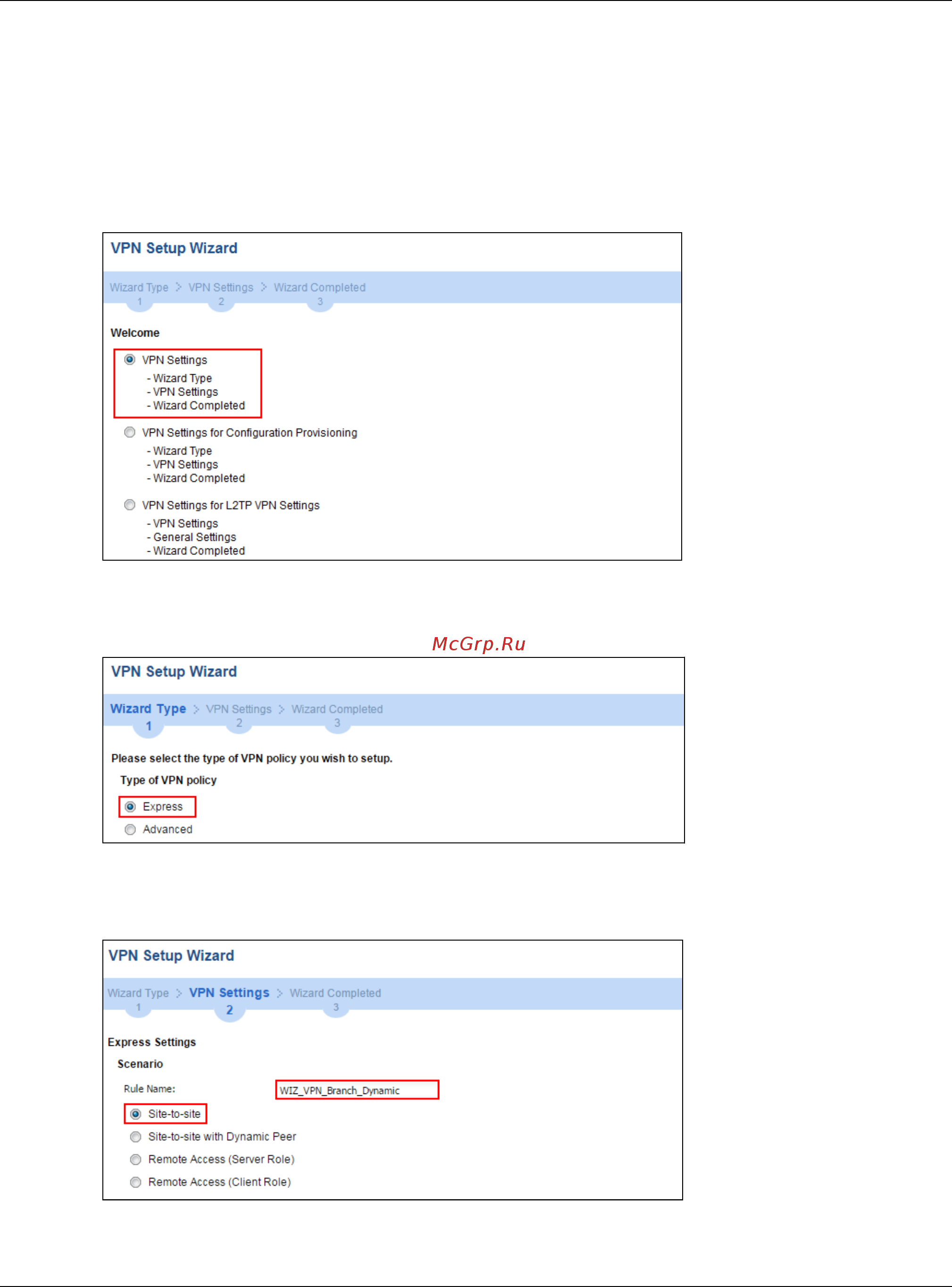

1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN
Settings to create a Site-to-site VPN Rule Name.
Figure 244 Quick Setup > VPN Setup Wizard > Welcome Quick Setup > VPN Setup Wizard
> Welcome
2 Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and to use a
pre-shared key. Click Next.
Figure 245 Quick Setup > VPN Setup Wizard > Wizard Type
3 Type the Rule Name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters. This value is case-sensitive. Click Next.
Figure 246 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings (Scenario)
