Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

211

4.9.5 Spoke_Branch_A

1 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway, select Enable. Type the VPN

Gateway Name used to identify this VPN gateway.

Then, configure the Primary Gateway IP as the Hub_HQ’s wan1 IP address (in the example,

172.16.10.1) and Secondary Gateway IP as the Hub_HQ’s wan2 IP address (in the example,

172.100.110.1). Select Fall back to Primary Peer Gateway when possible and set desired Fall

Back Check Interval time.

Type a secure Pre-Shared Key (8-32 characters) which must match your Hub_HQ’s Pre-Shared

Key and click OK.

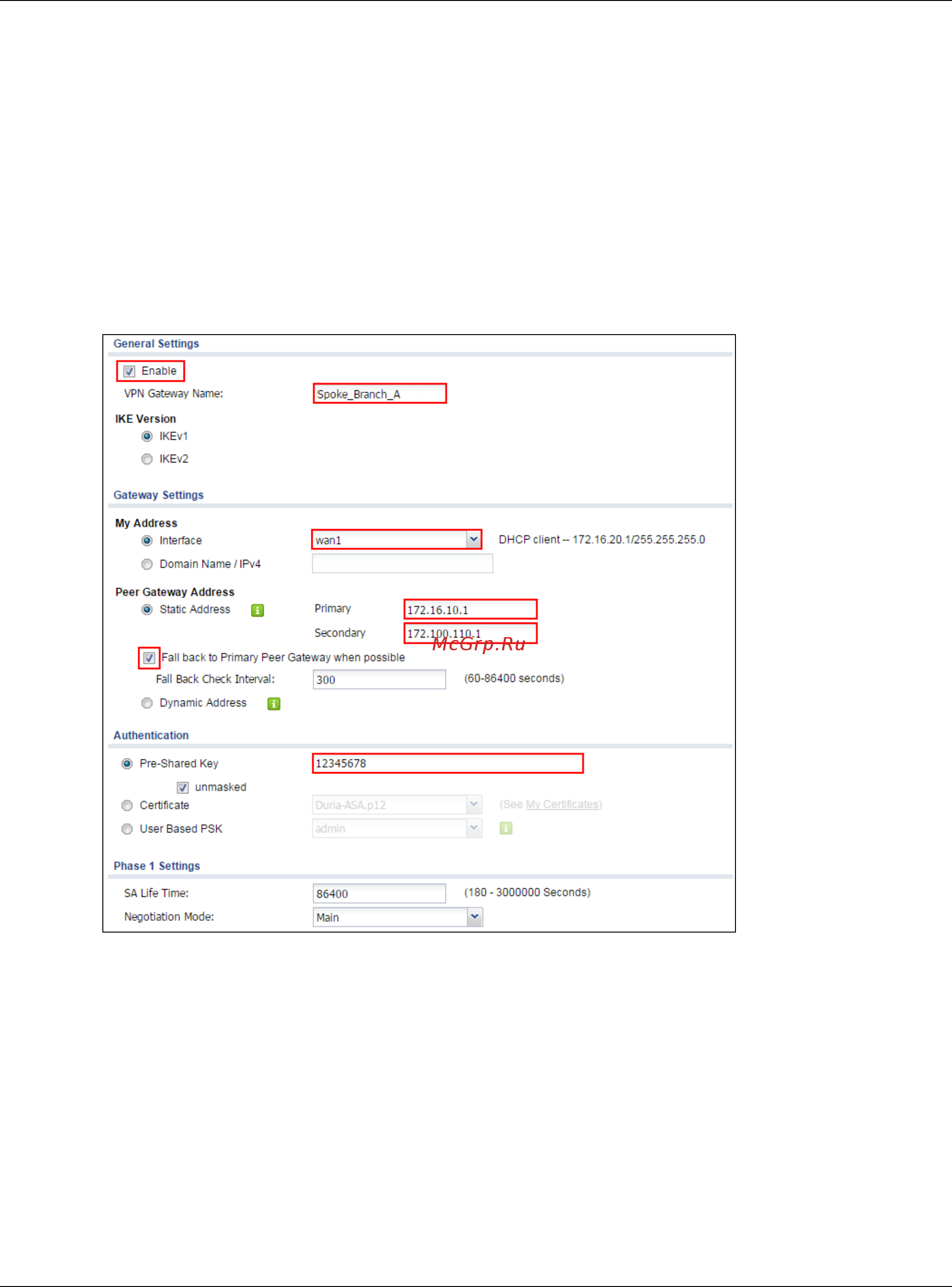

Figure 443 CONFIGURATION > VPN > IPSec VPN > VPN Gateway
