Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
97
3.8.5 Test the Result
1 Type http://www.bittorrent.com/ or http://us.battle.net/d3/en/ into the browser. The error
message occurs.

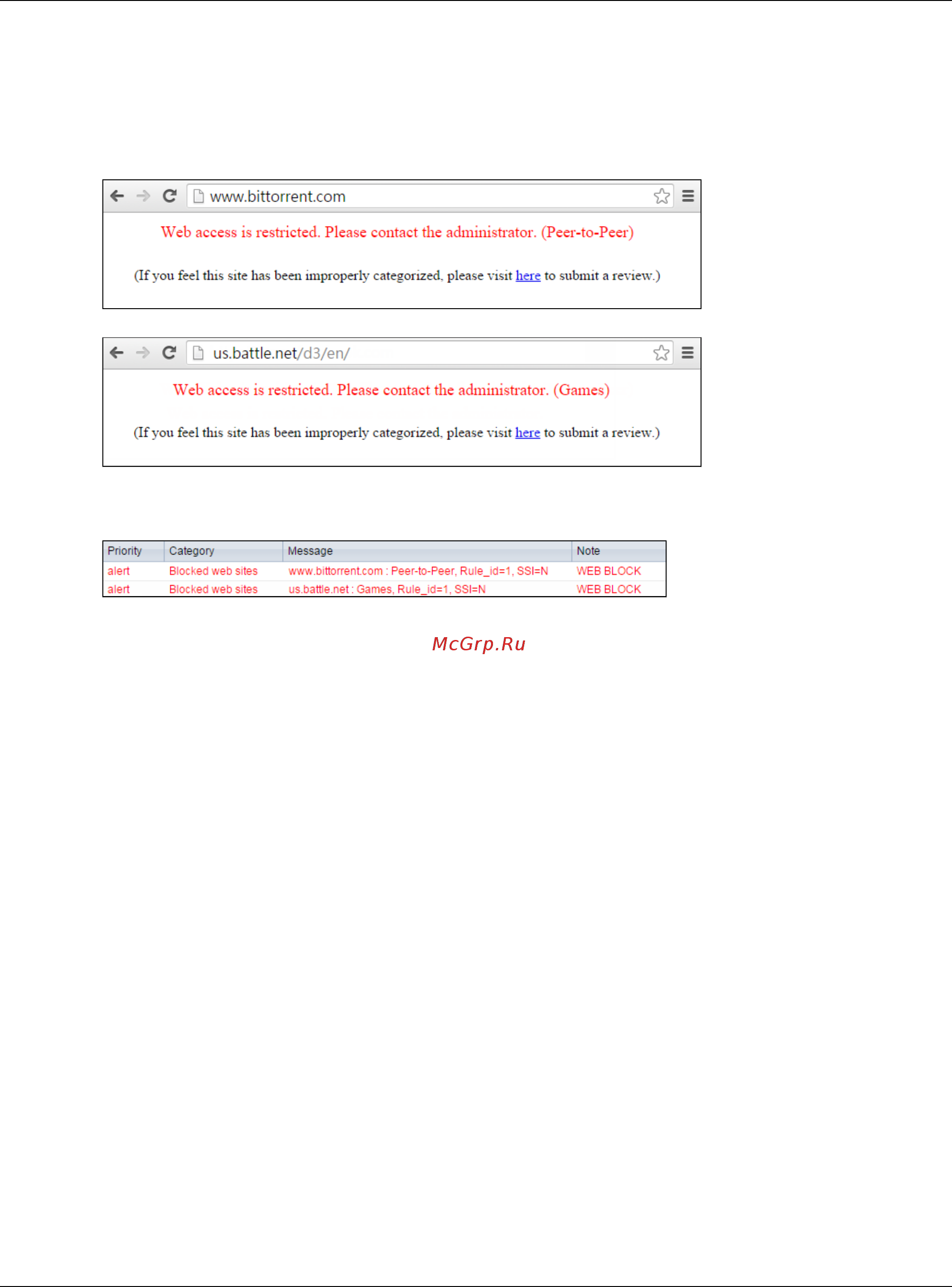

Figure 182 Web Access Is Restricted
Figure 183 Web Access Is Restricted
2 Go to the ZyWALL/USG Monitor > Log to see [alert] log message such as below.
Figure 184 Monitor > Log
3.8.6 What Could Go Wrong?
If you are not be able to configure any Content Filter policies or it’s not working, there are two
possible reasons:
• You have not subscribed for the Content Filter service.
• You have subscribed for the Content Filter service but the license is expired.
You can click the link from the CONFIGURATION > Licensing > Registration screen of your
ZyXEL device’s Web Configurator or click the myZyXEL.com 2.0 icon from the portal page (https://
portal.myzyxel.com/) to register or extend your Content Filter license.
