Chapter 6 Configure IPv6
ZyWALL/USG Series Handbook
289
6.1.3 Set Up the LAN IPv6 Interface on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Network > Interface > Ethernet > lan1.
Select Enable Interface and Enable IPv6. Select Enable Stateless Address Auto-
configuration (SLAAC). Select Enable Router Advertisement and click Add to configure a
network prefix for the LAN1 (2002:1111:1111:1111::/64 in this example). Click OK.

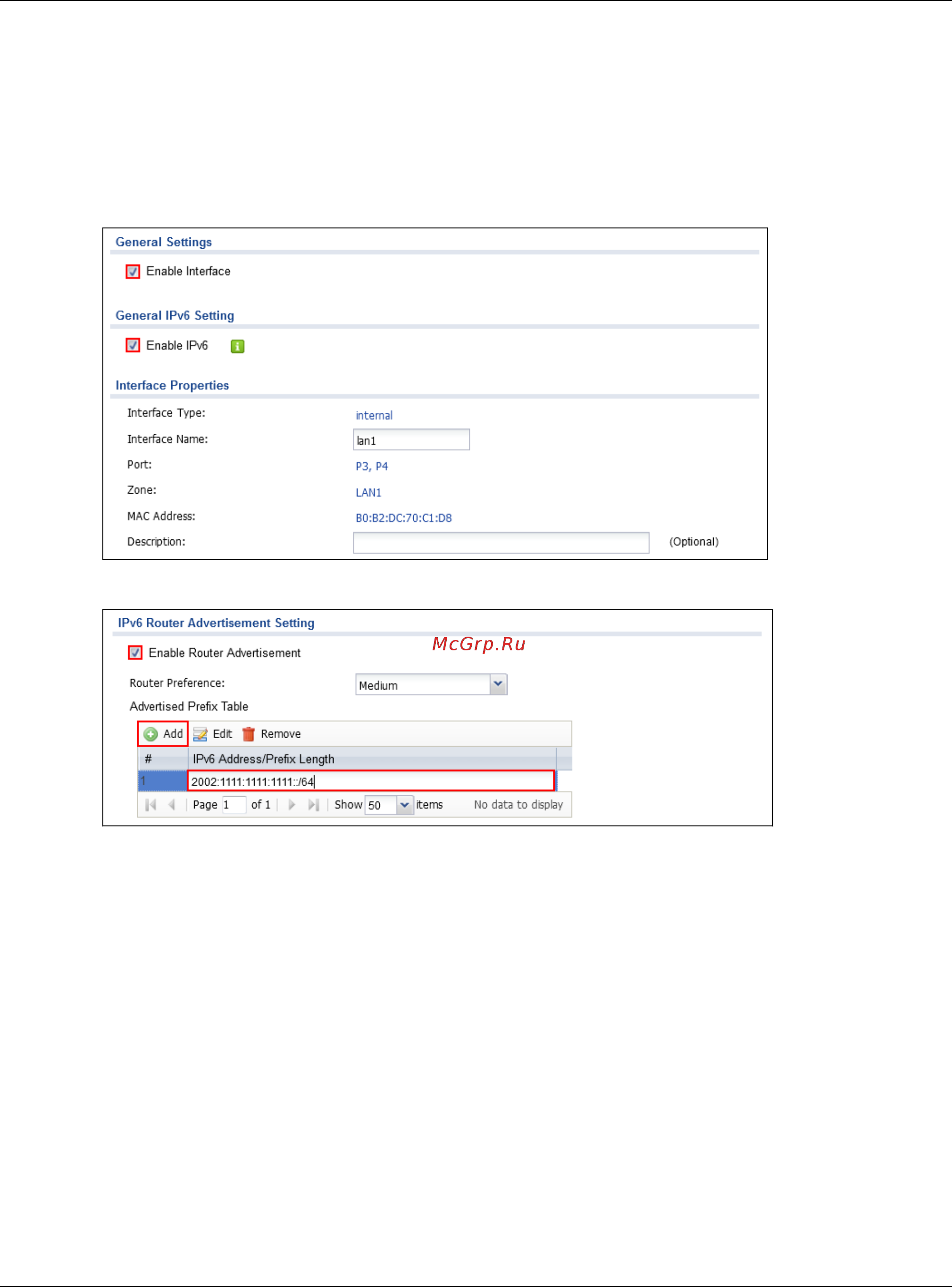

Figure 627 CONFIGURATION > Network > Interface > Ethernet > lan1 > General Settings
Figure 628 CONFIGURATION > Network > Interface > Ethernet > lan1 > IPv6 Router
Advertisement Setting
6.1.4 Test the Result
1 Connect a computer to the ZyWALL/USG’s LAN1.
2 Enable IPv6 support on your computer. In Windows XP, you need to use the IPv6 install command in
a Command Prompt. In Windows 7, IPv6 is supported by default. You can enable IPv6 in the
Control Panel > Network and Sharing Center > Local Area Connection screen
