Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
162
3 In the SonicWALL VPN > Settings > VPN Policies > Proposals > IKE (Phase 1) Proposal and
set Exchange, DH Group, Encryption and Authentication to match your ZyWALL/USG’s VPN
Gateway > Show Advanced Settings > Phase 1 Settings.
Go to IKE (Phase 2) Proposal and set the Protocol, Encryption and Authentication to match
your ZyWALL/USG’s VPN Connection > Show Advanced Settings > Phase 2 Settings.

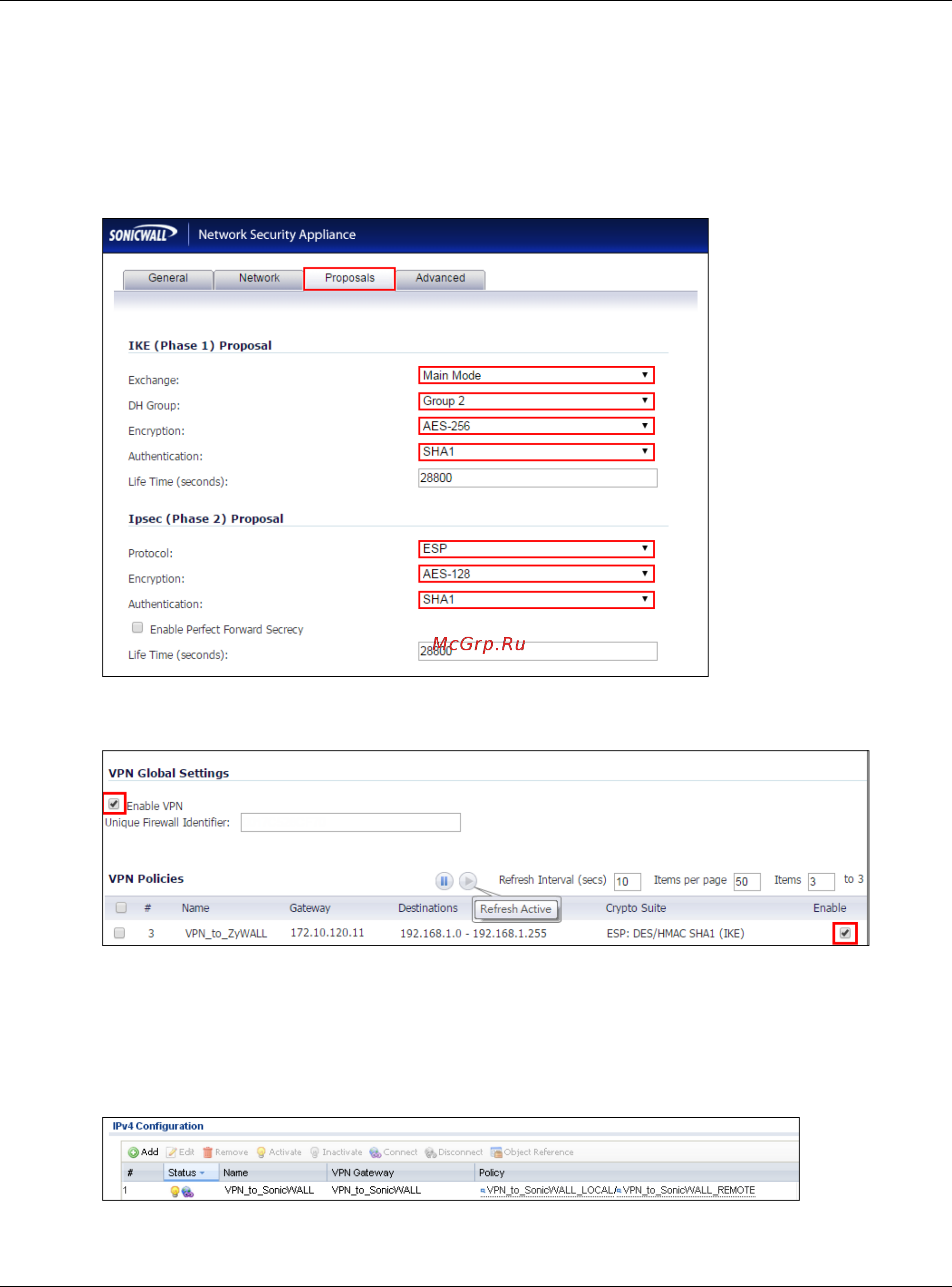

Figure 336 VPN > Settings > VPN Policies > Proposals
4 Select Enable VPN and click Refresh Active.
Figure 337 VPN > Settings > VPN Global Settings
4.6.3 Test the IPSec VPN Tunnel
1 Go to ZyWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click Connect
on the upper bar. The Status connect icon is lit when the interface is connected.
Figure 338 CONFIGURATION > VPN > IPSec VPN > VPN Connection
